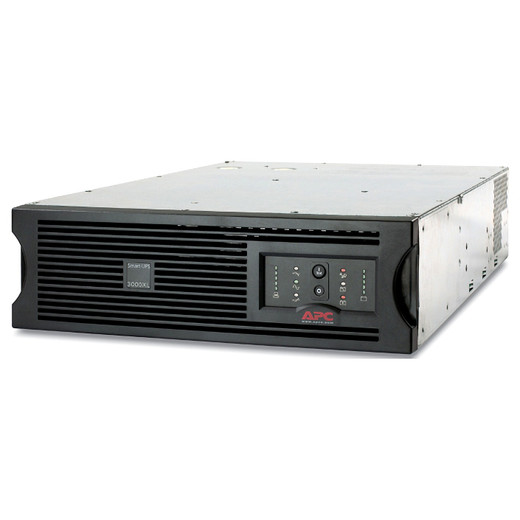

APC Smart-ups XL 3000VA RM 3U 230V - SUA3000RMXLI3U

APC by Schneider Electric SUA3000RMXLI3U Smart-UPS XL 3000VA Rack UPS

Overview

The APC Smart-UPS XL SUA3000RMXLI3U is a 3000VA / 2700W line-interactive rack UPS in a 3U 19-inch form factor, built for 230V environments where clean, reliable power is non-negotiable. Whether you're protecting a mid-size NVR stack, a network closet, or a rack of edge servers, this unit delivers pure sinewave output, automatic voltage regulation, and RS-232/USB management in a package that fits standard 19-inch racks without taking excessive rack real estate. The rack mounting kit is included, so there's no scrambling for hardware at install time.

Line-interactive topology means the SUA3000RMXLI3U actively conditions voltage on every cycle — not just during outages. Brownouts, sags, and over-voltages are corrected before they reach connected equipment, without switching to battery. That matters for load-sensitive gear like IP cameras, NVRs, and managed switches that can misbehave or lose configuration on dirty power even when they never fully lose power.

Key Features

• 2700W / 3000VA Power Capacity: At 2.7 kW true output, this unit handles a dense rack load — a 16-channel NVR with drives, a PoE switch, and several edge appliances can co-exist without headroom anxiety. Size the load at 70–80% of capacity for best runtime and battery longevity.
• Pure Sinewave Output: Active PFC power supplies — common in modern servers and NVRs — require a true sinewave input to operate correctly. Simulated or stepped-sinewave UPS units cause audible buzzing and can shorten PSU life. The SUA3000RMXLI3U outputs clean sinewave regardless of utility quality.
• Automatic Voltage Regulation (AVR): Input range of AC 160–286V (adjustable down to 151–302V) is corrected to a stable AC 220/230/240V ±5% output without battery intervention — an important spec in regions with wide utility fluctuation.
• 1x IEC C19 + 8x IEC C13 Output Connectors: The C19 outlet handles high-draw devices (dense switches, 2U servers) while the eight C13 outlets cover the rest of the rack. Nine switched outlets total gives meaningful flexibility for mixed-load racks without daisy-chaining PDUs.
• RS-232 and USB Management Interfaces: Both ports are present for local serial or USB-connected management, and the included serial and USB cables mean you're ready to configure PowerChute or third-party monitoring out of the box. No separate cable kit required.
• SmartSlot Expansion: One open SmartSlot accepts optional APC network management cards, enabling SNMP-based remote monitoring, scheduled shutdowns, and integration with enterprise power management platforms. The slot is free from the factory — add the card when your infrastructure warrants it.
• 480J Surge Energy Rating with Circuit Breaker Protection: The 480-joule surge rating handles typical utility transients, and the circuit breaker (not a fuse) allows fast field reset without replacing consumables.
• 53 dBA Sound Emission: In a data center or wiring closet, 53 dBA is background-level. In a wall cabinet in a quiet office, it's audible during alarm events — factor this into placement decisions.
• Internal Lead Acid Battery — 3-Hour Recharge: Sealed VRLA cells recharge to full within 3 hours after a deep discharge, which matters for sites with frequent short outages. Runtime at full 2700W load is approximately 5.4 minutes — sufficient for a controlled shutdown sequence, not for extended ride-through.
• 0–95% Non-Condensing Humidity, 104°F Max Operating Temperature: Designed for controlled indoor environments. Don't install in unconditioned spaces or near heat-producing equipment without verified airflow — 104°F is the ceiling, not the target.

Integration & Compatibility

The SUA3000RMXLI3U ships with three input connector options — IEC 60320 C20, BS 1363, and CEE 7/7 — giving it broad compatibility with rack PDUs and regional outlet formats common across European and international 230V environments. Compliance with C-Tick, GOST, UL 1449, VDE, EN 50091-1, and EN 50091-2 means it satisfies the regulatory requirements of most commercial deployments without additional certification paperwork.

The open SmartSlot accepts APC's AP9630/AP9631 network management cards for full SNMP/web-based remote management, enabling integration with network management platforms and enterprise monitoring stacks. The RS-232 DB-9 management port pairs directly with a host running PowerChute software for automated graceful shutdown. Drivers and utilities software is included.

For security integrators specifying rack UPS solutions alongside camera systems and NVRs, the SUA3000RMXLI3U fits cleanly into standard 3U rack space with the included mounting kit. Pairing it with a compatible APC by Schneider Electric network management card extends the deployment to full remote power visibility — useful in unmanned equipment rooms. Review the power planning guide to size runtime requirements correctly before deployment. Consider supplementing with APC external battery packs in the same family if your site needs more than 5 minutes of ride-through at full load.

What's in the Box

• 1x APC Smart-UPS XL 3000VA RM 3U 230V UPS unit
• 1x Rack mounting kit
• 1x Serial cable (external)
• 1x USB cable (external)
• 1x Power cable (6 ft)
• Drivers & Utilities software

Frequently Asked Questions

Q: What is the runtime of the SUA3000RMXLI3U at full load?

A: At full 2700W load, runtime is approximately 5.4 minutes — enough for a controlled, graceful shutdown sequence. For longer ride-through, reduce the connected load or add compatible APC external battery packs.

Q: Does the SUA3000RMXLI3U support remote network management?

A: Not out of the box, but it includes one free SmartSlot that accepts optional APC network management cards (such as the AP9630 or AP9631), enabling SNMP and web-based remote management once the card is installed. Local RS-232 and USB management are available without any add-on.

Q: What output waveform does the SUA3000RMXLI3U produce?

A: Pure sinewave. This is essential for loads with active PFC power supplies (modern servers, NVRs, and network switches), which can malfunction or be damaged by simulated/stepped-sinewave UPS units during battery operation.

Q: What is the input voltage range the SUA3000RMXLI3U can accept without switching to battery?

A: The automatic voltage regulation (AVR) handles an input range of AC 160–286V (adjustable to AC 151–302V), correcting to stable 230V output without using battery power. This protects connected equipment during brownouts and over-voltage events common in 230V utility environments.

Q: What warranty does the SUA3000RMXLI3U carry?

A: APC provides a limited 2-year manufacturer warranty on the SUA3000RMXLI3U.

Q: How many output outlets does the SUA3000RMXLI3U provide, and what types?

A: Nine total: one IEC 60320 C19 (for higher-draw devices) and eight IEC 60320 C13 outlets, covering the full range of rackmount equipment common in security and IT infrastructure racks.
