APC Smart-ups X Line Interactive 2200VA Rack/tower Convertible 2U 100V-127V - SMX2200RMLV2U

APC by Schneider Electric SMX2200RMLV2U Smart-UPS X 2200VA 2U Rack/Tower Line Interactive UPS

Overview

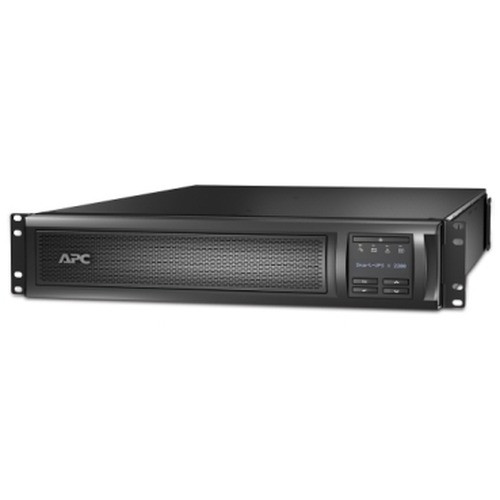

The APC Smart-UPS X SMX2200RMLV2U is a 2200VA / 1980W line interactive uninterruptible power supply in a 2U rack/tower convertible chassis. It is built for commercial infrastructure environments — network closets, security head-end rooms, mid-size server deployments, and surveillance recording stacks — where a momentary power interruption or voltage anomaly means lost footage, corrupted data, or a failed failover. The SMX2200RMLV2U accepts a wide 70–153V input range, so it holds output stable through brownouts and swells that would crash a lesser supply, and its 4ms transfer time means most connected equipment never even registers a switch to battery. With the convertible rack/tower form factor, it fits a 2U slot in a standard 19-inch rack or stands upright on a shelf — useful when rack space is tight or the deployment evolves.

Key Features

• 2200VA / 1980W Capacity: At 1980W real power output, the SMX2200RMLV2U can carry a dense NVR stack, PoE switch, and supporting network gear simultaneously without approaching its limits. Running at 50–60% of rated capacity extends battery life and reduces thermal stress — plan your connected load accordingly rather than maxing the UPS out.
• 4ms Transfer Time: Switching from line to battery in 4 milliseconds is fast enough that virtually all ATX power supplies and server-class equipment will not drop or reboot. For NVRs and recording servers, this is the number that matters most — a slower transfer time (10ms+) risks a momentary output dip that triggers a hard shutdown.
• Wide Input Voltage Range (70–153V): The ability to regulate across 70–153V AC without switching to battery means the SMX2200RMLV2U absorbs most building-level voltage instability silently. In older facilities or sites with variable utility quality, this range prevents unnecessary battery cycling that shortens battery service life.

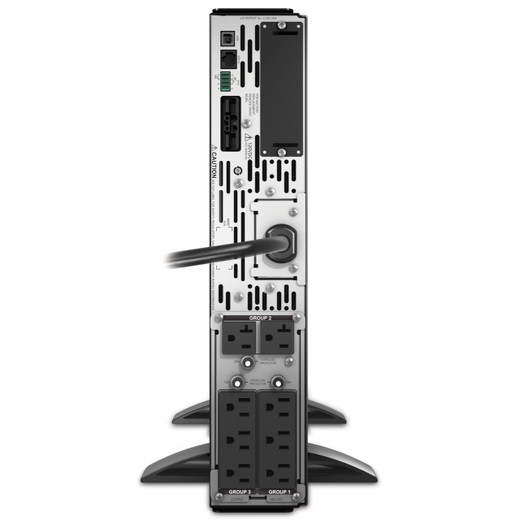

• 8 Protected Outlets — Mixed 5-15R and 5-20R: Six NEMA 5-15R outlets cover standard IT and peripheral loads; two NEMA 5-20R outlets handle higher-draw equipment (dedicated recording servers, high-wattage switches). The mix eliminates the need for adapter dongles for most rack deployments.
• 540 Joule Surge Energy Rating: The surge suppression stage absorbs up to 540 joules of transient energy — adequate for typical commercial building environments. This is not a substitute for whole-building surge protection at the service entrance, but it handles downstream transients that reach the rack.
• 10-Minute Full-Load / 25-Minute Half-Load Runtime: At full 1980W load you get approximately 10 minutes on battery — enough for a controlled shutdown sequence on most NVR and server platforms. At half load (~990W), runtime extends to roughly 25 minutes, which is relevant if you stagger your connected load or design the UPS to run non-critical gear at lower draw.
• 3-Hour Recharge Time: After a full discharge, the sealed lead-acid battery pack returns to full charge in approximately 3 hours. In environments with recurring outages (storm-prone regions, unreliable utility), fast recharge reduces vulnerability windows between events.
• Smart-Slot Expansion Interface: The single Smart-Slot accepts APC network management cards and environmental monitoring modules — add remote monitoring, SNMP visibility, or automated shutdown signaling to a connected server without replacing the UPS itself. This is the right upgrade path for managed deployments where the facilities team needs remote visibility into UPS status.
• Sealed, Maintenance-Free Lead-Acid Battery: The spill-proof, maintenance-free battery chemistry means no electrolyte checks or venting requirements. The unit is designed for standard indoor environments without special battery enclosure requirements. Replacement cartridges are identified as APCRBC117 / APCRBC117J — a user-replaceable hot-swap design on this platform avoids scheduling downtime for battery service.
• 50/60 Hz Auto-Sensing Input: Automatic frequency sensing at ±3 Hz tolerance means the unit adapts to both 50Hz and 60Hz utility feeds without manual configuration — relevant if the same UPS model is deployed across facilities in different regions.
• Certifications: The SMX2200RMLV2U carries UL 1778, FCC Part 15 Class A, CSA, TUV, BSMI, NOM, VCCI Class A, EN 55022 Class A, EN 50091-2, and UL 1449 listings. For installations requiring documented agency compliance — government facilities, healthcare-adjacent deployments, or sites with AHJ review — this certification set covers the major North American and international marks.

Integration and Compatibility

The NEMA L5-30P input plug requires a matching twist-lock receptacle at the PDU or panel circuit — verify your rack PDU or wall outlet before ordering, as this is a locking connector, not a standard 5-15P. For power protection and UPS deployments in surveillance head-ends, pair this unit with an enterprise PoE switch and NVR on protected outlets, reserving the two 5-20R ports for the highest-draw devices. The Smart-Slot accepts APC's AP9630/AP9631 network management cards for SNMP/web monitoring — consult the APC by Schneider Electric product family for compatible management cards and extended battery modules. The SMX2200RMLV2U fits a standard 19-inch rack in 2U and also converts to tower orientation for non-rack installations. For guidance on sizing UPS capacity to your recorder and switch load, see the power planning and UPS sizing guide. The unit's 84.6 lb weight should factor into rack load calculations — verify your rack's weight rating before mounting, particularly in wall-mount or lighter open-frame configurations. The REACH environmental certification confirms compliance with EU substance restrictions for installations in regulated environments.

Frequently Asked Questions

Q: What input plug does the SMX2200RMLV2U use, and what receptacle does it require?

A: The SMX2200RMLV2U uses a NEMA L5-30P twist-lock input plug. You will need a matching L5-30R receptacle at your PDU or wall circuit. This is not a standard 5-15P or 5-20P plug — verify your rack PDU or panel before ordering.

Q: How long will the SMX2200RMLV2U run on battery at full load?

A: At full 1980W load, expected runtime is approximately 10 minutes. At half load (around 990W), runtime extends to approximately 25 minutes. These are manufacturer-published estimates; actual runtime depends on battery age, temperature, and connected load profile.

Q: Can the SMX2200RMLV2U be rack-mounted and tower-mounted?

A: Yes. The chassis is convertible — it installs in a standard 19-inch rack as a 2U unit or stands in tower orientation on a flat surface. The conversion hardware is included with the unit.

Q: What battery does the SMX2200RMLV2U use, and can I replace it myself?

A: The SMX2200RMLV2U uses APC replacement battery cartridge APCRBC117 (or APCRBC117J). The sealed lead-acid battery is maintenance-free and designed for user replacement, which means you can swap the battery pack without scheduling a service call or taking the UPS offline permanently.

Q: Does the SMX2200RMLV2U support remote network monitoring?

A: Yes, via the onboard Smart-Slot expansion interface. Installing an APC network management card (such as the AP9630 or AP9631) adds SNMP and web-based remote monitoring, automated server shutdown signaling, and environmental sensor support. The base unit ships without a management card — it must be purchased separately.

Q: What certifications does the SMX2200RMLV2U carry?

A: The SMX2200RMLV2U is listed to UL 1778, UL 1449, FCC Part 15 Class A, CSA, TUV, BSMI, NOM, VCCI Class A, EN 55022 Class A, and EN 50091-2. It also carries REACH environmental certification.

Jerry Tildsen

The SMX2200RMLV2U earns its place in commercial security head-ends primarily because of its 4ms transfer time combined with the 70–153V input regulation window — in practice, most installations I see fail the battery-runtime question first, but the deeper risk is the equipment never making it to battery at all because of a slow transfer. At 4ms, you are well inside the hold-up time of virtually every ATX and server-class PSU in the field.

Technical Highlights:

• 70–153V Input Range: This is a wider window than typical consumer UPS units. In facilities with aging electrical infrastructure or shared-circuit loading, the UPS absorbs voltage variance silently rather than cycling the battery on every sag — which meaningfully extends battery service intervals.
• 540J Surge + UL 1449 Listing: The combination of onboard surge suppression and UL 1449 listing means the protection stage is tested to a defined clamping standard, not just a marketing joule number. For rack gear downstream of a weak facility surge protection scheme, this matters.
• Smart-Slot with Network Card Support: A single Smart-Slot is the right architecture for a managed deployment — you install the base UPS now and add an AP9630/AP9631 management card when the monitoring requirement is confirmed. No need to overspec the unit at purchase for a capability you may not need immediately.

Deployment Considerations:

• The NEMA L5-30P input is a twist-lock connector — it will not plug into a standard 5-15R or 5-20R wall outlet or PDU. Confirm your panel circuit and rack PDU have the matching L5-30R receptacle before the unit ships. This is the most common installation surprise on this platform.
• At 84.6 lbs, rail-mounting this unit solo is a two-person job. Verify your rack's weight capacity before mounting — particularly in wall-mount enclosed racks rated for lighter loads.

The SMX2200RMLV2U is the right fit for a security operations room or network head-end carrying a 6–12 camera NVR, a managed PoE switch, and a firewall or access control server — where the load runs 800–1400W steady-state and you need the transfer time and input regulation to keep recording uninterrupted through building-level power events.
