APC Smart-ups X Line Interactive 2200VA Rack/tower Convertible 2U 100V-127V - SMX2200RMLVUS

APC by Schneider Electric SMX2200RMLVUS 2200VA Line-Interactive Rack/Tower UPS

Overview

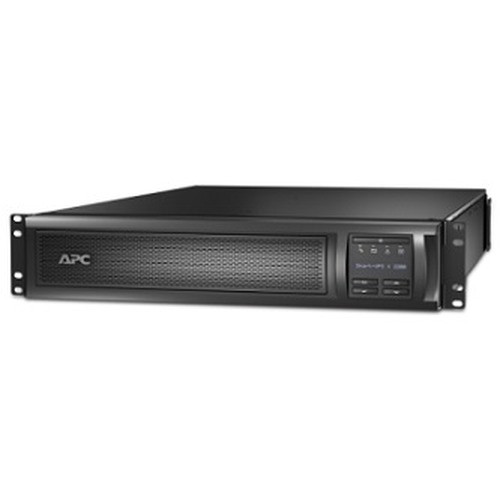

The APC by Schneider Electric SMX2200RMLVUS is a 2200VA / 1980W line-interactive uninterruptible power supply built for small-to-midsize IT infrastructure, network closets, and surveillance recording environments where clean, conditioned power is non-negotiable. It ships in a 2U rack form factor but converts to tower when floor-mounting suits the install — a practical advantage in mixed-use equipment rooms where rack space is tight or unpredictable. Input voltage range spans 70V to 153V, which means the unit rides through common sags and surges on battery, not on runtime, extending battery service life in areas with poor power quality.

Key Features

• True Sine Wave Output: The SMX2200RMLVUS delivers a true sine wave at all load levels — not a simulated or stepped approximation. Active PFC power supplies found in modern servers, NVRs, and network switches require true sine wave on transfer; stepped approximations can cause these loads to fault or behave erratically during outages. If your rack contains any active-PFC equipment, this spec is mandatory, not optional.
• 2200VA / 1980W Capacity: At 1980W real output, this unit supports a meaningful mid-density rack — enough for a 16- or 32-channel NVR, a managed PoE switch, and a patch panel simultaneously. The 90% power factor (1980W / 2200VA) is higher than older-generation UPS designs, translating to less wasted capacity headroom.
• Automatic Voltage Regulation (AVR): AVR corrects input sags and surges to a stable 120V output without switching to battery. In commercial buildings with variable load conditions — HVAC cycling, elevator motors, or shared distribution panels — AVR reduces unnecessary battery cycling and extends runtime battery life measurably.
• Input Voltage Window 70V–153V: The wide operating window (70V min to 153V max) means the UPS handles browndown conditions that would force a narrower-window unit onto battery constantly. In environments with marginal utility feeds or long wire runs, this prevents nuisance transfers that erode battery capacity over months.
• Emergency Power Off (EPO): The EPO port enables integration with building management systems or data center emergency shutdown circuits. In any installation subject to NFPA 75 or local data center compliance requirements, EPO is a code requirement — confirm this is supported before spec'ing a UPS for those environments.
• Web-Based Management: Remote monitoring and configuration via browser means you can check load, battery health, and runtime estimates without a local visit. In distributed security installations with remote equipment rooms, this reduces truck rolls for routine UPS status checks.
• 540J Surge Energy Rating: The integrated surge suppression handles 540 joules of surge energy — adequate for typical indoor utility-coupled surges. For sites with direct lightning exposure or outdoor-fed service entrances, supplement with a dedicated SPD at the panel level; 540J is a secondary protection tier, not primary lightning protection.
• Audible Alarms with On-Battery and Low-Battery Modes: Discrete alarm states — on-battery transfer and low-battery warning — give on-site staff actionable audio cues without requiring VPN access to a management console. This matters in facilities with intermittent IT staffing.
• 55 dB Noise Level: At 55 dB, this unit is audible in a quiet server room but acceptable in a standard IDF closet or equipment room where fan noise already establishes an ambient floor. Avoid placing it in an open office or reception area without enclosure.
• Output THD ≤5%: Output total harmonic distortion under 5% keeps sensitive networking and recording hardware within manufacturer power-quality tolerances. Higher THD can accelerate capacitor aging in power supplies over time.

Integration & Compatibility

The 100V–127V input range targets North American single-phase utility power. The 50/60 Hz auto-sensing input accommodates both 60 Hz domestic and 50 Hz grid environments, which matters for equipment imported from or shared with international deployments. Web-based management integrates with network monitoring platforms via standard protocols — verify SNMP card availability for your NMS if automated alerting is required; a network management card may be an optional add-on for this model. The rack/tower convertible 2U form factor fits standard 19-inch EIA racks without an adapter.

For UPS and power protection planning in surveillance deployments, pair this unit with a load calculation that accounts for inrush current from PoE switches and NVR spinup — both sources of momentary overloads that can trip a UPS sized too tightly. Review the network video recorder lineup for compatible downstream equipment. For broader APC by Schneider Electric power products, see the full APC by Schneider Electric catalog. When planning rack power distribution, a power distribution unit (PDU) downstream of this UPS gives you per-outlet switching and metering. If you're designing a comprehensive surveillance system, centralized power conditioning at the UPS layer is the most cost-effective protection tier for the entire installation.

Frequently Asked Questions

Q: What is the real power output of the SMX2200RMLVUS, and how much load can it support?

A: The SMX2200RMLVUS delivers 1980 watts of real power (2200VA apparent power, 0.9 power factor). That's enough to run a mid-density surveillance rack — a 32-channel NVR, a managed PoE switch, and associated networking gear simultaneously — with runtime depending on actual connected load.

Q: Does the SMX2200RMLVUS produce true sine wave output?

A: Yes. The SMX2200RMLVUS outputs a true sine wave at all load levels, including during battery operation. This is required for servers, NVRs, and network switches with active PFC power supplies, which can fault or behave unpredictably on simulated sine wave output.

Q: Can the SMX2200RMLVUS be used in both rack and tower configurations?

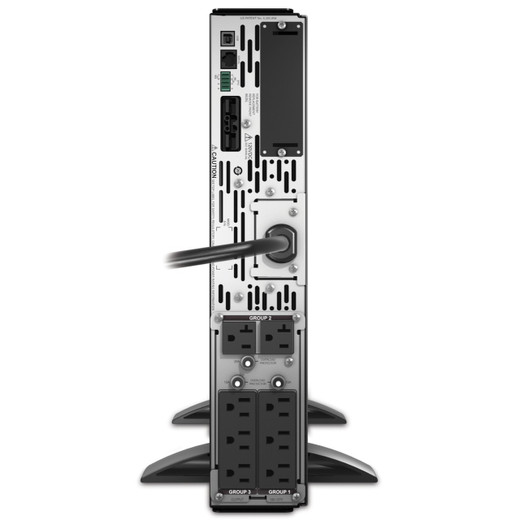

A: Yes. The unit ships in a 2U rack-mount form factor and is field-convertible to tower orientation. This makes it suitable for equipment rooms where rack space is limited or where floor-standing installation is preferred.

Q: What input voltage range does the SMX2200RMLVUS accept?

A: The SMX2200RMLVUS accepts input voltages from 70V to 153V on a 100V–127V nominal circuit. The wide window allows the unit to regulate through brownout conditions using AVR rather than switching to battery, which extends battery service life in areas with poor power quality.

Q: Does the SMX2200RMLVUS support Emergency Power Off (EPO)?

A: Yes. An EPO port is included, enabling integration with building emergency shutdown systems or compliance with NFPA 75 data room requirements. Confirm local code requirements before finalizing your wiring plan.

Q: Does the SMX2200RMLVUS include web-based management?

A: Yes, web-based management is supported. For SNMP-based integration with a network management system or automated alerting, verify whether a separate network management card is required for your specific monitoring platform — consult the APC accessory compatibility list for this model series.

Jerry Tildsen

The SMX2200RMLVUS sits in a useful middle ground for surveillance and network infrastructure deployments — 1980W of real power with true sine wave output on a platform that tolerates input voltages as low as 70V before going to battery. That wide AVR window is the spec I always flag first for integrators working in older commercial buildings or industrial facilities where utility quality is inconsistent. You avoid constant battery cycling, which is the primary killer of UPS battery service life in the field.

Technical Highlights:

• True Sine Wave / Active PFC Compatibility: Every modern NVR and managed switch with an active PFC supply requires true sine wave on battery transfer. The SMX2200RMLVUS delivers it natively — no workaround, no load limitation caveat.
• 70V–153V AVR Input Window: The 83V span of tolerated input voltage is wide enough to handle most brownout conditions without touching the battery. In a 24/7 surveillance installation, that directly translates to fewer battery replacements over the product's service life.
• EPO Port: EPO integration enables this unit to participate in a building-level emergency shutdown sequence — a requirement in any install governed by NFPA 75 or local AHJ data room rules. Wire it early in the design phase, not as an afterthought.

Deployment Considerations:

• At 55 dB operating noise, the SMX2200RMLVUS is not quiet enough for open-office or reception environments. Plan for an enclosed IDF or equipment room installation where ambient fan noise already exists.
• Web-based management is built in, but SNMP integration for automated NMS alerting may require an optional network management card — confirm before finalizing your monitoring architecture, especially for unmanned remote sites.

This unit is well-matched for a mid-density surveillance equipment room running a 32-channel NVR, a 24-port PoE switch, and associated networking gear in a commercial building with variable utility power — the scenario where its AVR range and true sine wave output both earn their keep simultaneously.
