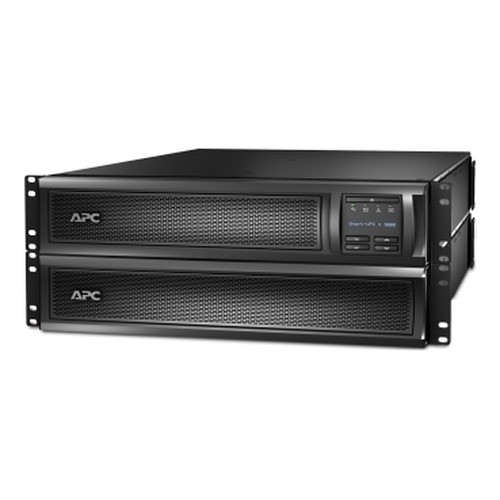

APC Smart-ups X 3000VA Rack/tower - SMX3000RMHV2UNC

APC by Schneider Electric SMX3000RMHV2UNC Rack/Tower UPS 3000VA 230V

Overview

The SMX3000RMHV2UNC is a 3000VA rack/tower convertible uninterruptible power supply from APC's Smart-UPS X line, delivering 230V output for protecting critical network, security, and server infrastructure from power interruptions. Its dual rack/tower form factor means you can deploy it as a 2U rackmount in a data closet or stand it upright in a wiring cabinet — whichever fits your installation — without purchasing separate hardware. For integrators protecting network switches, NVRs, and access control panels, the flexibility to adapt the physical footprint to the cabinet at hand reduces pre-installation planning overhead.

The UPS carries an ECCN classification of 5D992, which is relevant for any projects subject to export control review. California Prop 65 compliance labeling is required, so installations in California-based facilities should note the cancer and reproductive harm warning that ships with the unit.

Key Features

• 3000VA Rack/Tower Convertible Form Factor: The 17-inch form factor installs in a standard 19-inch rack (2U) or stands tower-side in floor cabinets. You are not locked into a single physical configuration at the time of purchase — useful when final cabinet layout is undecided at the quoting stage.
• 230V Output Voltage: Designed specifically for 230V infrastructure — confirm your load equipment operates at 230V before specifying this unit. It is not a dual-voltage or auto-switching model based on available evidence; deploying it on a 120V circuit is not supported.
• Lead-Acid Battery Technology: Internal sealed lead-acid batteries are field-replaceable, keeping the UPS serviceable over its operational life without replacing the entire unit. Lead-acid chemistry provides predictable discharge curves, which simplifies runtime estimation under known loads — a practical advantage when sizing backup duration for a fixed number of cameras or access panels on a UPS and power supply circuit.
• 8-Foot Cord Length: The 8-foot input cord provides enough reach to connect to a PDU or wall outlet without a cord extension in most rack and wiring closet configurations, reducing the need for additional cable management hardware.
• Smart-UPS X Platform: The Smart-UPS X line from APC by Schneider Electric is a commercial-grade UPS platform used broadly in network closets, security head-end rooms, and edge compute deployments. The SMX3000RMHV2UNC sits in the mid-range of the line by VA rating — appropriate for protecting moderate-density rack loads rather than high-density compute.
• ECCN 5D992 Classification: This classification applies to commercial items with encryption or security-relevant software features. For projects involving export or re-export to controlled destinations, confirm ECCN applicability with your compliance team before procurement.

Integration and Compatibility

The SMX3000RMHV2UNC is suited for network video recorders, security appliances, and network edge equipment operating on 230V infrastructure. When sizing this UPS for a security deployment, calculate your total connected load in watts (not VA) — at 3000VA, actual watt capacity depends on the power factor of the unit, which is not confirmed in available evidence; consult the manufacturer datasheet to confirm wattage before finalizing a bill of materials. For managed power distribution and deeper integration with building management or DCIM platforms, verify management card options within the Smart-UPS X family against your VMS or BMS requirements.

Battery runtime at a given load is not confirmed from available evidence — do not specify runtime guarantees for this SKU without referencing the manufacturer's published runtime curves. Lead-acid batteries in this class typically require periodic replacement every 3–5 years depending on ambient temperature and discharge cycles; factor replacement battery cost into the total cost of ownership when comparing against lithium-ion alternatives in the same VA class.

Frequently Asked Questions

Q: What output voltage does the SMX3000RMHV2UNC support?

A: The SMX3000RMHV2UNC is rated for 230V output. Confirm that all connected equipment operates at 230V before deploying this unit.

Q: Can the SMX3000RMHV2UNC be installed in a standard 19-inch rack?

A: Yes. The unit is designed as a rack/tower convertible and installs in a standard 19-inch rack enclosure. The chassis is 17 inches wide, fitting within standard rack bay dimensions.

Q: What type of battery does the SMX3000RMHV2UNC use?

A: It uses sealed lead-acid batteries. These are field-replaceable, allowing battery service without replacing the entire UPS chassis.

Q: Is the SMX3000RMHV2UNC suitable for 120V installations?

A: No. This unit is specified for 230V output. It is not a dual-voltage or auto-switching model. Use it only on 230V circuits.

Q: What is the cord length on the SMX3000RMHV2UNC?

A: The input power cord is 8 feet long, providing standard reach for most rack and wiring closet installations without requiring an extension.

Marty Allison

The SMX3000RMHV2UNC is a 230V-only unit — that single spec is the most important thing to confirm before it goes on a bill of materials. I have seen integrators spec Smart-UPS X units without checking the voltage suffix, and a 230V UPS on a 120V circuit is a dead unit on day one. Get the voltage right first, then size the load.

Technical Highlights:

• 230V Output: Correct for international and select domestic 230V infrastructure. Non-negotiable — this is not a selectable or auto-sensing voltage; the unit is fixed at 230V output.
• Lead-Acid Battery: Field-replaceable sealed lead-acid chemistry means the UPS can be serviced in place. Plan for battery replacement intervals in your maintenance schedule — ambient temperature above 25°C meaningfully shortens lead-acid service life.
• Rack/Tower Convertible at 17-inch Width: Fits a standard 19-inch rack bay with room for cable management on both sides. The tower option is useful in wiring closets that lack rack infrastructure — common in smaller branch or retail security deployments.

Deployment Considerations:

• Confirm wattage capacity from the manufacturer datasheet before finalizing load calculations — VA rating alone does not tell you how many watts of load this unit will carry, which depends on the published power factor for this model.
• The ECCN 5D992 classification requires a compliance review if this unit is being exported or re-exported. Flag this with your legal or trade compliance team before international project procurement.

This UPS is a practical fit for a 230V security head-end room or network edge closet where you need rack or tower flexibility and a field-serviceable battery — specifically in European, Middle Eastern, or Asia-Pacific deployments where 230V infrastructure is standard.
