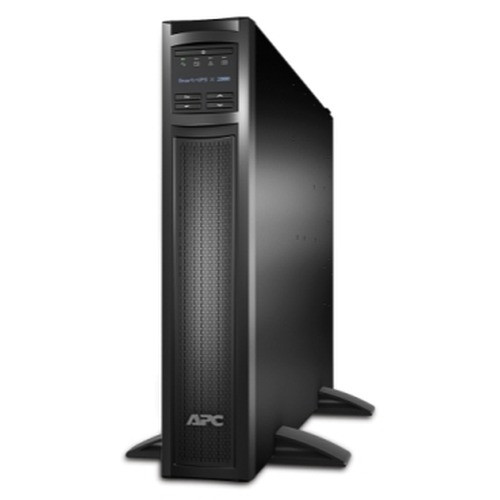

APC Smart-ups X 2000VA Rack/tower- Line-interactive - 120 V - 1800WATT - Serial - SMX2000RMLV2U

APC by Schneider Electric SMX2000RMLV2U 2000VA Rack/Tower Line-Interactive UPS

Overview

The APC Smart-UPS X SMX2000RMLV2U is a 2000VA / 1800W line-interactive uninterruptible power supply designed for server rooms, network closets, and security infrastructure deployments where power quality and runtime flexibility matter. It ships in a rackmount/tower convertible form factor — meaning you can commission it as a 2U rack appliance or stand it upright on the floor next to a tower without buying a separate chassis. Efficiency sits at 98%, which is meaningful when the unit is running continuously under partial load: at that figure, waste heat and operating cost stay low enough that most facilities managers won't flag it during annual power audits.

Line-interactive topology puts this UPS in the right tier for critical surveillance NVRs, access control servers, and edge computing nodes — it actively regulates voltage fluctuations between 75V and 154V without switching to battery, so your equipment sees clean 120V AC even when the utility is sagging or spiking. Battery draw is reserved for actual outages and deep excursions, extending battery life and reducing replacement frequency compared to on-line double-conversion units that run batteries harder.

Key Features

• 1800W / 1.92 kVA Output: Sized for a loaded 2U rack segment — enough headroom to protect a mid-range NVR, a PoE switch, and an access control server simultaneously without riding the thermal ceiling.
• 98% Operating Efficiency: At near-unity efficiency, this unit adds roughly 2% in heat load relative to what your protected equipment already generates. In a sealed comms room or IDF closet, that's a real factor — less cooling demand means the UPS pays for itself partially in reduced HVAC load over a three-to-five year cycle.
• 75V–154V Input Range: The 79-volt input window means the SMX2000RMLV2U stays on utility power through voltage sags that would force a narrower-tolerance UPS onto battery. For facilities in areas with unstable grid voltage — older industrial parks, rural sites, buildings with heavy motor loads — this range prevents battery drain during routine utility fluctuations.
• 7 AC Outlets (NEMA 5-15R and 5-20R Mix): The outlet complement covers both standard 15A loads and higher-draw 20A devices without an adapter. Practical for mixed loads: NVR on a 5-20R circuit, switch and patch panel accessories on 5-15R ports.
• 540J Surge Energy Rating: Adequate for transient protection on protected downstream equipment. Not a substitute for a dedicated surge panel on incoming service, but provides last-line defense against conducted transients on the output side.
• 3-Hour Recharge Time: VRLA battery reaches full charge within three hours of a deep discharge. For sites that experience occasional brief outages, this means the unit is typically ready again within a half-shift without manual intervention.
• Emergency Power Off (EPO): EPO support allows integration with building management systems or data center EPO circuits — required in many jurisdictions for UPS installations in occupied rack rooms above a certain kVA threshold. Wire it to your facility's EPO bus during commissioning.
• 55 dB Noise Level: Audible but not disruptive at standard office-adjacent or IDF-room distances. If the UPS is installed in an open office or behind a thin partition, note that 55 dB at load is comparable to a running ceiling fan — plan accordingly, or locate it in a dedicated closet.
• Output THD ≤5%: Clean output waveform keeps sensitive electronics — particularly switching power supplies and active PFC power supplies in modern servers — out of the harmonic distortion range that causes premature component wear.
• Rack/Tower Convertible Form Factor: Deploying in a new rack? Mount it 2U. Retrofitting an existing tower server closet? Stand it upright. No conversion kit purchase required — form factor flexibility is built in.
• Audible Alarm with Serial Interface: The onboard audible alarm signals state changes (on-battery, low battery, overload) locally. The serial interface supports management integration with software that reads UPS status — relevant for facilities teams running centralized power management consoles.

Integration and Compatibility

The SMX2000RMLV2U operates on 120V / 50-60 Hz input, making it compatible with standard North American branch circuits. The NEMA 5-15R and 5-20R outlet mix accommodates the majority of rack-mounted network and security equipment without custom cabling. The Emergency Power Off interface connects to standard EPO bus wiring used in commercial data center and IDF room construction. The serial management port provides basic UPS status communication for power management software environments.

For power protection and UPS deployments alongside network infrastructure, pair this unit with a managed PoE network switch to ensure your entire edge security stack — cameras, access control, intercoms — stays powered through utility interruptions. If you are sizing a full surveillance installation, the NVR selection and its power draw should anchor your load calculation before specifying this UPS. Review the APC by Schneider Electric product line for complementary power management and PDU options that integrate with the same management ecosystem. For guidance on calculating runtime and load sizing, consult a power protection buying guide before committing to a UPS capacity tier.

Frequently Asked Questions

Q: What is the maximum load the SMX2000RMLV2U can support?

A: The SMX2000RMLV2U supports up to 1800W (1.92 kVA) of connected load. For reliable runtime and to avoid thermal stress, target 60–80% of rated capacity under normal operating conditions.

Q: Can the SMX2000RMLV2U be used in both rack and tower configurations?

A: Yes. The unit ships as a rack/tower convertible and can be installed in a standard 2U rack position or oriented vertically as a tower — no additional conversion hardware is required.

Q: What input voltage range does the SMX2000RMLV2U tolerate before switching to battery?

A: The unit operates on utility power across an input range of 75V to 154V. Voltage within that window is regulated without drawing on battery, which preserves battery life during routine utility fluctuations.

Q: Does the SMX2000RMLV2U support Emergency Power Off integration?

A: Yes. The SMX2000RMLV2U includes EPO (Emergency Power Off) support for integration with building management systems or facility-level EPO circuits, as required in many commercial and data center installations.

Q: How long does the battery take to recharge after a full discharge?

A: The sealed lead-acid (VRLA) battery returns to full charge within approximately 3 hours following a deep discharge cycle.

Q: What outlet types are available on the SMX2000RMLV2U?

A: The unit provides 7 AC outlets total, comprising a mix of NEMA 5-15R (standard 15A) and NEMA 5-20R (20A) receptacles to accommodate both standard and higher-draw rack equipment without adapters.

James Everett

The SMX2000RMLV2U is one of the few UPS units in the sub-2kVA rack segment where the 98% efficiency rating actually matters operationally — not just as a marketing number. At 1800W full load, you are losing roughly 36W to heat. That is the difference between a closet that self-manages thermally and one that starts throttling gear on a warm afternoon. I specify this unit regularly for IDF closets and edge security racks where HVAC is undersized and every watt of waste heat is a problem.

Technical Highlights:

• 79-Volt Input Window (75V–154V): This is the specification that separates this unit from budget UPS hardware in field conditions. Sites with motor-heavy utility feeds regularly see sags into the 90V range — the SMX2000RMLV2U handles those on utility power rather than draining the battery, which directly extends VRLA service life.
• Output THD ≤5%: Modern NVR and server power supplies with active PFC are sensitive to output waveform quality. At 5% THD max, this UPS keeps connected equipment in the clean power envelope those supplies require — you avoid the efficiency derating and audible noise that comes from running active PFC supplies on stepped-approximation waveforms.
• EPO Interface: Facilities with commercial data center compliance requirements (NFPA 75/76 or local AHJ mandates) need a UPS that connects to the building's EPO bus. The SMX2000RMLV2U supports that wiring — plan the EPO circuit during rough-in, not after the rack is loaded.

Deployment Considerations:

• The 3-hour recharge window is based on a deep discharge. If your site experiences repeated short outages in sequence — brownout cycles during utility restoration — the battery may not reach full charge between events. Size runtime conservatively and consider runtime extension modules if the site has a history of rolling outages.
• At 55 dB under load, this unit is not silent. If the rack is in a shared workspace or adjacent to a quiet office environment, mount it in an enclosed rack with acoustic foam lining or locate it in a dedicated comms room — 55 dB is noticeable at conversational distances.

For a mid-density surveillance rack — an NVR, a managed PoE switch, and an access control appliance — the SMX2000RMLV2U lands in exactly the right capacity band: enough headroom for the full stack, not over-specified to the point where you are paying for kVA you will never use. It is the right specification for an enterprise security edge deployment where power quality, not just runtime, is the protection objective.
