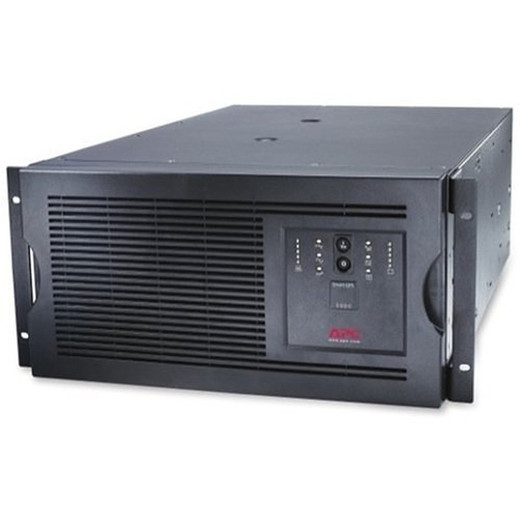

APC by Schneider Electric SUA5000RMI5U 5000VA Rack-Mount UPS
Overview
The APC by Schneider Electric SUA5000RMI5U is a 5000VA / 4000W rack-mount uninterruptible power supply designed for 230V commercial and industrial environments. At 5U, it fits standard 19-inch equipment racks and delivers the power headroom that critical infrastructure — servers, NVRs, network switches, and access control panels — demands when the grid fails. For integrators specifying power protection in a security or IT deployment, this is the unit to consider when you need substantial wattage in a form factor that lives in the rack alongside the equipment it protects.
Key Features
- 5000VA / 4000W Output Capacity: With 4,000 watts of true power output, the SUA5000RMI5U can carry a meaningful load — not just a few small devices. That matters in a rack holding an NVR, a PoE switch, and a network appliance simultaneously. Size your load to 80% of rated capacity (3,200W) for sustained runtime and component longevity.
- 230V Input and Output: Matched 230V I/O means it integrates directly into European, Middle Eastern, and international 230V infrastructure without step-up or step-down transformers. Confirm your feed voltage before specifying — this unit is not a dual-voltage model.
- 5U Rack Form Factor (19-inch): A 5U profile occupies meaningful rack space, so plan your rack unit budget accordingly. The standard 19-inch rail mount means compatibility with virtually any EIA-standard open-frame or enclosed rack.
- VRLA Battery Technology: Valve-regulated lead-acid batteries are sealed and maintenance-free — no watering, no venting requirements beyond normal equipment room ventilation. They are replaceable in-place when the battery end-of-life indicator triggers, keeping the unit serviceable over multiple battery cycles.
- DB-Series Interface Port: The DB-series communication interface enables connection to a management card or direct serial link to a host system, supporting graceful OS shutdown on extended outage — a non-negotiable in any unattended server room or remote security closet.
Integration & Compatibility
The SUA5000RMI5U is compatible with APC's Smart-UPS accessory ecosystem, including network management cards that support SNMP-based monitoring, enabling the UPS to report status and battery health into existing network management platforms. For security integrators, pairing this unit with a managed PoE switch and NVR in the same rack creates a self-contained, power-protected surveillance node. Verify that your VMS or NVR vendor supports APC UPS communication for auto-shutdown integration.
This unit is finished in black and carries a California Proposition 65 warning (cancer and reproductive harm) — standard for lead-acid battery products. Follow local regulations for battery disposal at end of service life.
Frequently Asked Questions
Q: What is the output capacity of the SUA5000RMI5U?
A: The SUA5000RMI5U is rated at 5000VA / 4000 watts output at 230V. For sustained load, size connected equipment to no more than 80% of rated wattage (approximately 3,200W) for reliable runtime and battery longevity.
Q: What rack space does the SUA5000RMI5U require?
A: It occupies 5U in a standard 19-inch EIA rack. Plan accordingly when laying out a rack that also houses an NVR, PoE switch, or other security infrastructure.
Q: What battery type does the SUA5000RMI5U use?
A: It uses VRLA (valve-regulated lead-acid) batteries. These are sealed, maintenance-free, and user-replaceable in place without removing the unit from the rack.
Q: Is the SUA5000RMI5U compatible with 120V environments?
A: No — the SUA5000RMI5U is a 230V input/output model. It is not suitable for 120V North American utility feeds without an external step-up transformer, which is not recommended. Confirm your facility voltage before ordering.
Q: Does the SUA5000RMI5U support network management?
A: The unit includes a DB-series interface port that supports APC network management cards (sold separately), enabling SNMP monitoring and graceful server shutdown on extended power loss.
The SUA5000RMI5U sits at the heavy end of the Smart-UPS rack line — 4,000 watts of real output power in 5U is the kind of headroom you want under a fully loaded security rack, not the kind you spec and hope for. I recommend it specifically for deployments where the rack holds both compute (NVR, server) and active network gear (managed PoE switch), because the combined draw on those devices under recording load can easily exceed what a 3000VA unit can carry cleanly.
Technical Highlights:
- 4000W / 5000VA Capacity: Enough real wattage to run a high-channel NVR, a 24-port PoE switch, and a network appliance simultaneously — without tripping the UPS under surge load at camera boot-up.
- 230V I/O: Matched input and output voltage means no conversion losses and no need for additional step-down hardware in international or European facilities running standard 230V mains.
- VRLA Sealed Battery: Maintenance-free in normal operation and hot-swappable at end of life on most Smart-UPS models — keeps the unit in service across multiple battery cycles without rack downtime.
Deployment Considerations:
- At 5U, this unit consumes a substantial portion of a 12U or 16U wall-mount enclosure — size your rack before committing. A 24U or larger open-frame rack is the more practical home for this unit alongside a full security stack.
- The SUA5000RMI5U is 230V only — this is a firm constraint, not a configuration option. North American 120V sites need a different model; ordering the wrong voltage spec is a costly return.
This unit fits best in a mid-to-large physical security or IT closet where a single rack consolidates NVR, switching, and access control infrastructure on international 230V power — and where an unplanned outage means cameras go dark and doors lose their audit trail.
