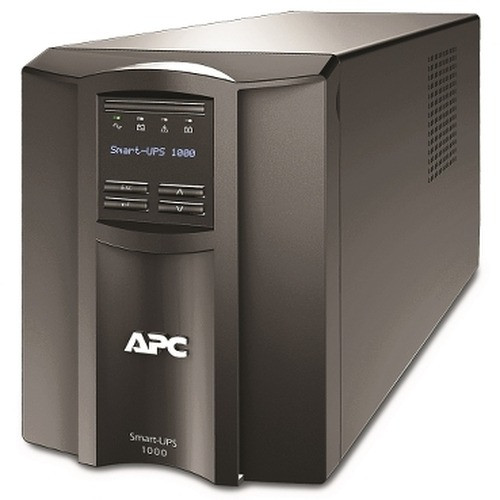

APC by Schneider Electric SMT1000CUS Smart-UPS 1000VA LCD 120V Tower UPS
The APC Smart-UPS SMT1000CUS is a 1000VA/700W line-interactive uninterruptible power supply built for commercial environments where power anomalies — sags, surges, and full outages — cannot be allowed to interrupt network infrastructure, security systems, or edge computing equipment. With a true sine wave output, an LCD status display, and three connectivity options including the cloud-ready SmartConnect port, the SMT1000CUS fits squarely in the category of power protection devices that integrators can deploy and monitor remotely without standing in front of the rack.
Overview
Line-interactive topology means the SMT1000CUS continuously regulates voltage through its automatic voltage regulation (AVR) circuitry — correcting browndowns and overvoltages without switching to battery. That matters in security and automation deployments where cameras, NVRs, and access control panels are sensitive to voltage variance. The AVR input range of 75–154V is unusually wide, giving the unit headroom to ride through sags that would force a lesser UPS onto battery and shorten battery life over time. When utility power does fail completely, the pure sine wave output protects equipment with active power factor correction (active PFC) power supplies — a requirement for modern servers, NAS devices, and many IP camera power adapters that cannot tolerate the stepped approximation waveform of cheaper UPS units.
The built-in LCD panel gives on-site technicians immediate visibility into load percentage, battery charge level, and runtime remaining — information you'd otherwise need a laptop or smartphone to retrieve. For remote visibility, the SMT1000CUS includes a SmartConnect cloud port alongside USB and serial connections, enabling proactive alerts and remote monitoring through APC's cloud platform with no network management card required.
Key Features
- 1000VA / 700W Capacity: Sized to protect a mid-tier security head-end — an NVR, a PoE switch, and a workstation — with headroom. Running at 70% of rated capacity (490W) optimizes runtime and battery longevity compared to pushing the unit to its 700W ceiling.
- Pure Sine Wave Output: Delivers utility-grade waveform on battery — critical for active PFC power supplies found in modern servers, NAS units, and high-efficiency switching PSUs. Simulated sine wave units can cause PFC PSUs to fault or shut down mid-outage; this unit eliminates that risk.
- Line-Interactive with AVR (75–154V Input Range): Corrects voltage excursions without consuming battery. A brownout at 90V or a swell to 140V gets regulated back to 120V by the transformer — the battery only engages when utility power is fully lost or falls outside this wide window.
- 8 x NEMA 5-15R Output Receptacles: Provides enough protected outlets for a full security head-end without a separate PDU. Input draws through a standard NEMA 5-15P, compatible with any 15A wall circuit.
- LCD Status Display: Real-time readout of load %, battery %, estimated runtime, and fault conditions — eliminates the guesswork of LED indicator-only models when doing a site walk or troubleshooting after an event.
- USB + Serial + SmartConnect Connectivity: USB and serial ports support PowerChute software for graceful OS shutdown during extended outages, protecting open file systems and databases. The SmartConnect cloud port adds remote monitoring without a separate network management card (a cost that adds up across multi-site deployments).
- User-Replaceable Battery (RBC6): The hot-swap RBC6 battery cartridge is a standard, widely-stocked replacement. Replacing the battery in the field takes minutes and extends the unit's service life without replacing the UPS chassis — a meaningful TCO factor for deployed infrastructure.
- Tower / 0U Form Factor: Designed as a freestanding tower (not rack-mount), the SMT1000CUS fits under a desk or on a shelf beside network closet gear. At 44.3 lb, it is heavy enough to stay put but light enough for a single technician to position.
- TAA Compliance + ENERGY STAR V2.0 + cULus: TAA compliance makes the SMT1000CUS eligible for U.S. federal and government contracts. ENERGY STAR V2.0 certification confirms efficiency benchmarks met — relevant for deployments where facility energy audits matter. cULus listing satisfies AHJ requirements in North American commercial installations.
- 99W Battery Charging Rate: The 99W charging rate means a deeply discharged battery returns to full charge within a predictable window — relevant for planning maintenance windows and verifying recovery after a prolonged outage.
- Expandable Runtime: The SmartConnect-equipped architecture supports external battery packs (where applicable) for sites that need extended runtime beyond the internal lead-acid battery's capacity — data center edge nodes and 24/7 security operations centers being the primary use cases.
Integration and Compatibility
The SMT1000CUS integrates with APC PowerChute software via USB or serial for graceful shutdown of connected hosts running Windows, Linux, or macOS. The SmartConnect port enables cloud-based remote monitoring through APC's EcoStruxure IT platform. For PoE switch and NVR deployments in physical security, the unit's sine wave output is compatible with virtually all 120V commercial network equipment. Input frequency auto-sensing (50/60 Hz ±3 Hz) makes the SMT1000CUS usable in mixed-frequency environments and simplifies procurement for multi-site operators with facilities in 60Hz and import-equipment environments. At 44.3 lb and a tower footprint of 8.6 inches wide, confirm your installation location has adequate load-bearing capacity — telecom closet shelving rated for network gear alone may not be rated for a 44-lb UPS.
The RBC6 replacement battery is a standard UPS battery stocked by most commercial distributors, reducing the logistical complexity of maintaining spare batteries across a multi-site deployment. Battery charging draws 99W from the utility feed — factor this into your facility load calculations during initial circuit planning.
Frequently Asked Questions
Q: Does the SMT1000CUS output a pure sine wave on battery, or a simulated sine wave?
A: The SMT1000CUS outputs a pure sine wave on battery. This is required for equipment with active power factor correction (active PFC) power supplies, including most modern servers, NAS devices, and enterprise networking gear. A simulated sine wave can cause these supplies to fault or shut down during a power event.
Q: What is the UPS topology of the SMT1000CUS?
A: Line-interactive. The internal AVR circuitry corrects voltage sags and swells (input range 75–154V) without switching to battery, preserving battery life and providing stable 120V output during brownouts. The battery only engages on complete loss of utility power or when input voltage exceeds the AVR correction window.
Q: Is the SMT1000CUS TAA compliant for government procurement?
A: Yes. The SMT1000CUS carries TAA (Trade Agreements Act) compliance certification, making it eligible for U.S. federal, state, and government contract purchases.
Q: What is the replacement battery for the SMT1000CUS?
A: The SMT1000CUS uses the APC RBC6 replacement battery cartridge. It is user-replaceable in the field without tools or a service call, and is widely available through commercial distributors.
Q: How many outlets does the SMT1000CUS provide?
A: Eight (8) NEMA 5-15R output receptacles. All eight are battery-backed and surge-protected. Input connection is a single NEMA 5-15P plug for a standard 15A wall circuit.
Q: Does the SMT1000CUS require a network management card for remote monitoring?
A: No. The built-in SmartConnect port provides cloud-based remote monitoring via APC's EcoStruxure IT platform without requiring a separate network management card. USB and serial ports support local PowerChute software integration for graceful host shutdown.
The SMT1000CUS is one of the few sub-$500 tower UPS units I'll specify without reservation on commercial security deployments — specifically because of the pure sine wave output on battery and the 75–154V AVR input window. Most integrators under-spec power protection and then chase phantom NVR reboots and access control panel faults for months before tracing them to voltage sags. This unit eliminates that category of problem entirely.
Technical Highlights:
- Pure Sine Wave at 1000VA/700W: At 700W rated capacity, the SMT1000CUS can carry a full security head-end — a 16-channel NVR (typically 40–80W), a 24-port PoE switch (60–120W), and a workstation — with room to spare. The sine wave waveform means active-PFC PSUs won't fault mid-outage.
- AVR Input Range 75–154V: This is wider than the typical 80–144V window on commodity UPS units. In facilities with chronic brownouts or generator-fed circuits that sag on load startup, this extra headroom keeps the SMT1000CUS off battery — extending battery service life meaningfully over a 3–5 year deployment cycle.
- SmartConnect + USB + Serial: Three independent monitoring paths means you can wire this into PowerChute for graceful NVR shutdown AND push status to a cloud dashboard simultaneously. No network management card required — that's a real cost saving on multi-site deployments where you'd otherwise be buying a card per unit.
Deployment Considerations:
- At 44.3 lb, confirm your installation surface — telecom shelf or under-desk location — is rated for the weight before mounting. This is a tower-only unit (0U rack), so budget the floor or shelf footprint accordingly: 8.6 inches wide at minimum.
- The RBC6 battery should be on your preventive maintenance calendar at 3–5 years depending on ambient temperature and cycle count. Operating at elevated temperatures (above 25°C / 77°F) accelerates lead-acid degradation — factor this into deployments in uncooled telecom closets or outdoor-adjacent enclosures.
For a multi-camera security operations center or a network closet protecting an NVR stack and PoE switching infrastructure, the SMT1000CUS is the correct spec: sine wave output, wide AVR window, cloud monitoring without add-on cards, and a TAA pedigree that clears federal procurement gates.
