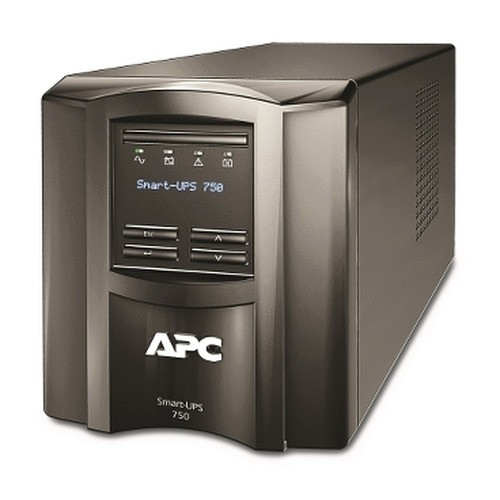

APC by Schneider Electric SMT750CUS Line-Interactive 750VA LCD UPS
Overview
The SMT750CUS is a 750VA/500W line-interactive uninterruptible power supply designed for protecting servers, network equipment, and security infrastructure — including NVRs, access control panels, and IP camera PoE switches — from power interruptions, surges, and voltage fluctuations. Rated at 500W continuous output, it delivers true sine wave power across six NEMA 5-15R outlets, making it compatible with active PFC power supplies common in modern network hardware. The built-in LCD panel provides at-a-glance runtime estimates, load percentage, and battery status without requiring a laptop or management software. For the broader APC by Schneider Electric power protection lineup, the SMT750CUS sits at the entry point of the Smart-UPS family — a step up from basic standby units and appropriate where power quality matters as much as backup runtime.
Key Features
- Pure Sine Wave Output: The SMT750CUS outputs a true sine wave during battery operation — not a stepped approximation. Active PFC server power supplies and variable-speed fan drives require sine wave input to avoid load rejection or hardware damage; a simulated sine wave UPS will trip these loads. This is the spec that disqualifies cheaper standby units for rack-mount server environments.
- Line-Interactive Topology with Automatic Voltage Regulation (AVR): Input voltage is accepted across 82–144V (with adjustable range down to 75V / up to 154V) before the unit switches to battery. This means brief sags and swells — the most common power quality events — are corrected by the AVR transformer without depleting battery charge. In sites with notoriously dirty utility power, this extends battery life significantly compared to standby designs that battery-switch on every sag.
- 6 ms Transfer Time: The transition from utility to battery power completes in 6 milliseconds — fast enough that connected equipment never detects the switchover. Virtually all computing and networking hardware tolerates gaps up to 20ms; 6ms provides comfortable margin.
- Six NEMA 5-15R Outlets: All six output receptacles are battery-backed, giving you flexibility to distribute protection across a small server, a PoE switch, and an NVR simultaneously without dedicating separate UPS units to each device. No surge-only outlets to track — every port is fully protected.
- 97–98.9% Efficiency Across Load Range: Measured efficiency runs from 97.2% at 25% load up to 98.9% at full load. At typical data-closet loads (40–60% of capacity), you're losing under 1.5% to heat. This matters in enclosed telecom cabinets where waste heat compounds thermal management problems.
- 540-Joule Surge Energy Rating: The integrated surge protection absorbs 540 joules, backed by a $150,000 equipment protection policy. Sufficient for induced transients from nearby lightning strikes on commercial-grade electrical systems — not a substitute for a dedicated transient voltage surge suppressor (TVSS) on the service entrance, but meaningful protection at the device level.
- SmartConnect + SmartSlot Expansion: The unit includes one SmartConnect port (cloud-enabled management via the APC SmartConnect portal) and one open SmartSlot for optional network management cards (AP9630/AP9631 series). The SmartSlot remains free at purchase — add a network card later to enable SNMP traps, remote shutdown scripting, and integration with data center infrastructure management (DCIM) platforms without replacing the UPS.
- USB Interface for Local Shutdown: The USB port pairs with PowerChute Personal Edition or PowerChute Business Edition software for graceful OS-level shutdown on connected servers when runtime runs low. No network card required for single-server deployments.
- Runtime at Load: At full 500W load, rated runtime is approximately 4.5 minutes — enough to execute a clean shutdown sequence. At half load (250W), runtime extends to roughly 16 minutes, which covers brief utility outages at typical mixed loads. Runtime is directly affected by battery age; plan for battery replacement at the 3–4 year mark.
- 41 dBA Acoustic Emission: Rated at 41 dBA under normal operation, this unit is office-tolerant — comparable to a quiet conversation at 1 meter. Suitable for wiring closets adjacent to occupied spaces where fan noise from louder UPS units causes complaints.
- Lead-Acid, Maintenance-Free, Sealed Battery: The internal valve-regulated lead-acid (VRLA) battery is sealed and leak-proof, making it safe for installation in enclosed equipment rooms and standard telecom cabinets without special ventilation requirements for off-gassing. The unit holds operating temperature between 32°F and 104°F (0°C–40°C); battery capacity degrades faster near the top of that range — factor this into deployments in hot-aisle/warm environments.
- Regulatory Compliance: Listed to UL 1449 (surge protection) and UL 1778 (UPS), certified to CSA C22.2 No. 107.1, and meets FCC Part 15 Class B and ICES-003 for conducted/radiated emissions — relevant if the installation must comply with EMC requirements for mixed office/equipment spaces. RoHS and REACH compliant for facilities with environmental procurement requirements.
Integration & Compatibility
The SMT750CUS connects to management infrastructure via USB (local) or via optional network management cards installed in the SmartSlot — the AP9630 adds dual Ethernet/USB management, the AP9631 adds environmental monitoring. The SmartConnect cloud interface enables remote monitoring without a network management card for basic deployments. PowerChute software supports graceful shutdown on Windows, Linux, and macOS. For UPS and power protection selection in security and IT closets, confirm that your total connected load (NVR, PoE switch, server) does not exceed 500W sustained — at 80% recommended loading, plan for 400W or less. The standard NEMA 5-15P input plug connects directly to standard 120V 15A circuits; no special outlet required. When pairing with PoE network switches, account for the switch's total PoE budget plus chassis draw in your load calculation — a 24-port PoE switch at full load can easily exceed 300W on its own.
Frequently Asked Questions
Q: What is the difference between the SMT750CUS and a basic standby UPS?
A: The SMT750CUS uses a line-interactive topology with automatic voltage regulation (AVR), which corrects input voltage sags and swells (82–144V range) without switching to battery. A standby UPS transfers to battery on every voltage event, depleting runtime and cycling the battery more frequently. The SMT750CUS also outputs pure sine wave during battery operation, which is required by active PFC power supplies found in most modern servers and networking equipment.
Q: How long will the SMT750CUS run on battery?
A: At full rated load (500W), runtime is approximately 4.5 minutes — enough for a controlled shutdown. At half load (250W), runtime extends to roughly 16 minutes. Actual runtime depends on battery age and condition; APC rates the battery for 3 hours recharge after a full discharge.
Q: Can I add remote network management to the SMT750CUS?
A: Yes. The unit ships with one open SmartSlot that accepts APC AP9630 or AP9631 network management cards, enabling SNMP, remote shutdown, and DCIM integration. Basic cloud monitoring is also available via the included SmartConnect port without purchasing a network card.
Q: What is the warranty on the SMT750CUS?
A: The unit carries a 3-year limited warranty covering repair or replacement. The internal battery has a separate 2-year limited warranty. Both are manufacturer warranties.
Q: Is the SMT750CUS safe to install in an enclosed equipment cabinet?
A: Yes. The internal VRLA battery is sealed, maintenance-free, and leak-proof — it does not require special ventilation for hydrogen off-gassing. Operating temperature range is 32°F to 104°F. Note that sustained operation near the upper temperature limit accelerates battery aging.
Q: What output receptacles does the SMT750CUS provide?
A: Six NEMA 5-15R outlets, all battery-backed. There are no surge-only outlets on this model — every connected device receives full battery and surge protection.
The spec I key on first with the SMT750CUS is the pure sine wave output — not because it sounds impressive, but because it determines whether this unit is even viable for your load. If you're protecting a modern NVR with an active PFC power supply, or a rack switch with variable-speed cooling fans, a simulated sine wave UPS will cause equipment restarts or outright refusal to run on battery. The SMT750CUS eliminates that failure mode entirely. I've seen integrators spec cheaper standby units on NVR closets and spend hours troubleshooting mystery reboots that trace back to a stepped waveform mismatch — this is the model that prevents that conversation.
Technical Highlights:
- 6ms Transfer Time: Switching from utility to battery in 6 milliseconds keeps connected equipment running without a detectable interruption — well inside the 20ms tolerance of virtually all commercial networking and server hardware.
- AVR Input Range 82–144V (adjustable 75–154V): Voltage regulation without battery transfer across a wide input window means normal sag events — the majority of power quality incidents — are absorbed transparently, preserving battery capacity for actual outages.
- 97.2–98.9% Efficiency: Under real-world loads (typically 40–60% of rated capacity in a security closet), efficiency stays above 98%. In a sealed wall cabinet, that's the difference between the UPS being a heat source or a non-factor in your thermal budget.
Deployment Considerations:
- The single SmartSlot ships empty — if your deployment requires SNMP traps to a DCIM or automated graceful shutdown beyond what PowerChute handles locally over USB, budget for an AP9630 or AP9631 network management card at install time, not as an afterthought.
- At full 500W load, you have roughly 4.5 minutes of runtime — that's a shutdown window, not a ride-through. If your NVR and switch together draw 350–400W, you're at 70–80% load and runtime will be tighter than the 16-minute half-load spec suggests. Size loads conservatively or step up to the next capacity tier.
The SMT750CUS is the right pick for a small security head-end room protecting a single NVR, a 24-port PoE switch, and an access control panel — where pure sine wave fidelity, AVR, and a future SmartSlot expansion path matter more than raw runtime capacity.
