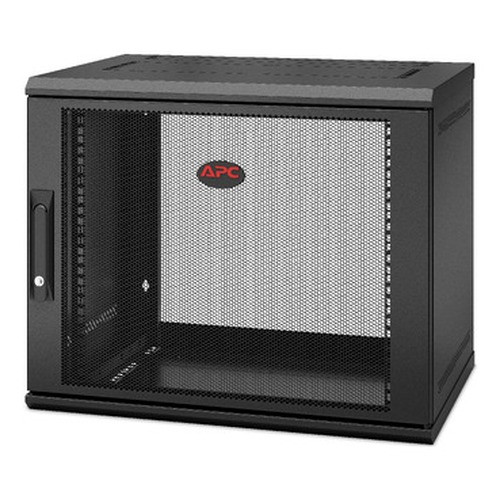

APC by Schneider Electric AR109SH4 9U Single Hinged Wall-mount Enclosure
Overview
The APC by Schneider Electric AR109SH4 is a 9U single-hinged wall-mount enclosure designed for deploying network and IT equipment in environments where floor space is limited or a dedicated server room is not feasible. Its 400mm depth accommodates standard 19-inch rack-mount devices, while the perforated front door enhances airflow, critical for maintaining optimal operating temperatures for sensitive electronics like network switches, small NVRs, or patch panels. This enclosure is preassembled to expedite deployment.
Compatibility
This enclosure is designed for standard 19-inch rack-mountable equipment. It supports devices with a maximum mounting depth of 32.9 cm (13 inches), making it suitable for compact network switches, patch panels, small form-factor UPS units, and surveillance recording devices that adhere to EIA-310 rack-mounting standards. Its 9U capacity provides adequate space for a small stack of such equipment.
Installation Notes
The enclosure has a maximum weight capacity of 90 kg (198 lbs). Ensure the wall structure can support the weight of the enclosure plus its fully loaded equipment. The 400mm depth means it requires adequate clearance for both equipment installation and cable management at the rear. The perforated front door allows for ventilation, but placement should still consider ambient temperature and proximity to heat sources.
