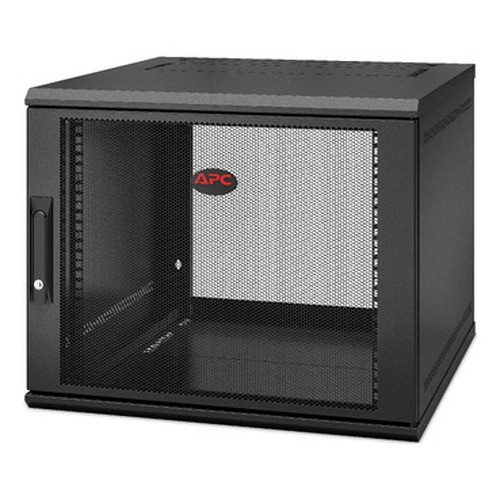

APC by Schneider Electric AR109SH6 Wallmount Rack Enclosure

Overview

The APC by Schneider Electric AR109SH6 is a preassembled 9U wall-mounted rack enclosure designed for secure deployment of IT and networking equipment in environments where floor space is limited or dedicated server rooms are not feasible. Its single-hinged, perforated front door allows for adequate ventilation while maintaining physical security for sensitive components. This cabinet is engineered for straightforward wall installation, providing a robust mounting point for network switches, patch panels, and other 19-inch rack-mountable devices. The 600mm width and depth accommodate standard rack-mount equipment, making the AR109SH6 a practical choice for small to medium-sized deployments or edge computing locations.

Compatibility

This 19-inch rack enclosure supports standard rack-width equipment, including most 19-inch rack-mount servers, network switches, patch panels, UPS units, and surveillance NVRs up to 9U in height. The maximum mounting depth of 52.8 cm (20.8 inches) ensures compatibility with a wide range of rack-depth devices. Its steel construction provides a stable platform for equipment weighing up to 90 kg (198 lbs).

Installation Notes

The enclosure is designed for wall mounting and requires appropriate wall anchors and structural support to handle its maximum weight capacity of 90 kg. The 600mm width and 485mm height dimensions should be considered for placement to ensure adequate clearance for door swing and access. Ventilation is provided via the perforated front door, but ensure surrounding air circulation is sufficient to prevent overheating of installed equipment.
