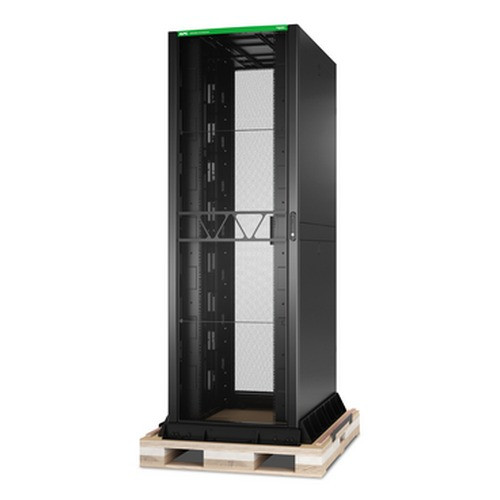

APC Netshelter SX GEN 2 High Strength Rack 52U 2436H X 800W X 1295D MM with - AR9588SPB2

APC by Schneider Electric AR9588SPB2 NetShelter SX Gen 2 52U High-Strength Freestanding Rack

Overview

The APC by Schneider Electric AR9588SPB2 is a 52U freestanding open-frame rack enclosure from the NetShelter SX Gen 2 line — a purpose-built infrastructure cabinet for data centers, server rooms, and high-density network equipment deployments. At 2436mm tall, 800mm wide, and 1295mm deep, this is a full-height, enterprise-class enclosure designed to handle the physical and thermal demands of modern compute, storage, and networking loads. If you're building out a structured rack deployment where long-term scalability, standardized mounting, and verified structural integrity are non-negotiable, this is the frame to spec.

The AR9588SPB2 ships in a black finish and carries both data center rack certifications that matter: EIA-310E (the industry baseline for rack unit dimensional compliance) and UL 2416 (North American safety listing for IT equipment racks). Those aren't marketing checkboxes — EIA-310E conformance means every rail kit, shelf, cable manager, and blanking panel you source to EIA spec will fit correctly. UL 2416 listing satisfies the safety documentation requirements most enterprise facilities teams and data center operators require before allowing installation.

Key Features

• 52U Rack Capacity: 52 rack units of usable vertical space — roughly 10% more than a standard 42U cabinet. That extra room matters when you're mounting a mix of 1U servers, 2U storage arrays, patch panels, and cable management horizontally rather than cramming into a shorter enclosure mid-project.
• 800mm Width: The 800mm-wide footprint (vs. the narrower 600mm alternative) gives cable managers, side-exit wiring, and wider blade chassis room to breathe. Wider enclosures also support higher-capacity power distribution strips along the interior verticals without constricting airflow paths.
• 1295mm Usable Depth: With a mounting depth range of 292mm to 1143mm, the AR9588SPB2 accommodates everything from shallow patch panels to deep 1200mm server chassis. Deep 1U storage servers and high-density compute nodes that frequently run 900–1000mm in body length fit without modification.
• EIA-310E Certified Mounting: Standardized hole spacing means universal compatibility with EIA-compliant rack accessories, rail kits, and PDUs from any manufacturer. You're not locked into a proprietary mounting ecosystem.
• UL 2416 Safety Listing: Required in many commercial and government facility management contracts. Eliminates the compliance conversation before rack installation begins — your facilities team, insurance auditor, or general contractor gets a listed product, not a field-certified one.
• High-Strength Gen 2 Frame Construction: The NetShelter SX Gen 2 designation reflects APC's structural reinforcement over the original SX line. At a package weight of 395 kg, the structural materials here are substantial — this is a rack built to carry high static loads across the full 52U height without flex under real-world mixed-weight deployments.
• 5-Year Manufacturer Warranty: A five-year coverage term on a passive infrastructure component means this rack is warrantied for well past the typical 3-year server refresh cycle. Rack frames don't fail often, but having the coverage removes the asset-risk conversation from procurement.

Integration & Compatibility

As an EIA-310E conforming enclosure, the AR9588SPB2 integrates directly with the full APC by Schneider Electric NetShelter accessory ecosystem — including APC's rack PDUs, vertical cable managers, blanking panels, and side panels. It is equally compatible with third-party EIA-standard rail kits and accessories from vendors such as Panduit, Chatsworth, and Middle Atlantic. The 800mm width and 1295mm depth envelope is large enough to accommodate most standard network switches, storage arrays, and 2-post or 4-post server mounting configurations without requiring custom adaptation.

For deployments requiring environmental monitoring, APC's NetBotz rack access and environmental monitoring units mount directly inside or adjacent to this enclosure using standard rack-mount brackets.

Frequently Asked Questions

Q: What is the rack unit capacity of the AR9588SPB2?

A: The AR9588SPB2 provides 52U of usable rack space within a 2436mm overall enclosure height.

Q: What certifications does the AR9588SPB2 carry?

A: The AR9588SPB2 is certified to EIA-310E (standard rack unit dimensional compliance) and UL 2416 (North American safety listing for IT equipment racks).

Q: What is the maximum equipment depth the AR9588SPB2 can accommodate?

A: The mounting depth adjusts from a minimum of 292mm to a maximum of 1143mm, supporting shallow patch panels through deep server chassis up to approximately 1100mm in body length.

Q: What is the warranty period on the AR9588SPB2?

A: APC covers the AR9588SPB2 with a 5-year manufacturer warranty.

Q: Is the AR9588SPB2 compatible with third-party rack accessories?

A: Yes. EIA-310E certification ensures universal compatibility with any EIA-standard rail kits, cable managers, PDUs, and accessories from any manufacturer — you are not limited to APC-branded components.

Q: What is the overall footprint of the AR9588SPB2?

A: The enclosure measures 800mm wide by 1295mm deep by 2436mm tall. Shipping dimensions are 1105mm wide by 1460mm deep by 2670mm tall, with a packaged weight of 395 kg — plan for loading dock access and mechanical lift equipment during delivery and installation.

Eden Phillips

The AR9588SPB2 is one of the few 52U enclosures in the enterprise market that pairs EIA-310E dimensional compliance with a UL 2416 safety listing out of the box — a combination that matters the moment you're deploying into a facility with a strict equipment approval process. The 1295mm depth with a 1143mm maximum mounting depth means this rack can house the longest commodity server chassis available today without field modification.

Technical Highlights:

• 52U Height (2436mm): Ten additional rack units over a standard 42U cabinet — relevant when you're consolidating infrastructure mid-cycle and need headroom for future expansion without purchasing a second enclosure.
• 292–1143mm Adjustable Mounting Depth: The wide adjustment range lets you front-mount shallow networking gear and rear-mount deep storage nodes in the same enclosure, accommodating mixed-depth deployments without rail adapters.
• 395 kg Packaged Weight: The shipping weight indicates serious structural material density in the Gen 2 frame. Plan for a two-person installation crew and confirm your raised floor or slab rating before final positioning — 395 kg packaged means the installed rack plus loaded equipment will exceed most portable lift capacities.

Deployment Considerations:

• At 2670mm shipping height, verify your receiving dock door clearance before scheduling delivery — this enclosure will not pass through a standard 2438mm (8-foot) interior door in its shipping carton.
• The 800mm width requires a standard 900mm or wider hot-aisle/cold-aisle lane allocation. If you're retrofitting into a legacy 600mm-lane row layout, measure carefully — the enclosure itself is 800mm, but cable egress and door swing add to the effective footprint.

The AR9588SPB2 is the right call for a greenfield enterprise data center buildout or a structured colocation cage deployment where UL-listed equipment is a contractual requirement, 52U density is needed from day one, and you expect to run a mixed population of full-depth compute and shallow networking gear in the same frame.
