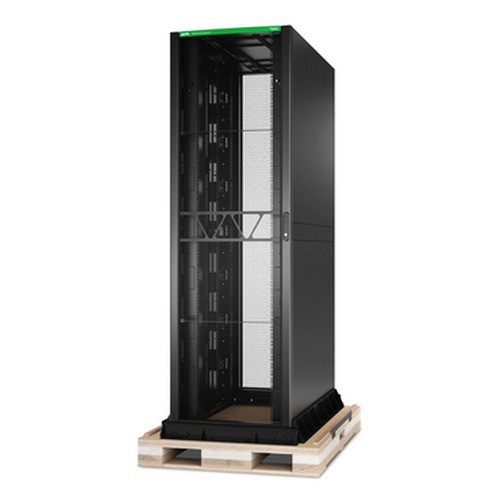

APC Netshelter SX GEN 2 High Strength Rack 52U 2436H X 750W X 1470D MM with - AR9658SPB2

APC by Schneider Electric AR9658SPB2 52U NetShelter SX Gen 2 High-Strength Freestanding Rack

Overview

The APC by Schneider Electric AR9658SPB2 is a 52U, 2436mm-tall freestanding open-frame rack enclosure designed for data centers, network operations centers, and large-scale physical security or enterprise IT deployments where rack density, cable management, and structural load capacity are non-negotiable. At 750mm wide and 1470mm deep, it gives integrators enough interior clearance to house full-depth servers, high-density patch panels, and large-format NVR appliances side by side without compromising airflow or service access. EIA-310E compliance ensures universal compatibility with standard 19-inch rackmount equipment across every major vendor.

If you're spec'ing a network video recorder room, a security operations center, or a converged IT/physical-security rack environment, the AR9658SPB2 belongs on your short list. Its mounting depth range — 29.2 cm minimum to 132.1 cm maximum — means it accommodates shallow patch panels and deep 4U NVR chassis in the same enclosure. Browse the full APC by Schneider Electric catalog for complementary power distribution and UPS solutions that pair directly with this rack.

Key Features

• 52U Usable Rack Space: 52 rack units in a single 2436mm-tall enclosure means you can consolidate what would otherwise require two or three shorter racks — fewer inter-rack cable runs, less floor space consumed, and a cleaner audit trail for equipment inventory.
• 750mm Width: The 750mm-wide form factor provides 50mm of additional side clearance versus a standard 600mm rack, which matters when you're routing high-density fiber bundles or running side-mounted cable managers without pinching bend radii.
• 1470mm Depth: Deep enough to house full-depth 1U/2U servers and blade chassis without rear-door modification. Pair this with a rack cable management system and you won't need to overhang equipment out the back.
• 29.2–132.1 cm Adjustable Mounting Depth: The adjustable rail system covers a span of nearly 103 cm, accommodating everything from shallow 1U switches to deep storage arrays in the same frame — so the rack grows with your deployment rather than locking you into a fixed equipment profile.
• EIA-310E and UL 2416 Certified: EIA-310E compliance guarantees that standard 19-inch rackmount equipment from any manufacturer fits without modification. UL 2416 certification means the structural integrity of the frame has been independently tested — relevant when insurance and facility managers ask for documentation.
• Freestanding Design: No wall anchoring required for installation, which simplifies deployment in raised-floor data centers and leased spaces where structural modifications are restricted. The freestanding footprint also allows repositioning during build-out without rewiring.
• High-Strength Frame Construction: The Gen 2 high-strength designation reflects an engineered frame rated for the sustained static loads typical of fully populated enterprise racks — critical when you're stacking dense storage, multiple NVRs, and PoE switch trays in the same enclosure.
• Factory-New, Black Finish: Ships in black — the standard color for data center and NOC environments where rack color uniformity matters for visual organization and client-facing presentations.
• 5-Year Manufacturer Warranty: APC backs the AR9658SPB2 with a 5-year manufacturer warranty, meaningful for a structural component that is expected to outlast the equipment it houses by years. Plan accordingly when documenting total cost of ownership in capital proposals.

Integration & Compatibility

The AR9658SPB2 integrates with standard APC NetShelter accessory ecosystems — PDUs, blanking panels, side panels, and roof/floor blanking kits are all designed around the NetShelter SX Gen 2 rail geometry. For physical security deployments, pair this enclosure with a PoE managed switch mounted in the lower-U positions and NVR appliances in the middle bay to keep cable runs short and thermal management predictable. The 132.1 cm maximum mounting depth ensures compatibility with virtually all commercial rackmount equipment currently on the market. UL 2416 and EIA-310E certifications are accepted by most data center facility managers and AHJs without additional documentation.

Frequently Asked Questions

Q: What is the usable rack space of the AR9658SPB2?

A: The AR9658SPB2 provides 52U of usable rack space in a 2436mm-tall enclosure.

Q: What is the adjustable mounting depth range?

A: The mounting depth adjusts from a minimum of 29.2 cm to a maximum of 132.1 cm, accommodating shallow patch panels through full-depth server chassis.

Q: What certifications does the AR9658SPB2 carry?

A: The AR9658SPB2 is certified to EIA-310E (standard 19-inch rackmount equipment compatibility) and UL 2416 (structural safety standard for information technology equipment racks).

Q: What is the warranty on the AR9658SPB2?

A: APC provides a 5-year manufacturer warranty on the AR9658SPB2.

Q: Does the AR9658SPB2 require wall anchoring?

A: No. The AR9658SPB2 is a freestanding rack enclosure and does not require wall anchoring for installation, though local seismic codes may impose additional anchoring requirements depending on your facility location.

Q: What are the external package dimensions and weight for freight planning?

A: The packaged unit ships at 1105mm wide × 1635mm deep × 2670mm tall and weighs 391 kg — plan for liftgate delivery and two-person installation at minimum.

Marty Allison

The AR9658SPB2 comes up regularly in physical security NOC builds and converged IT/security deployments where the integrator needs a single enclosure that won't become a limiting factor as the equipment load grows. The 52U height combined with a 132.1 cm maximum mounting depth is what separates this frame from mid-market alternatives — you're not going to find yourself buying a second rack two years later because the first one ran out of depth clearance for a new NVR chassis.

Technical Highlights:

• 52U / 2436mm Height: At 52U, this is one of the taller standard rack configurations available — approximately 8U more than a conventional 44U frame. That additional headroom translates directly into fewer enclosures required per row, which reduces inter-rack cabling complexity on large NVR and switch deployments.
• 29.2–132.1 cm Mounting Depth Range: A 103 cm adjustment range is unusually wide. Most integrators never need all of it, but having it means you can mix shallow 1U managed switches in the same frame as deep 4U storage arrays without shimming or custom rail kits.
• UL 2416 + EIA-310E: UL 2416 is increasingly requested by facility managers and AHJs on enterprise builds — it documents that the frame's structural load ratings have been independently validated, not just claimed by the manufacturer. EIA-310E locks in 19-inch compatibility across every major vendor's lineup.

Deployment Considerations:

• At 391 kg packaged, freight logistics require advance planning — liftgate delivery is non-negotiable, and the installation site needs clear access for a two-person crew with appropriate material handling equipment before the delivery window.
• The freestanding design is an asset in leased data center space where structural modifications are restricted, but check local seismic zone requirements early — some jurisdictions require floor anchoring regardless of rack type for equipment above a certain height or load threshold.

This enclosure is a strong fit for security operations center buildouts and enterprise physical security backbone rooms where the rack is expected to house NVRs, PoE switches, patch panels, and UPS equipment in a single frame for the life of the building — not just the first refresh cycle.
