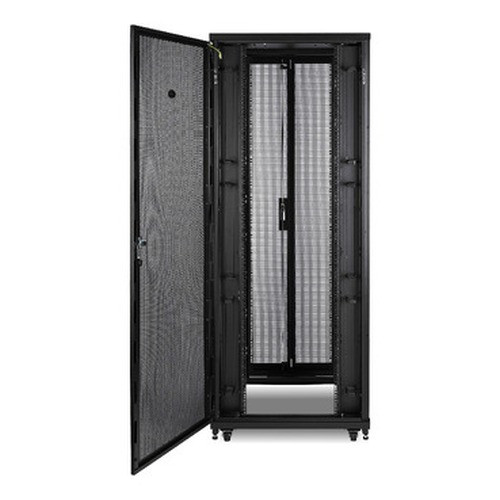

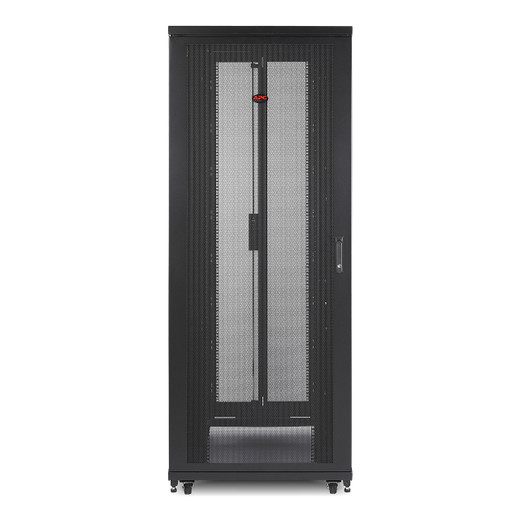

APC Netshelter SV Server Rack Enclosure 42U Black 2057H X 800W X 1060D MM WI - AR2480

APC by Schneider Electric AR2480 NetShelter SV 42U Server Rack Enclosure

Overview

The APC by Schneider Electric AR2480 is a 42U free-standing server rack enclosure from the NetShelter SV line, designed for mixed-use server and networking deployments. At 800mm wide and 1060mm deep with a standard 19-inch mounting rail width, the AR2480 accommodates the full range of 1U through 4U rackmount equipment — servers, patch panels, switches, KVM units, and power distribution. The steel construction and lever-handle locking door keep equipment physically secured in open data center floors, wiring closets, and server rooms where access control matters.

The 42U height gives you enough vertical density to consolidate a full compute stack — a typical mixed server and networking build occupies 20–30U, leaving headroom for growth without requiring a second enclosure from day one. The 1060mm depth accommodates deep 2-post and 4-post equipment including full-depth 1U/2U rack servers that commonly run 700–900mm in chassis depth, with clearance for rear cable dressing.

Key Features

• 42U Capacity: enough vertical space to house a complete server, switching, and patch infrastructure in a single footprint — reduces per-rack floor space cost versus running two shallower enclosures.
• 800mm Width: wider than the minimum 600mm standard, providing additional side clearance for cable routing and easier access when working in dense rows.
• 1060mm Depth: fits full-depth rackmount servers without rear-door obstruction, eliminating the need for depth extenders on most current-generation 1U/2U platforms.
• 19-Inch Mounting Rails: EIA-310 standard — compatible with virtually all enterprise rackmount hardware without adapter brackets.
• Steel Construction: commercial-grade steel frame and door provide structural rigidity and physical security appropriate for production server environments.
• Lever Handle Lock: tool-free front access with keyed lock engagement — faster than thumbscrew panels in environments where technicians frequently need rack access.
• Free-Standing Design: no wall or floor anchoring required for standard installations; positions anywhere on a raised or slab floor without structural modification.

Integration & Compatibility

The AR2480 is designed to accept APC by Schneider Electric rack PDUs, cable management accessories, and blanking panels from the NetShelter SV accessory family. The standard 19-inch rail spacing ensures compatibility with rack enclosure accessories from third-party vendors as well. For power distribution planning within the enclosure, review your rack PDU options early — the 1060mm depth supports both front- and rear-mounted PDU configurations. If you are building out a multi-rack row, consider top-of-rack switching to minimize inter-rack cabling distance.

Frequently Asked Questions

Q: What is the rack unit capacity of the AR2480?

A: The AR2480 provides 42U of usable rack space on standard 19-inch EIA-310 mounting rails.

Q: What are the external dimensions of the AR2480?

A: The AR2480 is 800mm wide and 1060mm deep. Exact assembled height should be confirmed against the current APC product datasheet, as the 2057mm figure cited in the product name reflects the overall enclosure height including the top panel.

Q: Is the AR2480 compatible with APC rack PDUs?

A: Yes — the AR2480 is designed within the NetShelter SV ecosystem and accepts APC rack power distribution units. Specific PDU models should be verified for depth and mounting compatibility with your planned equipment layout.

Q: Does the AR2480 ship with side panels?

A: The product name references sides included ('WI' = with sides). Verify exact package contents with the current APC product documentation prior to ordering if side panels are required for your installation.

Eden Phillips

The AR2480 hits the practical sweet spot for mixed server and networking builds — 42U of vertical space in an 800mm-wide, 1060mm-deep steel enclosure means you're not fighting depth clearance issues with full-chassis servers, and the extra width over a 600mm baseline buys real cable management room in the side channels.

Technical Highlights:

• 42U / 800mm Width: the wider-than-minimum footprint pays off in dense rows — side cable bundles don't fight equipment ears for space, and swapping gear mid-row is faster.
• 1060mm Depth: covers virtually every current 1U/2U server chassis without depth extenders; rear PDU mounting still clears without forcing a shorter cable bundle.
• Lever Handle Lock: tool-free front access with keyed engagement is the right call for environments where technicians cycle in and out regularly — thumbscrew panels slow down routine maintenance without adding security.

Deployment Considerations:

• The free-standing design requires no anchoring for standard indoor installations, but verify floor load ratings if you plan to fully populate a 42U enclosure with dense 2U servers — a fully loaded rack can exceed 1,000 lbs depending on equipment.
• Note: exact static and dynamic load ratings, door perforation percentage, and detailed package contents are not confirmed in current evidence — pull the APC product datasheet before finalizing a high-density build spec.

Best fit for a mid-scale server room or wiring closet build where you need a single consolidated enclosure for mixed compute and networking gear and expect to grow into the rack over 12–24 months without a forklift upgrade.
