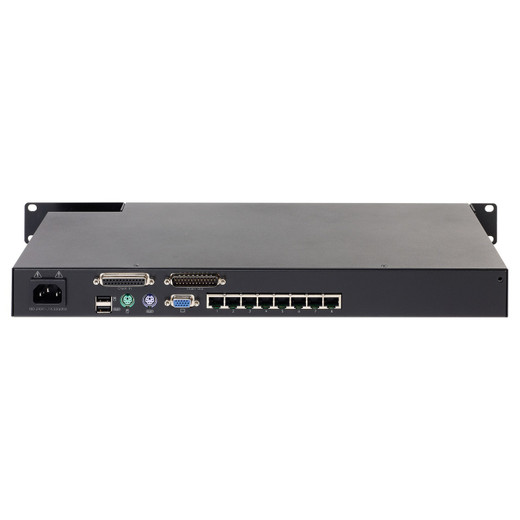

APC KVM 2G Analog 1 Local User 8 Port - KVM0108A

APC by Schneider Electric KVM0108A 8-Port Analog KVM Switch

Overview

The APC by Schneider Electric KVM0108A is a 1-local-user, 8-port analog KVM switch built for IT rooms and small data centers where a single administrator needs consolidated keyboard, video, and mouse control over up to eight servers from a single console. At 1U of rack space, it slots cleanly into existing infrastructure without displacing other gear. If you manage a compact server stack — a surveillance NVR room, an access control headend, or a branch IT closet — the KVM0108A gives you a clean, wired path to every machine without a console cart or remote-access licensing overhead.

The KVM0108A ships with PS/2 keyboard and mouse ports on the console side and VGA video output, aligning with legacy server hardware that remains common in security and industrial environments. Maximum supported resolution is 1600 x 1200 pixels — sufficient for server management UIs, BIOS access, and NVR configuration screens where you need readable text rather than video playback fidelity.

Key Features

• 8-Port Server Capacity: Control up to eight computers from a single keyboard, monitor, and mouse. For a typical eight-NVR surveillance headend or an eight-server branch datacenter, this eliminates the need for individual crash carts or IP-based remote-access agents on every machine — reducing both hardware cost and management complexity.
• 1U Rack Form Factor: Occupies exactly one rack unit, leaving room for high-density server builds. Rack-mount ears are included; no shelf or tray is required. For integrators building out 12U or 24U edge cabinets, the single-U footprint matters.
• 1600 x 1200 Maximum Resolution: Supports 4:3 UXGA resolution, which covers every common server management console and BIOS display mode. If your servers run 1080p or 4K UI output, check that the connected monitor and cables support the required resolution — the KVM passes through what the console can handle up to this ceiling.
• PS/2 Keyboard and Mouse Console Ports: The console-side keyboard and mouse use PS/2 connections. This is a deliberate design choice for environments where USB HID compatibility across heterogeneous servers is uncertain — PS/2 avoids USB enumeration delays during boot and BIOS access. Confirm your console keyboard and mouse are PS/2 or use an active PS/2-to-USB adapter on the admin side.
• VGA Console Video Output: Single VGA (D-Sub) port on the console side. VGA is universally supported by rack-mount LCD consoles and KVM drawer monitors. No DisplayPort or HDMI adapter required for standard 1U LCD console drawers.
• USB 2.0 Ports (x2): Two USB 2.0 ports support peripheral sharing or firmware update media across connected servers. Useful when a server requires a USB device — drive, dongle, or token — without breaking the KVM session.
• RS-232 Console Port: The rear RS-232 port enables out-of-band serial management of the KVM switch itself — useful for scripted port switching, integration with serial-capable management platforms, or environments where the IP network is unavailable.
• Operating Temperature 0–50°C: Covers standard conditioned equipment rooms and most enclosed rack enclosures with forced-air cooling. Not rated for outdoor or unconditioned spaces — verify ambient temperature in sealed cabinets before deployment.
• Multi-Certification Compliance: Carries cUL, UL 60950-1, CE, FCC Part 15 Class A, C-tick, VCCI Class A, VDE, GOST, ICES-003, UL-AR, and RoHS. For government and regulated-industry deployments, FCC Class A and CE mark the switch as fit for commercial equipment rooms. RoHS compliance is increasingly required for public-sector procurement.
• LED Indicators: On-unit LED status indicators show active port selection at a glance — no need to check which server has console focus during multi-server maintenance windows.

Integration and Compatibility

The KVM0108A connects to servers via PS/2 keyboard, PS/2 mouse, and VGA video on each server port — the standard analog KVM cable set. It is compatible with any server or workstation that exposes PS/2 HID and VGA video ports, including most rack-mount servers manufactured before widespread USB-only console adoption. For servers with USB-only ports, a PS/2-to-USB adapter on the server side is typically required (sold separately). The RS-232 management port can integrate with serial console servers or automated switching scripts for lights-out environments. The switch supports up to 8 computers and 1 local user simultaneously — it is a single-user-access design; concurrent multi-user console sharing is not supported on this model. APC by Schneider Electric KVM switches and accessories can be browsed across the APC by Schneider Electric catalog for compatible cable kits and console drawers. For a broader selection, see the KVM switches category. If you are building out a full rack with power distribution and management, review the rack PDU and power distribution options that pair with this switch in a consolidated headend build. For guidance on sizing a KVM deployment to your server count and access requirements, the KVM and server management guide covers port count, cascade configurations, and remote-access tradeoffs.

Frequently Asked Questions

Q: Does the KVM0108A support USB keyboards and mice on the console side?

A: No. The KVM0108A console ports are PS/2 for both keyboard and mouse. You will need a PS/2 keyboard and PS/2 mouse at the admin console, or an active PS/2-to-USB adapter. USB 2.0 ports on the unit are for peripheral device sharing, not console HID input.

Q: What is the maximum video resolution supported?

A: The KVM0108A supports a maximum resolution of 1600 x 1200 pixels (UXGA). This is sufficient for all standard server management interfaces, BIOS screens, and rack LCD console drawers operating at 4:3 aspect ratios.

Q: Can the KVM0108A be rack-mounted?

A: Yes. The unit is designed for 1U rack mounting. It occupies a single rack unit in a standard 19-inch rack enclosure.

Q: Does the KVM0108A support remote or IP-based access?

A: No. The KVM0108A is an analog local-access KVM. It provides control to one local user at the console. For IP-based remote KVM access, a different model with IP functionality would be required.

Q: What certifications does the KVM0108A carry?

A: The KVM0108A is certified to cUL, UL 60950-1, CE, FCC Part 15 Class A, C-tick, VCCI Class A, VDE, GOST, ICES-003, UL-AR, and is RoHS compliant. This makes it suitable for regulated commercial and government equipment room deployments.

Q: What is the operating temperature range of the KVM0108A?

A: The unit operates from 0°C to 50°C (32°F to 122°F). It is designed for conditioned equipment rooms and standard rack enclosures with adequate airflow — not for unconditioned or outdoor environments.
