APC KVM 2G Server Module - KVM-HDMIVMCAC

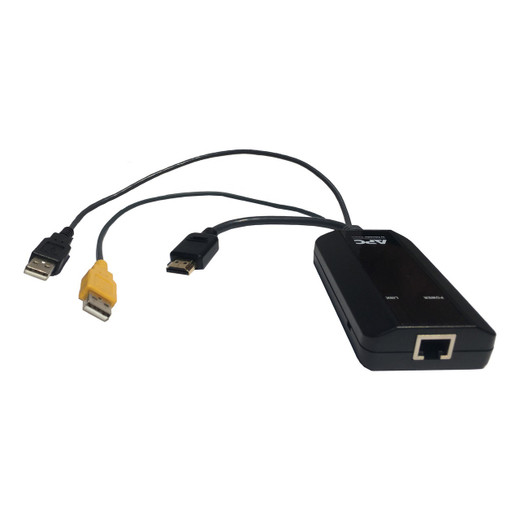

APC by Schneider Electric KVM-HDMIVMCAC HDMI KVM 2G Server Module

Overview

The APC by Schneider Electric KVM-HDMIVMCAC is a 2nd-generation KVM server module designed for use within APC by Schneider Electric KVM infrastructure environments. It provides the server-side connection point in a KVM-over-IP architecture, allowing administrators to remotely access and manage servers without a dedicated local console at each rack. The HDMI interface designation in the part number indicates this module targets servers with HDMI video output — a distinction that matters when ordering, since mixing module types across a KVM deployment can break compatibility.

At 0.29 lb and 0.55 inches in its primary dimension, the KVM-HDMIVMCAC is compact enough to install in tight 1U or blade environments without consuming additional rack space. Its operating altitude rating of 0 to 10,000 ft means it functions reliably in both sea-level data centers and high-altitude facilities — relevant for edge deployments in mountainous regions or elevated facilities.

Key Features

• HDMI Video Interface: Connects to servers equipped with HDMI outputs — verify your server's video port before ordering. Ordering a VGA or DisplayPort variant by mistake means a return and delayed deployment.
• 2nd Generation (2G) Architecture: The 2G designation aligns this module with APC's current-generation KVM switch platform. Mixing 1G and 2G modules on the same switch is not supported — confirm your KVM switch generation before deploying.
• Low Profile Form Factor (0.55 in): Minimal physical footprint allows installation in space-constrained server environments without displacing adjacent hardware or requiring additional mounting hardware.
• Lightweight at 0.29 lb: Easy single-technician installation; no strain on server I/O panel. Useful in high-density deployments where dozens of modules are installed during a single maintenance window.
• Operating Altitude 0–10,000 ft: Validated for use in elevated-altitude data centers and edge facilities — no derating or special cooling considerations within this range.
• Black Finish: Standard rack-equipment black; blends cleanly into typical 19-inch rack environments without visual clutter.

Integration and Compatibility

The KVM-HDMIVMCAC is designed for APC by Schneider Electric KVM-over-IP switch platforms that support 2G server modules. Before deploying, confirm: (1) your KVM switch supports 2G modules, (2) the target server has an available HDMI port, and (3) your KVM cabling and accessories match the module's connector type. This module does not operate as a standalone device — it requires a compatible APC KVM switch to function. For environments with a mix of HDMI and VGA servers, APC offers alternate module variants; do not assume cross-type interoperability within the same chassis.

For data center deployments planning a full server management and remote access architecture, pairing this module with the correct APC KVM switch and appropriate IP access licenses ensures the full remote-console capability is available without additional hardware changes at the rack level.

Frequently Asked Questions

Q: What KVM switch is the KVM-HDMIVMCAC compatible with?

A: The KVM-HDMIVMCAC is designed for APC by Schneider Electric KVM-over-IP switches that support 2nd-generation (2G) server modules. Consult your APC KVM switch documentation to confirm 2G module support before ordering.

Q: Does the KVM-HDMIVMCAC work with VGA or DisplayPort servers?

A: No. The HDMIVMC designation indicates an HDMI interface. For VGA or DisplayPort servers, a different APC KVM server module variant is required. Verify your server's video output type before selecting a module.

Q: Can the KVM-HDMIVMCAC be used as a standalone KVM adapter?

A: No. This is a server-side module for use within an APC KVM-over-IP system. It requires a compatible APC KVM switch to operate.

Q: What is the operating altitude range for the KVM-HDMIVMCAC?

A: The module is rated for operation from 0 to 10,000 ft altitude — suitable for standard data centers and elevated-altitude edge facilities within that range.

Q: What does the KVM-HDMIVMCAC weigh, and how compact is it?

A: It weighs 0.29 lb and has a primary dimension of 0.55 inches, making it well-suited for tight rack environments and high-density server deployments.

Ted Perry

The KVM-HDMIVMCAC is one of those parts that looks trivial on a purchase order but causes real delays when ordered wrong. The HDMI interface designation is the critical selection variable here — if your server bay has a mix of HDMI and legacy VGA outputs, you need separate module SKUs for each, and swapping them in the field is a service ticket, not a five-minute fix.

Technical Highlights:

• 2G Platform Alignment: The 2nd-generation designation means this module belongs to APC's current KVM switch generation. A 1G switch and 2G module will not interoperate — this is the most common ordering mistake in mixed-generation APC KVM environments.
• 0.55 in Form Factor: The compact profile allows this module to seat cleanly behind a server's HDMI port without physically conflicting with adjacent PCIe cards or power connectors — relevant in 1U and blade chassis where clearance is measured in millimeters.
• 0–10,000 ft Altitude Rating: Explicitly covers high-altitude colocation and edge sites without requiring derating or additional thermal planning. Most 1U peripheral modules don't publish this spec at all — APC does.

Deployment Considerations:

• This module does not function independently. It must be paired with a compatible APC KVM-over-IP switch that explicitly supports 2G server modules — verify the switch model and firmware before installing across a full rack deployment.
• The HDMI interface is the defining constraint: confirm every target server has an accessible, unobstructed HDMI port. Servers with HDMI blocked by GPU brackets or rack-rail hardware will require physical adjustments before the KVM-HDMIVMCAC can be seated.

Best fit for APC KVM-over-IP deployments in corporate data centers or colocation environments where servers expose HDMI video and the switch infrastructure is already standardized on APC 2G platform components.
