APC KVM 2G Analog 1 Local User 16 POR - KVM0116A

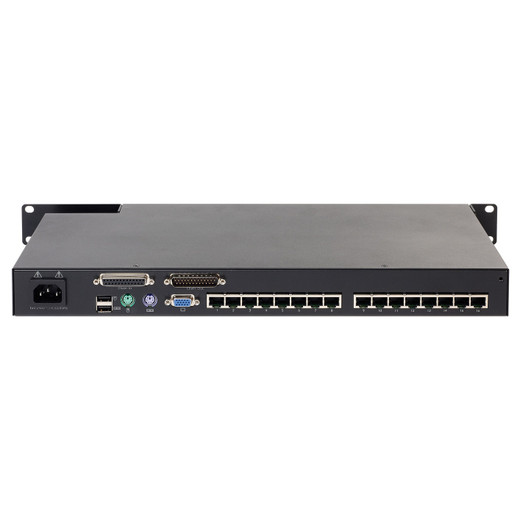

APC by Schneider Electric KVM0116A 16-Port Analog Rack KVM Switch

Overview

The APC by Schneider Electric KVM0116A is a 16-port, single-user analog KVM switch built for 1U rack deployments where a local operator needs direct console control over up to 16 servers or networked devices. It supports both PS/2 and USB console connections alongside a VGA video port, making it compatible with a broad range of legacy and current server hardware without requiring additional adapters for mixed environments. If you're managing a compact server room, a remote office rack, or a secondary KVM tier in a larger infrastructure, this unit handles the job without adding rack depth or complexity. Browse the full APC by Schneider Electric catalog for complementary power and infrastructure solutions.

Key Features

• 16-Port Server Control: Consolidates console access to 16 devices from a single 1U switch — eliminates the need for 16 individual keyboard/monitor/mouse sets at the rack, which matters in dense deployments where physical space and cable management are real constraints.
• 1600 × 1200 Maximum Resolution: Supports UXGA output, which keeps text sharp on larger console monitors and ensures you're not squinting at compressed video when running diagnostics or BIOS-level configuration. Most competing analog KVMs cap at 1280×1024, so this headroom is useful if your console monitor supports it.
• PS/2 and USB Console Ports: Dual PS/2 ports plus 2× USB 2.0 give you flexibility to connect either legacy PS/2 keyboards and mice or modern USB peripherals at the console side — no forced hardware refresh just to add this switch to an existing rack. This is the spec to check first if your console station is still PS/2-based.
• VGA Console Video: A single VGA (D-Sub) port drives the local console monitor. Standard connector, broadly compatible — no DisplayPort or HDMI adapter chain needed for most server room monitor setups.
• RS-232 Console Port: The included RS-232 serial port supports out-of-band console management, useful when the primary video path is down or when integrating into a serial console server for remote access beyond what the KVM itself provides.
• 1U Rack Form Factor: Mounts in a single rack unit, keeping your switch tier from eating valuable RU space. In a 42U rack this difference between 1U and 2U can free up meaningful space for additional compute or storage.
• LED Indicators: Front-panel LEDs give at-a-glance status on active port selection without requiring you to navigate an OSD menu to confirm which server is currently live — practical during fast incident response.
• 0–50°C Operating Range: Handles standard data center and server room ambient temperatures. Not rated for industrial or outdoor use — keep it in a conditioned environment.
• Broad Certification Stack: Carries UL 60950-1, cUL, CE, FCC Part 15 Class A, VCCI Class A, C-tick, GOST, ICES-003, UL-AR, and VDE certifications, plus RoHS compliance. Covers North American, European, Australian, Russian, and Japanese market requirements — relevant if you're deploying into multi-region enterprise environments or need compliance documentation for audits.

Integration & Compatibility

The KVM0116A fits into KVM switch deployments using standard CAT5 or dedicated KVM cabling depending on the server-side module selected. The console side accepts PS/2 keyboard/mouse via the dual PS/2 ports or USB peripherals via the two USB 2.0 ports — you won't need a separate USB-to-PS/2 adapter at the console if you're running a modern keyboard and mouse. For larger environments requiring more than 16 ports, this unit can be configured as a secondary tier in a cascaded KVM architecture. Pair it with a compatible rack management solution if you need remote access beyond local console. The RS-232 port integrates with serial console servers for out-of-band management chains. RoHS compliance makes it straightforward to deploy in regions with strict environmental materials regulations.

Frequently Asked Questions

Q: How many servers can the KVM0116A control?

A: The KVM0116A supports up to 16 computers or servers from a single local console station.

Q: What console connection types does the KVM0116A support?

A: The KVM0116A provides two PS/2 ports (keyboard and mouse), two USB 2.0 ports, and one VGA (D-Sub) video port at the console side, supporting both legacy PS/2 and modern USB peripherals.

Q: What is the maximum video resolution supported by the KVM0116A?

A: The KVM0116A supports a maximum resolution of 1600 × 1200 pixels (UXGA) at the local console.

Q: Does the KVM0116A support rack mounting?

A: Yes — the KVM0116A is designed for 1U rack mounting, fitting into standard 19-inch equipment racks.

Q: What certifications does the KVM0116A carry?

A: The KVM0116A is certified to UL 60950-1, cUL, CE, FCC Part 15 Class A, VCCI Class A, C-tick, GOST, ICES-003, UL-AR, and VDE standards, and is RoHS compliant.

Q: What operating temperature range does the KVM0116A support?

A: The KVM0116A operates between 0°C and 50°C (32°F to 122°F), suitable for standard conditioned data center and server room environments.

Marty Allison

The KVM0116A is a straightforward analog KVM that earns its place in small-to-mid server room builds — specifically because it pairs a 16-port capacity with a 1U footprint and a console side that accepts both PS/2 and USB, which saves a hardware refresh cycle in mixed-vintage racks. I've deployed units like this in secondary data closets where the priority is local hands-on access during outages, not IP remote sessions.

Technical Highlights:

• 1600 × 1200 Console Resolution: UXGA support is above the 1280×1024 ceiling common on older analog switches — keeps your console display usable if you're running a larger monitor and need legible text during BIOS diagnostics or OS-level triage.
• Dual PS/2 + 2× USB 2.0 Console Ports: Having both interface types at the console means you can connect whatever keyboard and mouse you have on the bench without sourcing adapters. Practically eliminates one friction point during a 2am incident response.
• RS-232 Console Port: The serial port is the underrated spec here — it lets you hook this into a serial console server for out-of-band access to the KVM itself, which matters when the primary video path is down and you need to switch ports remotely.

Deployment Considerations:

• This is an analog, single-user local KVM — there is no built-in IP remote access module. If remote over-network console access is a hard requirement, plan for a separate IP KVM or a serial console server paired with this unit rather than expecting that capability here.
• The 0–50°C operating range covers conditioned data center and server room environments, but this is not rated for industrial edge locations without climate control — factor that in before deploying in a warehouse or manufacturing floor comms cabinet.

Best fit for a secondary server room, a branch office rack, or a colocation cage where a local technician handles physical console work and 16 ports covers the full device count — the KVM0116A keeps that job simple without wasting a 2U slot.
