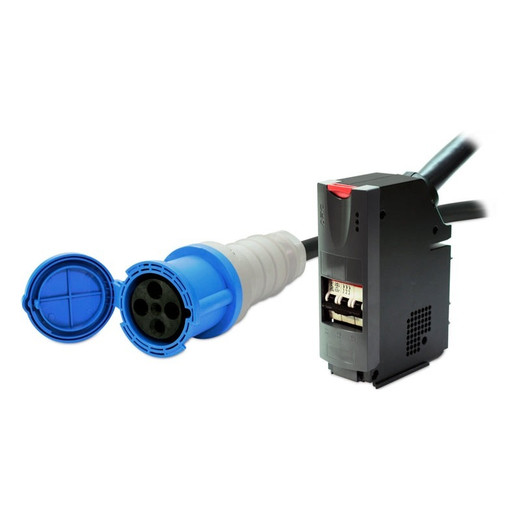

APC IT Power Distribution Module 3 Pole 4 Wire 60A IEC309 320CM - PDM3460IEC309-320

APC by Schneider Electric PDM3460IEC309-320 Concise Descriptor

Overview

The APC by Schneider Electric PDM3460IEC309-320 is a 3-pole, 4-wire power distribution module designed for high-density IT rack environments. It provides a robust 60A capacity, ensuring reliable power delivery to critical equipment. This module is essential for consolidating power feeds and simplifying wiring within server racks, particularly in data centers or network closets where power density is a concern. The PDM3460IEC309-320 utilizes an IEC309 320CM connector for input power, a standard in many high-amperage applications.

Compatibility

This power distribution module is designed to integrate with standard 19-inch rack systems. It is compatible with APC's NetShelter SX and AR series racks, as well as other racks supporting standard 19-inch equipment. The IEC309 320CM input connector requires a matching IEC309 320CM plug on the incoming power source, typically found on dedicated high-amperage circuits or UPS outputs. It is suitable for powering a variety of IT equipment, including servers, network switches, and storage devices within these compatible rack infrastructures.

Installation Notes

Installation requires a qualified electrician to ensure proper connection to the 60A, 3-pole, 4-wire power source. The IEC309 320CM connector must be securely mated to prevent power loss or arcing. Torque specifications for terminal connections should be followed as per the manufacturer's guidelines to ensure a safe and reliable installation. Ensure adequate ventilation around the rack to dissipate heat generated by the connected equipment and the distribution module itself.

What's in the Box

• 1x APC by Schneider Electric PDM3460IEC309-320 Power Distribution Module
• 1x IEC309 320CM input power cord
• 1x Installation Guide
