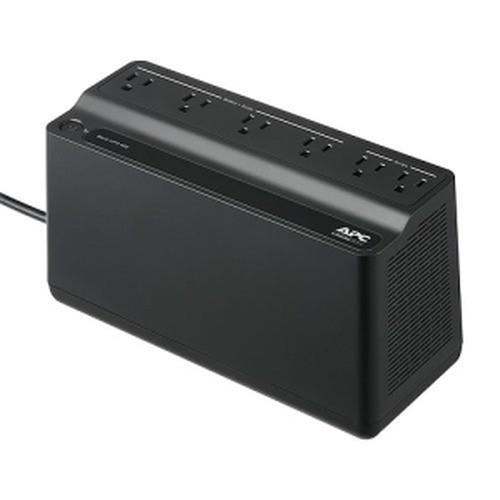

APC by Schneider Electric BN450M 450VA Standby UPS 6-Outlet Desktop
Overview
The APC by Schneider Electric BN450M is a 450VA/255W standby UPS designed for desktop and small-office power protection — the right pick when you need a reliable, no-frills backup power unit for security appliances, small NVRs, IP phone systems, or workstations drawing under 255W. It ships with six NEMA 5-15 outlets, accepts standard 120V input via a NEMA 5-15P plug, and keeps connected equipment running through short outages with a typical 6ms transfer time. At 5.7 lb and 5.51 inches wide, it sits flat on a desktop without rack-mounting hardware. Explore the full UPS and battery backup category for comparison models.
Key Features
- 450VA / 255W Capacity: Size this against your actual load — 255W is the hard ceiling. A single IP camera NVR drawing 80W plus a PoE switch at 150W lands at 230W, within budget. Push past 255W and the unit won't carry the load safely. Use the VA/W figures to plan actual runtime, not marketing claims.
- Standby Topology with 6ms Typical Transfer: Standby (offline) UPS means the inverter only kicks in on power loss. Transfer is rated at 6ms typical, 10ms maximum — fast enough for virtually all switching power supplies, which typically tolerate 16–20ms gaps. If your gear includes line-interactive or on-line requirements (medical, some industrial PLCs), this topology is not the right fit.
- Square Wave Output: The BN450M outputs a square wave (not pure sine) when on battery. Most switching-mode power supplies in routers, access points, NVRs, and IP cameras tolerate square wave without issue. Active PFC power supplies — common in higher-end workstations and some servers — may not. Verify your equipment's PSU type before deploying.
- Six NEMA 5-15 Outlets: Six outlets on a single unit gives you room to protect the NVR, a PoE switch, a monitor, and auxiliary gear from one UPS without a power strip daisy-chain. All six outlets are protected; battery-backed outlet count is not separately broken out in the published specs — confirm with the datasheet if battery-only outlet segmentation matters to your install.
- 88–139V Input Tolerance: The unit auto-senses input voltage and handles a wide 88–139V range without switching to battery. Browndown to 88V (common during peak summer grid stress) stays on utility power, preserving battery runtime for true outages rather than wasting cycles on shallow sags.
- LED Status Display: The front LED panel shows on-line vs. on-battery status at a glance — no software agent required for basic status monitoring. For remote monitoring or SNMP integration, check whether a network management card slot is available on this model before speccing it into a managed environment.
- 50/60 Hz Auto-Sensing: Input frequency auto-detects at 50 or 60 Hz ±3 Hz, making the BN450M usable in both North American and international 120V installations without manual reconfiguration.
- Operating Altitude to 10,000 ft: Rated for altitudes up to 10,000 feet — relevant for installations in mountain-region facilities, high-elevation data closets, or remote surveillance sites where standard UPS ratings sometimes derate at elevation.
- Compact Non-Rack Form Factor: At 5.51 in wide and 5.7 lb, this unit is desktop/shelf-mount only — not rack-mountable. Plan accordingly if your installation is a 1U or 2U rack environment; a rack-form UPS in the rack-mount UPS lineup would be the right substitute.
Integration & Compatibility
The BN450M connects upstream via a standard NEMA 5-15P plug — compatible with any standard 15A 120V circuit. The 5A maximum input current draw means it won't trip a 15A breaker even at full load. Downstream, the six NEMA 5-15 outlets accept standard North American plugs from network switches, NVRs, IP cameras on local power, access control panels, and similar commercial security hardware. For installations requiring PoE switches as part of the protected load, confirm the switch's total power draw stays under the 255W/7A switching current capacity.
This UPS does not include a USB or serial management port based on available published specifications — if runtime monitoring, graceful OS shutdown, or SNMP alerting is required, verify management connectivity before purchase. For fully managed power protection with shutdown software, review APC's Back-UPS Pro or Smart-UPS families in the broader APC by Schneider Electric lineup.
Frequently Asked Questions
Q: What is the maximum load the BN450M can support?
A: The BN450M is rated for 450VA / 255W maximum. Keep your connected equipment's total draw under 255W for reliable operation. Exceeding this rating risks overload shutdown.
Q: Does the BN450M output a pure sine wave when on battery?
A: No. The BN450M produces a square wave output when running on battery. This is compatible with most switching-mode power supplies found in NVRs, routers, IP cameras, and access control hardware. Equipment with active PFC power supplies may not operate correctly on square wave — check your PSU specifications before deploying.
Q: How fast does the BN450M switch to battery on a power failure?
A: Transfer time is 6ms typical, 10ms maximum. Most switching power supplies tolerate transfer gaps up to 16–20ms, so the BN450M's transfer speed is well within the tolerance range for standard commercial electronics.
Q: Is the BN450M rack-mountable?
A: No. The BN450M is a desktop/shelf-mount unit and is not rack-mountable. If you need a rack-form UPS, look at APC's rack-mount UPS models in the same product family.
Q: What input voltage range does the BN450M accept?
A: The BN450M accepts 88–139V input at 120V nominal, with auto-sensing frequency detection at 50 or 60 Hz ±3 Hz. It will ride through browndowns as low as 88V without switching to battery.
Q: Can the BN450M be used at high altitudes?
A: Yes. The BN450M is rated for operating altitudes up to 10,000 feet, making it suitable for high-elevation facilities and remote installations.
The BN450M covers the most common small-site power protection gap I see in security installs: a single NVR or access control panel on a standard 120V outlet with no battery backup at all. At 450VA/255W, the BN450M handles a typical 4–8 channel NVR plus a small PoE switch and leaves enough headroom to avoid nuisance overload trips during inrush.
Technical Highlights:
- 6ms Transfer Time: At 6ms typical (10ms max), this unit switches faster than most switching power supplies drop out — meaning your NVR or access panel won't reboot on a clean transfer. That matters for systems that log a tamper event on every unexpected restart.
- 88–139V Input Window: A wide tolerance band means the unit stays on utility power through the browndowns that trip up narrower-window UPS designs — common in older commercial buildings with marginal wiring. Battery cycles are preserved for real outages.
- 255W Hard Ceiling: The math is straightforward: sum your connected loads before you order. A 100W NVR, an 80W 8-port PoE switch, and a 40W monitor = 220W — fine. Add a second switch and you're over. No headroom for field changes once it's wired in.
Deployment Considerations:
- Square wave output is the single most common compatibility issue I field calls about. Verify every PSU in the protected load is not an active PFC type — this is the one spec that bites integrators who spec the BN450M into mixed workstation/NVR environments without checking.
- The unit has no published USB or serial management port. If the site requires graceful shutdown on extended outage or SNMP visibility into battery health, this model does not provide it — plan for a higher-tier UPS with management options or accept manual monitoring via the front LED only.
The BN450M is a strong fit for small retail or branch-office security closets where the protected load is a single NVR and a small switch, the budget is tight, and a desktop form factor on a shelf is the practical install option. It is not the right call for rack environments, active-PFC servers, or any site requiring remote UPS monitoring.
