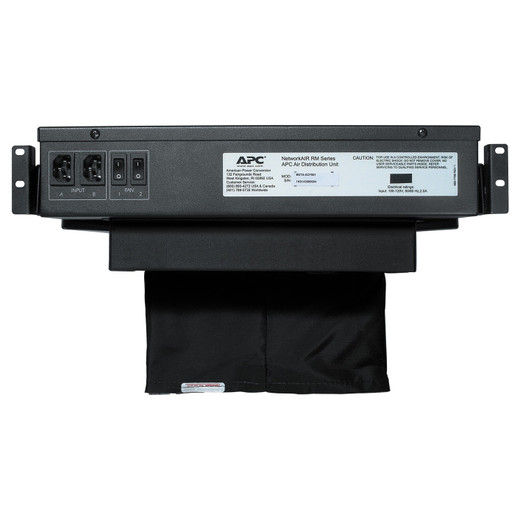

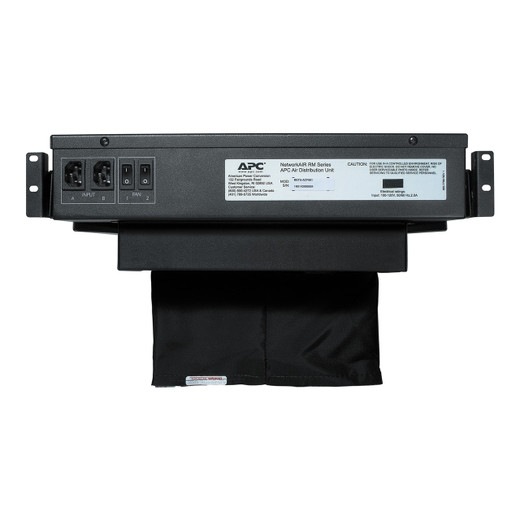

APC AIR Distribution Unit - FAN Unit - Black - 2 U - ACF002

APC by Schneider Electric ACF002 2U Rack Air Distribution Fan Unit

Overview

The ACF002 is a 2U rack-mounted rack cooling fan distribution unit from APC by Schneider Electric designed to improve directed airflow management within standard equipment racks. At 41.09 lb and built for 208V or 230V input, the ACF002 is a commercial-grade unit suited to data centers, server rooms, and equipment rooms where thermal management directly affects uptime. If your rack is pulling ambient air unevenly or hot-spotting around dense 1U/2U compute equipment, an active distribution unit like this addresses the root cause rather than relying on passive convection.

Key Features

• 2U Rack Form Factor: Occupying 2 rack units, the ACF002 fits standard 19-inch rack enclosures without consuming excessive vertical space — relevant when rack density is already high and every U counts.
• 208V / 230V Input Compatibility: Dual-voltage input (208V and 230V) means this unit works in both North American three-phase environments and international single-phase 230V deployments without requiring a separate transformer or PDU adapter — reduces installation complexity in mixed-voltage facilities.
• 41 lb Constructed Weight: At 41.09 lb (18.64 kg), the ACF002 is a substantively built unit. Verify that your rack's weight capacity accounts for this before mounting, particularly in partially loaded mid-depth racks where weight distribution matters for stability.
• Black Finish: Matches standard black rack enclosures common in data center infrastructure deployments — no cosmetic mismatch in open-frame or glass-door rack configurations.
• Rack-Mounted Installation: Designed exclusively for rack-mount deployment. There is no wall-mount or floor-stand option; the unit requires a compatible rack with appropriate rail or shelf support to bear the 41 lb load.

Integration & Compatibility

The ACF002 is designed for use within APC rack systems and standard 19-inch third-party enclosures that support 2U accessories. At 208V/230V input, it integrates with facility power at the rack PDU level — confirm your PDU output matches the unit's voltage requirement before provisioning. No low-voltage or PoE PoE switch integration applies; this is a dedicated thermal unit drawing directly from rack power.

Frequently Asked Questions

Q: What input voltage does the ACF002 require?

A: The ACF002 supports 208V and 230V input. Verify your rack PDU or facility circuit matches one of these voltages before installation.

Q: How many rack units does the ACF002 occupy?

A: The ACF002 is a 2U device, occupying two rack units in a standard 19-inch rack enclosure.

Q: What does the ACF002 weigh?

A: The unit weighs 41.09 lb (18.64 kg). Confirm your rack's maximum weight capacity before installation, especially in high-density configurations.

Q: Can the ACF002 be wall-mounted or floor-standing?

A: No. The ACF002 is designed for rack-mount installation only and requires a compatible 19-inch rack enclosure.

Q: What color is the ACF002?

A: The ACF002 is finished in black, matching standard black rack enclosures.

Ted Perry

The ACF002 addresses one of the most overlooked variables in rack deployments: airflow distribution. At 41.09 lb and drawing 208V or 230V, this is not a lightweight passive spacer — it is a purpose-built active unit, and that weight tells you something about the construction quality APC brought to it. When I see integrators cramming dense 1U compute into a rack and wondering why equipment is throttling or alarming on thermals, the gap is almost always directed airflow, not ambient room temperature. The ACF002 targets exactly that gap.

Technical Highlights:

• Dual Voltage Input (208V / 230V): Eliminates voltage-matching friction in mixed facilities — one SKU covers both North American three-phase and international 230V single-phase circuits without additional adapters.
• 2U Rack Height: Two rack units is a reasonable footprint for an active thermal component; it won't consume a disproportionate share of rack space relative to the thermal benefit delivered in dense configurations.
• 41.09 lb Unit Weight: Heavier than passive blanking panels by design — the mass reflects the fan assembly and housing construction. Rail or shelf support must be rated to handle this load; do not rely on front-panel rack ears alone for a unit this heavy.

Deployment Considerations:

• Confirm rack rail compatibility and weight capacity before mounting — at 41 lb, this unit needs solid mid-rail support, not just front-ear attachment, to avoid stress on the rack frame over time.
• The 208V/230V input requirement means this unit will not run on standard 120V North American branch circuits — a common oversight when repurposing it from an international deployment into a domestic one.

The ACF002 is the right call for equipment rooms and data center rows where high-density 1U and 2U servers are generating concentrated heat loads and passive convection is no longer keeping pace — specifically when the facility already runs 208V or 230V rack power infrastructure.
