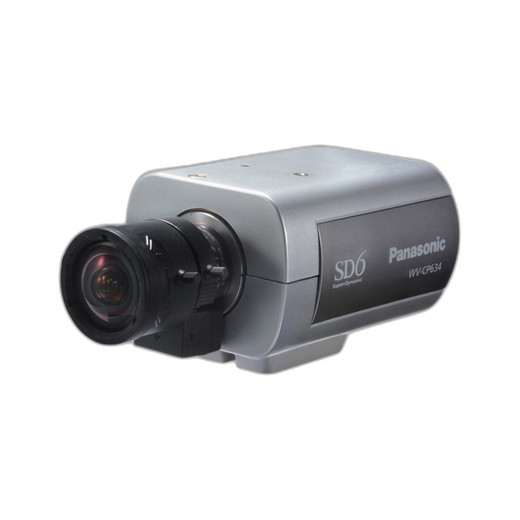

i-PRO WV-CP634 Analog Indoor Box Camera
The i-PRO WV-CP634 is a compact analog box camera built for indoor surveillance systems requiring flexible lens selection and reliable low-light imaging. This 1/3-inch interline transfer CCD delivers 700 TV lines typical resolution—the standard measure for analog surveillance—with Super Dynamic 6 technology that fuses dynamic range expansion and Adaptive Black Stretch (ABS) to maintain detail in mixed-lighting scenes. The camera accepts optional Panasonic lenses (WV-LZA61/2S, WV-LZ62/8S, or equivalents meeting ø20 mm diameter and 5.5 mm back-focus specs), letting you tailor field of view to your deployment without changing camera bodies.
The WV-CP634 operates on 24V AC or 12V DC power—no separate power supply overhead required for most installs. IR and Day/Night capability sustain surveillance across low-light periods; sensitivity reaches 0.08 lux (color) and 0.008 lux (B/W) at F1.4, with auto IR cut-filter switching to maximize B/W sensitivity when needed. Video Motion Detection (VMD) triggers alarms on detected movement, reducing false alerts in stable scenes. Auto Image Stabilizer compensates for minor vibration—useful in facilities subject to HVAC or vehicle vibration. Electronic shutter spans 1/100 to 1/12,000 sec (NTSC); electronic sensitivity enhancement scales up to 512x in fixed mode or 32x auto mode. Adaptive Digital Noise Reduction (2D and 3D) cleans noisy low-light feeds without losing edge detail.
The compact box form factor (75 mm W × 65 mm H × 132.5 mm D) fits ceiling or wall mounts in tight spaces—retail ceilings, office entry vestibules, lobby corners, and warehouse overheads where a dome would protrude. Operates reliably from –10°C to +50°C (14°F to 122°F), covering climate-controlled retail and unconditioned storage equally. As an analog camera, it integrates directly into existing DVR and hybrid VMS systems via standard coaxial cabling. Internal synchronization, line-lock, and over-coaxial data communication keep installation straightforward.
Compatibility
The WV-CP634 is a standalone analog camera—it connects directly to any DVR, hybrid NVR, or analog-input video capture system supporting composite video (75Ω coaxial). Lens compatibility is limited to Panasonic optics meeting the dimensional specs (20 mm diameter, 5.5 mm back-focus maximum). Confirm your DVR's composite input supports NTSC or PAL video format to match your camera revision.
What's in the Box
- 1x CD-ROM (Operating Instructions)
- 1x Power Cord Plug (for WV-CP634)
- 1x Installation Guide
