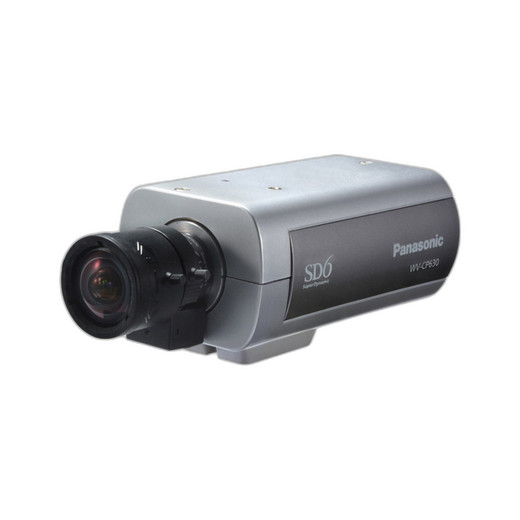

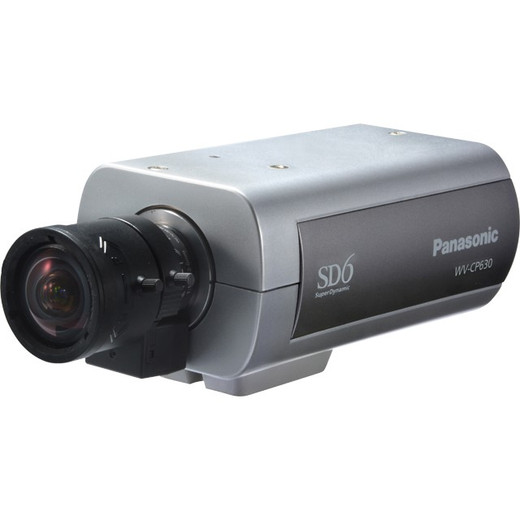

i-PRO WV-CP630 Analog Indoor Box Camera
Overview
The i-PRO WV-CP630 is a compact analog box camera purpose-built for fixed-position indoor surveillance in traditional CCTV infrastructure. Built around a 1/3-inch interline transfer CCD image sensor, it delivers 700 TV lines of resolution—a practical baseline for retail floors, office corridors, and storage areas feeding DVR or hybrid systems via coaxial BNC output. The WV-CP630 integrates IR illumination with automatic day/night switching, achieving 0.08 lux in color mode and 0.008 lux in monochrome at F1.4—meaning most indoor spaces require no supplementary lighting. Super Dynamic 6 fusion with Adaptive Black Stretch (ABS) handles mixed lighting scenarios without the halo artifacts that plague basic WDR implementations. Video Motion Detection (VMD) triggers local alarms and provides event notifications without requiring external processing hardware.
Compatibility
The WV-CP630 accepts optional Panasonic-mount lenses, specifically the WV-LZA61/2S and WV-LZ62/8S series, or any third-party lens meeting ≤ø20 mm (25/32") diameter and ≤5.5 mm (7/32") back focal distance specifications. Output is standard composite video via BNC connector, integrating directly into any legacy or hybrid CCTV system (DVR platforms, coaxial matrix switchers, analog recorders) without requiring IP gateways or protocol conversion. The camera is analog-only—no ONVIF, no IP streaming, no network integration. It operates across –10°C to +50°C (14°F to 122°F), suitable for climate-controlled indoor spaces and unheated storage facilities experiencing mild seasonal temperature swing.
Installation Notes
The WV-CP630 requires 120V AC power (220–240V AC and 24V AC/12V DC variants exist in the WV-CP634 series). Coaxial cable supports remote iris and focus control from compatible DVR control panels. Auto Back Focus (ABF) simplifies initial setup and maintains stable focus in both color and monochrome modes without manual adjustment. Measuring 75 mm (W) × 65 mm (H) × 132.5 mm (D), the compact box form factor fits tight ceiling cavities and wall-mount positions where larger turret or dome housings cannot fit.
What's in the Box
- 1x WV-CP630 camera unit
- 1x Power Cord (120V AC)
- 1x CD-ROM (Operating Instructions)
- 1x Installation Guide
