QNAP AMD Ryzen PRO 7645 6-CORE/12 Thread - TVS-H877AX-R5-16G-US

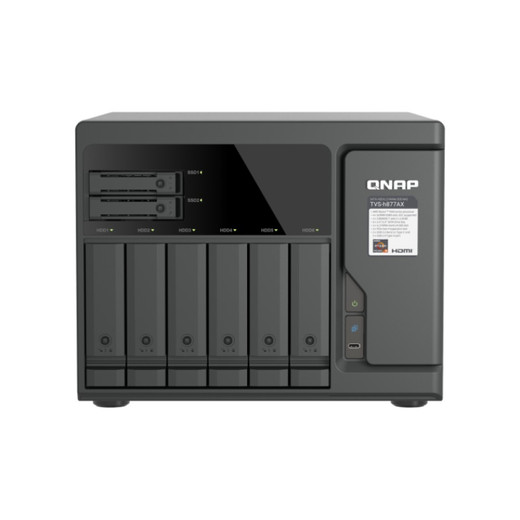

QNAP TVS-H877AX-R5-16G-US 8-Bay Enterprise ZFS Hybrid Desktop NAS

The QNAP TVS-H877AX-R5-16G-US is an 8-bay hybrid desktop NAS built around AMD's Ryzen 5 PRO 7645 (Zen 4 architecture), delivering 6 cores and 12 threads with burst speeds up to 5.1 GHz — a meaningful jump for concurrent ZFS scrubs, snapshot operations, and virtualized workloads that would throttle on lower-core-count predecessors. If your team is running surveillance storage, file services, and VM hosting on the same box, the processor headroom is where you feel the difference. For more options in the NAS storage category, browse the full lineup.

Key Features

• AMD Ryzen 5 PRO 7645 — 6-Core/12-Thread, Burst to 5.1 GHz: Zen 4 architecture handles simultaneous ZFS RAID rebuilds, VM execution, and surveillance recording without the throughput degradation you see on ARM or Celeron-based NAS units. Burst clock matters during peak indexing or deduplication passes.
• 16 GB DDR5 UDIMM, 4 Slots, Up to 192 GB: Ships with 16 GB but the four UDIMM DDR5 slots expand to 192 GB (4x 48 GB), which is sufficient for in-memory caching on large ZFS pools or running multiple VMs. Optional ECC memory is supported — worth specifying for 24/7 unattended deployments where silent data corruption is a real risk. Note: dual-DIMM configurations require matched pairs per the hardware spec.
• 6x HDD + 2x U.2 SSD Hybrid Storage Bays: The U.2 slots let you tier fast NVMe SSDs as ZFS cache (L2ARC read cache or SLOG write cache) alongside spinning HDDs — a practical architecture for surveillance archives where metadata access is frequent but bulk video storage costs need to stay low.
• Dual 10GBASE-T + Dual 2.5GbE Networking: Four physical NICs means you can segment traffic — 10GbE for storage/VM networks, 2.5GbE for management or less demanding clients — without adding a separate switch. This matters in smaller deployments where a dedicated storage VLAN is still desirable but rack space is limited. See the network switches category for compatible PoE and managed options.
• 3x PCIe Gen 4 Expansion Slots: Adds flexibility for 25GbE NICs, additional U.2/M.2 storage controllers, or GPU accelerator cards for AI-driven analytics offload. PCIe Gen 4 bandwidth (roughly double Gen 3) means a dual-port 25GbE NIC won't be bandwidth-limited by the slot itself.
• AMD Radeon Integrated Graphics: Enables direct HDMI/DisplayPort console access for local administration without a separate GPU — useful during initial commissioning or when remote access is unavailable.

Integration and Compatibility

The TVS-H877AX-R5-16G-US runs QNAP's QTS Hero operating system, which is built on a ZFS foundation — providing native data integrity checksums, copy-on-write snapshots, and inline compression that traditional NAS file systems lack. The PCIe Gen 4 slots support QNAP expansion cards for 25GbE connectivity or additional NVMe storage. For organizations evaluating network video recorders versus NAS-based surveillance storage, this unit bridges both roles via QNAP's QVR surveillance application stack. Pair with a PoE switch for camera-side power and network segmentation. Review the NAS selection guide for capacity and performance sizing before committing to a storage tier.

Frequently Asked Questions

Q: How many drives does the TVS-H877AX-R5-16G-US support?

A: It supports 6x 3.5"/2.5" HDD/SSD bays plus 2x U.2 NVMe SSD slots, for a total of 8 storage devices.

Q: Does the TVS-H877AX-R5-16G-US support ECC memory?

A: Yes. The four DDR5 UDIMM slots support optional ECC memory. For dual-DIMM configurations, matched pairs are required per the hardware specification.

Q: What is the maximum RAM for the TVS-H877AX-R5-16G-US?

A: 192 GB, using four 48 GB DDR5 UDIMM modules.

Q: Can the TVS-H877AX-R5-16G-US be used as a surveillance NAS?

A: Yes. The unit supports QNAP's QVR surveillance application suite. The dual 10GbE ports and PCIe Gen 4 expansion slots provide the throughput needed for high-channel-count camera recording.

Q: What network speeds does the TVS-H877AX-R5-16G-US provide?

A: Two 10GBASE-T and two 2.5GbE ports are built in. Additional 25GbE or higher-speed NICs can be added via the three PCIe Gen 4 slots.

James Everett

The spec I keep coming back to on the TVS-H877AX-R5-16G-US is the 192 GB DDR5 ceiling across four slots — that is unusually generous for a desktop-form NAS and changes what you can run in-memory. Most ZFS NAS units in this class top out at 64–128 GB, which forces you to make hard tradeoffs between ARC cache size and VM RAM allocation.

Technical Highlights:

• Zen 4 / 5.1 GHz Burst: The Ryzen 5 PRO 7645 handles concurrent ZFS operations (scrub, snapshot, dedup) plus active VM workloads without the CPU contention that shows up on quad-core Celeron-based NAS units under mixed load.
• U.2 Hybrid Tiering: Two U.2 NVMe slots pair with the 6 HDD bays to support ZFS SLOG and L2ARC caching — a genuine tiered storage architecture, not just fast primary drives. Latency-sensitive workloads (databases, VM OS volumes) sit on NVMe while bulk video archive stays on spinning HDDs.
• 3x PCIe Gen 4: Double the per-lane bandwidth of Gen 3 means a dual-port 25GbE NIC runs at full line rate from the slot — no bandwidth bottleneck between NIC and CPU when you're pushing high-density surveillance streams.

Deployment Considerations:

• ECC memory is optional, not default — if this unit is going into an unattended 24/7 environment (surveillance archive, medical imaging), spec the ECC DIMMs at purchase rather than retrofitting later; matched pairs are required for dual-DIMM configs.
• Desktop form factor means no tool-less rack ears included. Confirm your rack or shelf mounting plan before deployment — this is not a standard 1U/2U chassis.

Best fit for a mid-sized physical security operation running 32–64 IP cameras where a single ZFS NAS needs to handle concurrent recording, 30-day retention, and on-box video analytics without a separate server for the compute layer.
