Altronix ALTX/MERC RK/8DR/EFLOW/FUSE - T2RM7F8S

Altronix T2RM7F8S Concise Descriptor

Overview

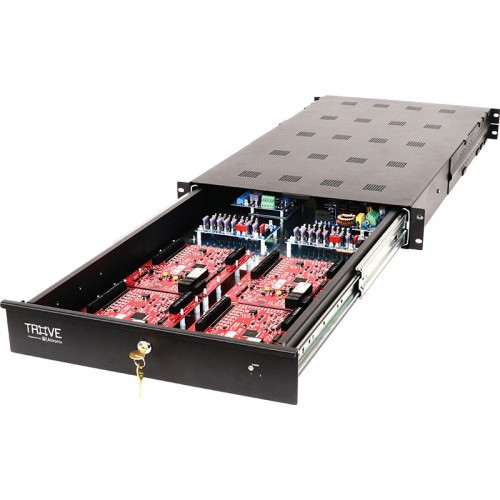

The Altronix T2RM7F8S is a 1U rack-mountable power distribution module designed to efficiently deliver regulated power to multiple surveillance devices. It consolidates power delivery for up to eight cameras or other low-voltage equipment, simplifying installation and reducing cable clutter in rack-mounted systems. This unit is ideal for centralized power management in server rooms or head-end locations supporting extensive video surveillance deployments.

Compatibility

This power distribution module is compatible with a wide range of low-voltage surveillance equipment requiring 12VDC or 24VAC input. It is designed to work with Altronix power supply chassis and other rack-mounted surveillance systems where centralized power distribution is needed. Specific compatibility extends to devices that accept standard 2.1mm center-positive barrel connectors or screw terminal connections for power input, provided the voltage and current requirements are met.

Installation Notes

The T2RM7F8S mounts into a standard 19-inch rack, occupying 1U of vertical space. It requires a compatible Altronix power supply (sold separately) to provide the primary input voltage and current. Each of the eight outputs can be individually fused for protection and isolation. Installation involves connecting the main power supply output to the module's input terminals and then wiring each of the eight fused outputs to the connected devices. Ensure the total current draw of all connected devices does not exceed the capacity of the primary power supply or the individual fuse ratings.

What's in the Box

• 1x Altronix T2RM7F8S Rack Mount Power Distribution Module
• 1x Bag of Fuses (various ratings)
• 1x Installation Manual
