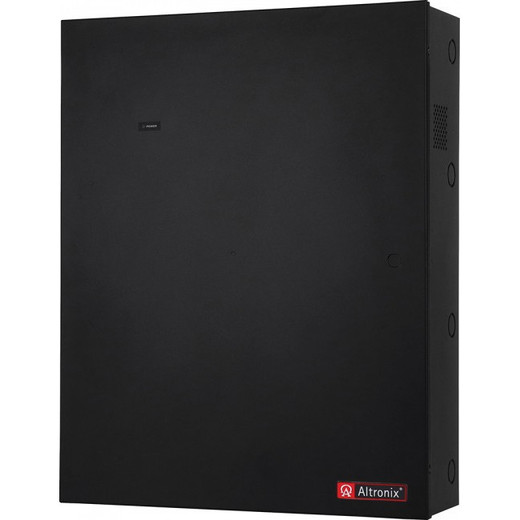

Altronix ALTX/MERC/12V@10A/8PTC/115V - T2MK5F8D

Altronix T2MK5F8D Power Distribution Module

Overview

The Altronix T2MK5F8D is an 8-channel power distribution module designed to provide regulated 12VDC power to multiple surveillance devices from a single source. This unit is ideal for consolidating power for cameras, access control readers, or other low-voltage equipment in a centralized location, simplifying wiring and management. Its 10A total output capacity allows for powering multiple devices simultaneously without voltage drop issues.

Compatibility

This module is designed to work with any 12VDC power source up to 10A. It is commonly integrated into systems utilizing Altronix power distribution enclosures and power supplies. The 8 individually fused PTC outputs ensure that a fault on one device does not impact others, making it compatible with a wide range of low-voltage security and surveillance equipment requiring 12VDC input.

Installation Notes

Each of the 8 outputs features a resettable 2.5A PTC (Positive Temperature Coefficient) fuse, providing overcurrent protection for individual channels. The module requires a 12VDC input and offers screw terminals for easy connection of both the input power and the individual device outputs. Proper wiring practices should be followed to ensure stable power delivery and prevent shorts.

What's in the Box

• 1x Altronix T2MK5F8D Power Distribution Module
