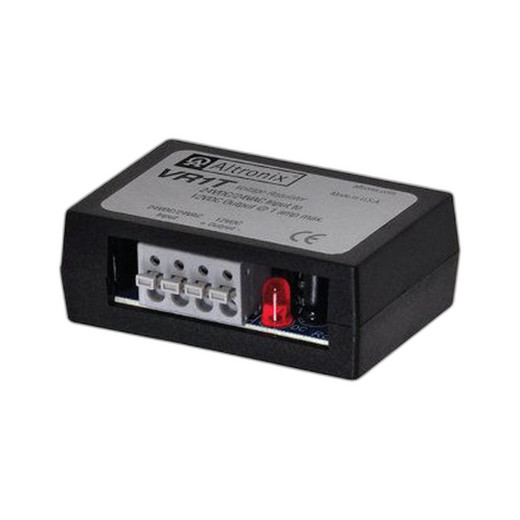

Altronix VR1T 24V to 12V Conversion Module
The Altronix VR1T is a compact voltage conversion module that steps down 24VAC or 24VDC input to regulated 12VDC output at 1A continuous current. This straightforward approach solves a common integration problem: powering 12V auxiliary devices (sirens, strobes, legacy sensors, access control readers) from a centralized 24V power infrastructure already deployed across your security system. Rather than run separate 12V lines or add another power supply, the VR1T mounts directly into a panel and converts on-site.
Key Features
- Accepts both 24VAC and 24VDC input: Flexibility to work with existing AC or DC supplies without rewiring—common in retrofit scenarios where the power source is already established and you simply need to adapt it.
- Regulated 12VDC output: Clean, stable voltage output eliminates the risk of over-voltage damage to sensitive 12V peripherals; regulation maintains performance even if input sags slightly.
- 1A continuous current capacity: Sufficient for most auxiliary devices (motion sensors, door strikes, indicator lights, small relay modules). At 12W maximum output, you won't overload a modest panel power budget.
- Compact form factor for panel integration: Mounts inside standard electrical enclosures alongside other control gear—no extra cabinet space required, keeping your installation footprint manageable.
- Lifetime Limited Warranty: Backs the device indefinitely under normal use conditions, reducing lifecycle cost and providing long-term peace of mind in 24/7 security deployments.
Integration & Compatibility
The VR1T belongs in any mixed-voltage access control or security system architecture. It works alongside power supplies and distribution modules to bridge 24V main infrastructure to 12V auxiliary loads. Because it accepts either AC or DC input, it integrates cleanly into systems powered by traditional transformer-based supplies (24VAC) or modern switching supplies (24VDC). Wire the input to your 24V source, connect your 12V loads to the regulated output, and you're done—no software configuration, no network dependencies.
When to Choose a Different Model
If your 12V load exceeds 1A continuous current, the VR1T will not meet your needs. Consider a higher-capacity converter within the Altronix power family, or run the 12V circuit as a separate branch from a dedicated 12V supply. Similarly, if you require active monitoring or remote status reporting of the conversion module itself, the VR1T is passive—it does not support network connectivity or relay feedback. For those requirements, examine supervised power distribution modules in the broader power infrastructure category.
Deployment Example
A typical warehouse access control retrofit: the facility already has 24VDC distributed to door readers and strike plates via centralized power. Three new keypad-operated 12V sirens need integration without major rewiring. Install one VR1T in the main security cabinet, run three short 18-gauge wires to the sirens, and the conversion happens locally. The 1A capacity easily handles three 250mA draws (the typical siren load) with headroom. No new breaker, no new supply, no redundant cabling—a clean addition to existing infrastructure.
Technical Context
Voltage regulation and current capacity are the two factors that determine whether a converter fits your job. The VR1T delivers both at an entry-level price point. Regulation ensures that loads designed for 12V nominal operation receive stable power, avoiding flickering LEDs, dropped sensor readings, or solenoid chatter. The 1A limit is the hard ceiling—measure your actual 12V load (add up all device current draws in amps) before ordering. If in doubt, contact the manufacturer or your system integrator for load analysis.
Expert Assessment
The VR1T is a no-nonsense workhorse for branch offices, retail sites, and warehouses where infrastructure already favors 24V but a handful of 12V peripherals must be added. Its dual-input tolerance (AC or DC) removes guesswork during installation. The compact footprint means it won't eat panel real estate. Lifetime warranty is a rare perk in passive components—it signals confidence in the design.
FAQ
Q: Can the VR1T handle a 24VAC input from a traditional transformer-based power supply?
A: Yes. The VR1T accepts both 24VAC and 24VDC input and regulates to 12VDC output regardless of the input type.
Q: What is the maximum continuous current output of the VR1T?
A: 1A continuous. That is 12W at 12VDC output. If your total 12V loads exceed 1A, you will need a higher-capacity converter.
Q: Is the VR1T mounting hardware included?
A: The VR1T is designed for panel mounting in standard electrical enclosures. Consult the datasheet or installation guide for specific mounting details and any required hardware.
Q: What warranty does the VR1T carry?
A: Lifetime Limited Warranty under normal use conditions.
Q: Does the VR1T support remote status monitoring or network integration?
A: No. The VR1T is a passive voltage converter with no network, relay, or monitoring outputs. It provides regulated 12VDC output only.
Q: Can I use the VR1T to power multiple devices on a single output?
A: Yes, provided the total current draw of all connected devices does not exceed 1A continuous. Parallel wiring of multiple 12V loads is common practice in security installations.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I evaluate the Altronix VR1T as a pragmatic fit for branch-office and warehouse access control retrofits where the primary power infrastructure is already 24V but you need to add a small number of 12V peripherals. The module's dual input tolerance—24VAC or 24VDC—removes a layer of pre-installation planning and makes it adaptable across older AC-based systems and newer DC supplies.
Technical Highlights:
- 1A continuous output capacity: 12W maximum power allows you to run up to three typical 250mA sirens, or a combination of smaller loads (door sensors, indicator strips, relay coils) without approaching the limit. This is enough for light auxiliary duty.
- Regulated output: Voltage regulation ensures stable 12VDC delivery regardless of whether input sags to 22V or peaks to 26V—a real benefit when the 24V supply is shared across multiple loads and fluctuation is normal.
- Compact panel mount form factor: No external enclosure, no cable harness, no mounting bracket gymnastics. Install it inside your existing cabinet alongside your main power distribution and access control panel. It consumes minimal space and requires only four field wires: input +, input −, output +, output −.
Deployment Considerations:
- Current capacity is the hard limit—measure your actual 12V load before ordering. If you have a door strike (500mA), a siren (250mA), and a status light (100mA) all on one branch, you are at 850mA and still within budget. Add a second siren and you exceed 1A, and the module will not support it.
- The VR1T is passive—it has no supervisory output, relay feedback, or network interface. If your specification requires monitoring or alerting when the conversion fails or input is lost, you will need a supervised power distribution module instead.
Position the VR1T in small to mid-market warehouse automation and access control installations where power infrastructure is centralized on 24V but legacy or newly specified 12V peripherals exist. Typical scenario: a three-door facility with existing 24V reader power, adding 12V keypads or strobes during a refresh. The VR1T is the cost-effective, space-efficient way to bridge that gap without a complete power redesign.
