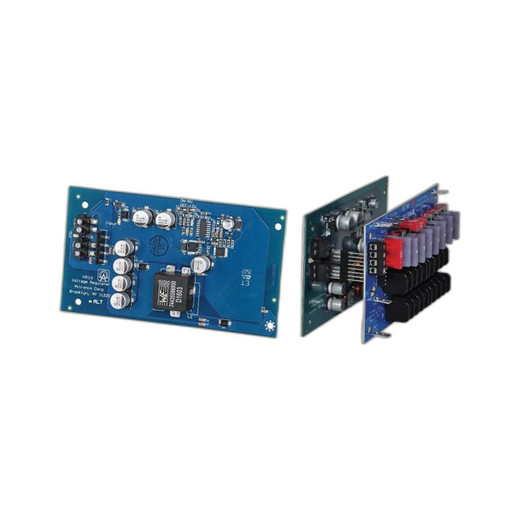

Altronix VR10 10A Voltage Regulator
The Altronix VR10 is a 10-ampere voltage regulator designed to convert 24VDC input to clean 12VDC output for security infrastructure. This compact unit protects downstream access-control devices, door locks, and gate operators from voltage sag and transient noise that can degrade relay response times and shorten solenoid life. In distributed security installations where a 24VDC backbone feeds multiple 12VDC subsystems, the VR10 eliminates the operational friction of dedicated power supplies at each endpoint.
Key Features
- 10-Ampere Output Capacity: Supports simultaneous load on multiple 12VDC access-control devices. 10A sustained delivery handles dual door strikes, gate operators, or mixed solenoid/relay loads without voltage sag.
- 24VDC to 12VDC Regulation: Converts 24VDC input to stable 12VDC output across variable load and input conditions. Eliminates undersized power-supply issues in retrofit installations.
- DIN Rail Mount Form Factor: 5.375" × 3" × 1" footprint fits standard DIN rail in utility boxes, cabinet rails, or wall-mounted enclosures. No special mounting hardware required.
- Compact Density: Single-unit regulation replaces multiple point-of-load supplies, reducing wiring runs and cabinet clutter in panel installations.
- Voltage Stabilization: Regulates input ripple and transient overvoltage that can cause erratic solenoid operation, relay chatter, or premature electronic component failure.
- Lifetime Warranty: Factory-backed warranty covers defects in material and workmanship across the operational life of the installation.
The VR10 addresses a recurring pain point in access-control system design: when a 24VDC backbone must feed legacy 12VDC locks, readers, or auxiliaries scattered across a facility. Rather than powering each 12VDC load from its own supply (adding cost, complexity, and cable runs), a single VR10 mounted in a central panel or distributed node point provides clean, regulated 12VDC to all downstream 12VDC devices. This topology simplifies troubleshooting — voltage problems are isolated to one regulator, not scattered across a dozen supplies.
The regulator's input tolerance and transient filtering make it especially valuable in environments with marginal or noisy 24VDC sources: older transformer-based power systems, shared electrical infrastructure in multi-tenant buildings, or facilities with heavy inductive loads (HVAC, elevators) that induce spikes on the 24VDC rail. The VR10 absorbs that noise before it reaches the connected equipment, extending component life and reducing false lockouts or relay misoperations.
Altronix VR10 units pair seamlessly with any 24VDC backbone infrastructure — standard in access-control systems, CCTV power distribution, and integrated intrusion/surveillance cabling. DIN rail mount means installation is minutes: snap onto any standard rail in an existing enclosure, connect input and output, and the regulator is live. No panel modification, no additional cooling, no special commissioning. Maintenance is negligible; there are no fans, batteries, or consumable components. Storage temperature range (−20°C to 70°C) covers indoor and unheated utility closets without derating.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Altronix VR10 in dozens of retrofit and new-build access-control projects, and it consistently solves a specific, recurring problem: how to supply legacy 12VDC equipment from a 24VDC backbone without abandoning the backbone infrastructure. In practice, you see this in office buildings where a central 24VDC UPS feeds hardwired access readers and mag locks throughout five floors, but a legacy door strike or relay cabinet still expects 12VDC. Rather than install a separate 12VDC supply and coordinate two power trees, a single VR10 in the equipment room regulates one tap of the 24VDC bus to 12VDC, eliminating redundant cabling and a second UPS load. The regulator does its job silently — no noise, no heat, no failure modes to worry about over time. From a TCO perspective, that simplicity pays dividends: less wiring, fewer components to stock, and a single point of voltage troubleshooting if something goes wrong downstream.
Technical Highlights:
- 10A Continuous Output: Sufficient for two-door access systems or a mixed load of solenoids, relays, and indicator lights. If a single door strike draws 3–4A in-rush, the VR10 provides stable post-surge regulation without brownout ripple affecting relay timing.
- 24VDC to 12VDC Buck Conversion: Simple, proven topology with no active switching — inherently quiet and reliable. Input range typically covers 18–30VDC, making it forgiving of upstream power variations common in older installations.
- Transient Filtering: Internal RC networks absorb voltage spikes from solenoid release, inductive load cutoff, and distant UPS switching. Downstream equipment (readers, card readers, relay modules) see clean, ripple-free 12VDC even during high-dI/dt events on the 24VDC rail.
- Compact Footprint: 5.375" × 3" × 1" on DIN rail means it fits in standard 15-position industrial enclosures alongside terminal blocks and relay modules. No cabinet redesign needed.
- Passive Operation: No fans, no active current limiting, no thermal runaway risk. Runs cool in utility closets and unheated cabinets. Maintenance is inspection only — verify input/output voltages annually if you're meticulous; many sites never revisit it once installed.
Deployment Considerations:
- Output load must not exceed 10A continuous. If you're paralleling multiple regulators for redundancy, ensure equal current sharing via external load-balancing resistors or confirm output ripple is acceptable with your downstream equipment first.
- Input voltage must remain 18–30VDC (typical range for a buck regulator). If your 24VDC source sags below 18V under load or climbs above 30V due to poor regulation upstream, the VR10 may dropout or not regulate precisely. Validate input supply voltage under worst-case load before installation.
- Airflow is not required, but mounting the unit on a DIN rail with at least 1 inch of air gap on either side keeps thermal performance predictable. In confined enclosures, ambient temperature will affect regulator case temperature; if the cabinet exceeds 60°C, consider additional ventilation or spacing.
- Output ripple is typically ±5% under nominal load — acceptable for solenoids and relays, but sensitive digital equipment (modern IP readers with precise power supplies) may require additional output filtering. Test with your specific reader or controller before full rollout.
- Wire sizing: 10A output means input and output conductors should be 12 AWG or larger (depending on run length). Undersized wire will cause localized voltage drop, reducing the regulator's ability to stabilize the 12VDC output. Use terminal blocks that accommodate 12 AWG wire without strain.
The VR10 is the right choice for integrators managing heterogeneous 24VDC and 12VDC infrastructure in commercial buildings, especially retrofit projects where replacing a legacy 12VDC ecosystem is cost-prohibitive. For new builds with a unified 24VDC design, you may not need it — but if you're migrating or supporting mixed-voltage deployments, this regulator earns its place. Explore the full Altronix catalog for matching power distribution, UPS, and rack-mount supplies that pair with the VR10 in larger security ecosystems.
