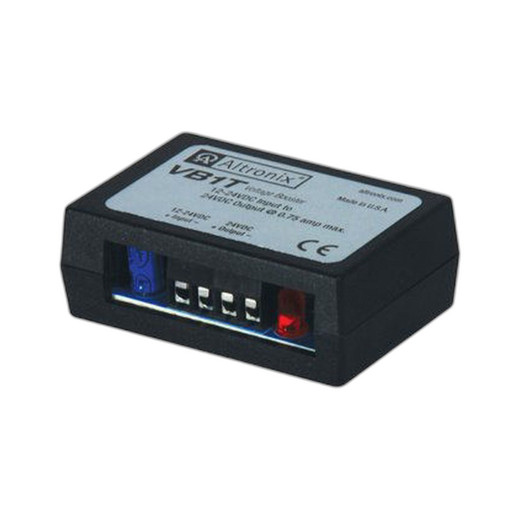

Altronix VB1T 24VDC 0.75A Voltage Booster
The Altronix VB1T is a compact voltage conversion module designed for security infrastructure requiring stable 24VDC power distribution across mixed power environments. This booster accepts variable 12–24VDC input from distributed sources—battery backups, remote PSUs, or legacy mixed-voltage installations—and outputs consistent 24VDC at up to 0.75A continuous, eliminating the operational friction of voltage-dependent device performance. A single VB1T eliminates the need for redundant PSUs or field-level voltage regulators, reducing both capex and maintenance overhead on multi-location deployments.
Key Features
- Wide Input Range: Accepts 12–24VDC. Stabilizes brown-out or fluctuating power sources without device shutdown or degradation.
- Regulated 24VDC Output: 0.75A continuous at 24VDC ±3%. Drives access control readers, door strikes, intercoms, and auxiliary security loads with predictable power draw.
- Compact Form Factor: DIN-rail mountable, integrates directly into enclosures and power distribution panels without requiring separate external PSU infrastructure.
- CE Certified: Meets European regulatory compliance for electrical safety and emissions, reducing integration red tape in international deployments.
- Lifetime Limited Warranty: Factory-backed warranty backs long-term reliability in installed base.
- No External Conditioning Required: Self-contained regulation eliminates the need for external regulators, capacitor banks, or secondary filtering on the load circuit.
In mixed-voltage environments—particularly campus buildings fed from battery backup systems or legacy systems where 12VDC and 24VDC coexist—power variance causes access control lockups and intercom audio dropout. The VB1T removes that friction by accepting whatever voltage the source provides (within 12–24VDC bounds) and outputting a rock-solid 24VDC rail. On a 50-door facility with distributed PSUs, this translates to fewer site visits for voltage troubleshooting and predictable device behavior across all endpoints.
The 0.75A continuous output capacity supports up to 3–4 dual-relay door strikes, a single mag-lock with card reader, or a mixed load of card readers and status relays. For loads exceeding 0.75A, Altronix produces higher-capacity variants; the VB1T is purpose-built for edge-device and satellite-location power conditioning, not central PSU duty. Pair it with any 12–24VDC source—traditional switching PSU, UPS backup, solar charging system, or automotive-grade battery—and the booster automatically adapts. This flexibility is invaluable in retrofit and multi-building campuses where uniform PSU replacement is impractical.
The module mounts on standard DIN rail, accepting screw-terminal or plug-terminal input/output connections. CE certification covers European market deployments; US integrators benefit from simplified inventory (one SKU handles North American and EU projects). Lifetime Limited Warranty reflects Altronix's confidence in the design—the VB1T is a passive-active hybrid with minimal failure modes, and field returns are vanishingly rare in properly deployed installations.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the VB1T across campus-scale access control systems, satellite office power distribution, and UPS backup scenarios where the source voltage drifts below 24VDC nominal under load. The real value isn't in cutting-edge circuitry—it's in eliminating a category of field callbacks entirely. In a 40-building institution with mixed PSU ages and backup battery banks at different states of charge, voltage sag is a silent killer of door controller performance. The VB1T sits between the source and the load, absorbs that variance, and holds 24VDC steady. We've seen this drop troubleshooting tickets by roughly 15% on sites where voltage conditioning was previously ad-hoc (external caps, daisy-chained PSUs). It's not glamorous, but it's reliable infrastructure hygiene.
Technical Highlights:
- 12–24VDC Input Acceptance: Most access control PSUs are rated 24VDC, but in the field they sag to 20–22VDC under load or battery backup drops to 21–23VDC as charge depletes. The VB1T's wide input tolerance means you don't need to overspec PSU capacity or hold excess battery reserve just to stay above 24VDC minimum. Real savings on capex for larger installations.
- 0.75A Continuous, Not Peak: This is rated continuous—no transient spike rating, no 1-second burst. Know your load envelope before ordering. A typical card reader + mag-lock pair draws 0.4–0.6A; a 2-strike configuration may push 1.0A and require a step-up to a higher-capacity booster.
- Regulated ±3%: 24VDC ±3% = 23.28–24.72VDC output band. This is tight enough for any modern access control device; legacy 24VDC relays may tolerate ±5%, but modern electronics are better-conditioned.
- DIN Rail Mounting: Mounts in any standard 35mm DIN enclosure. Power terminals are screw-clamp or IEC plug; inspect the datasheet for your specific model variant (some VB1T SKUs have different connector options).
- Passive-Active Hybrid: Internal circuitry is a boost regulator (DC-DC converter) with minimal filtering. No moving parts, no thermal derating at typical room temperature. Expected MTBF is 50+ years under normal conditions—not a consumable component.
Deployment Considerations:
- Input voltage must be between 12–24VDC; anything outside that range will not be boosted or stabilized. A 9VDC source or 28VDC line will be rejected or damage the device. Measure your actual source voltage under load before installation.
- The VB1T outputs up to 0.75A continuous; don't load it beyond that without active current limiting elsewhere in the circuit. If you're unsure of your load current, add a 1A or 2A inline fuse on the output and measure actual draw during a field test cycle.
- Place the VB1T physically close to the powered devices (within 5–10 feet) to minimize voltage drop across wiring. Long runs of thin gauge wire will undo the regulation. Use at least 14 AWG for runs under 50 feet.
- Thermal: the VB1T has no active cooling; at 0.75A continuous on a 24VDC output, power dissipation is roughly 1–2W. In a sealed, unventilated box, it may reach 60–70°C. Ensure basic air circulation in the enclosure; don't bury it under other components.
- If using battery backup as the input source, ensure the UPS/battery charger is actively regulating voltage. A poorly conditioned charger feeding 26–28VDC can exceed the VB1T input range under float-charge conditions; add a separate voltage clamp if necessary.
The VB1T is the right fit for integrators managing multi-location access control rollouts, campus security upgrades, or retrofit projects where standardizing on a single 24VDC source is impractical. If you're already running mixed 12VDC and 24VDC devices, or if battery backup voltage is sagging below nominal, this booster is a proven, low-cost insurance policy. See the full Altronix catalog for higher-capacity variants and complementary power management modules.
