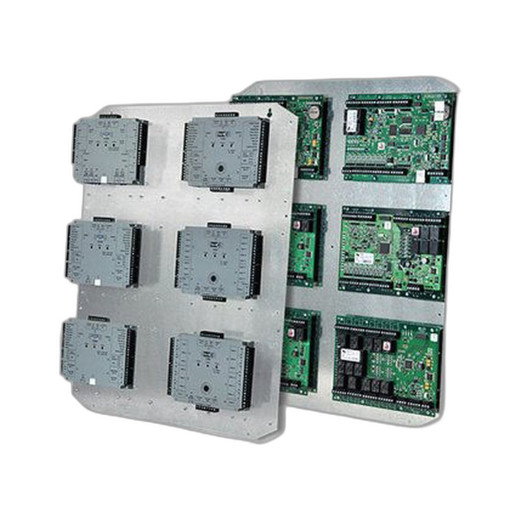

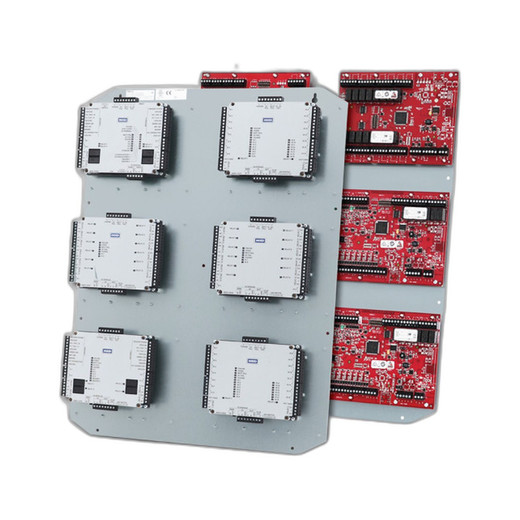

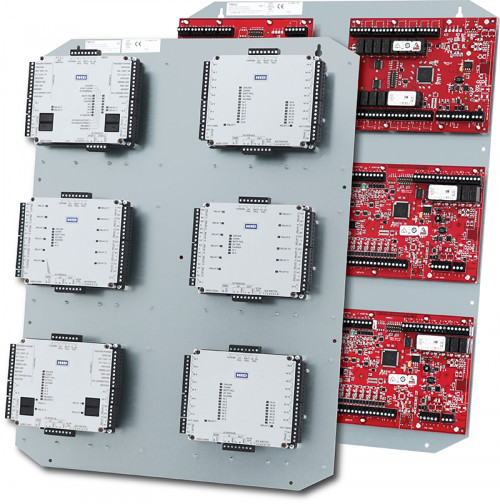

Altronix TMV2 Access & Power Integration Door Backplane
The Altronix TMV2 is a door backplane component designed to consolidate access control and power management functions within modular enclosure systems. This is a connectivity platform, not a standalone device — it functions as the interface layer that eliminates point-to-point field wiring between access controllers, power distribution modules, and door-mounted hardware inside standardized Altronix enclosure frames.
What This Component Does
In a typical security installation, access control readers, magnetic locks, request-to-exit (REX) sensors, and monitoring circuits require individual runs from the main control panel to the door hardware. The TMV2 backplane consolidates these connections into a single modular interface mounted on the enclosure door, reducing field termination points and cutting installation labor. Once the backplane is mounted and the bundled connections are routed to the door hardware, future modifications require no rework inside the enclosure chassis.
Key Features
- Integrated access control and power connectivity: Combines reader inputs, door strike outputs, and monitoring circuits on a single backplane — fewer individual connections to manage and troubleshoot in the field.
- Door-mounted form factor: Mounts directly to the enclosure door, keeping interconnect harnesses organized and accessible for service without dismantling the main frame.
- Modular design for Altronix enclosure platforms: Designed to work with Altronix's standardized enclosure line, ensuring mechanical and electrical alignment without custom fabrication.
- Reduces field wiring complexity: Pre-terminated connections at the backplane mean fewer hand-crimped connectors, fewer junction boxes at the door, and faster final assembly — measurable time savings on multi-door deployments.
- Simplified troubleshooting: All door-circuit interconnects routed through a single point makes it easier to isolate faults and verify signal paths during commissioning and maintenance.
- Lifetime limited warranty: Backed by Altronix's lifetime limited warranty, reducing replacement risk over the system lifecycle.
Integration & Compatibility
The TMV2 is specified for installations where you are already standardizing on Altronix enclosure solutions. It is not a standalone product — it integrates with Altronix power supplies, relay modules, and controllers that mount in the same chassis. Before specifying, confirm that your primary enclosure frame and controller lineup are Altronix-native; retrofitting this backplane into non-Altronix cabinets requires custom bracket work and is not recommended.
Typical deployment scenarios include multi-door badge-access installations in data centers, warehouse access points, and secure facility entrances where you are consolidating access control and power management infrastructure. The component is also suitable for access control panel builds where space optimization and rapid door-unit provisioning are priorities.
Specifications & Physical Attributes
The TMV2 is a passive backplane assembly — there is no onboard power consumption, no batteries, and no firmware to update. Electrical ratings and physical mounting requirements are defined in the manufacturer's datasheet; exact dimensions, connector types, and rated current capacity vary depending on the enclosure frame size and configuration. Consult the full technical documentation before finalizing the bill of materials for your specific door and controller combination.
Why Use a Dedicated Backplane
A door-mounted backplane eliminates the need for long individual runs from the main enclosure to each door sensor and strike. This is not just a convenience — it directly reduces material cost, install labor, and on-site troubleshooting time. In multi-door facilities, the savings compound. On single-door deployments, the benefit is modest; on deployments with 10+ doors, the reduced complexity becomes a genuine project accelerator.
When to Consider Alternatives
If you are not already committed to an Altronix enclosure ecosystem, or if you prefer a different vendor's access control platform, specify that vendor's compatible backplane or distribution component instead. If your enclosure frame is generic or a different brand, a universal terminal strip and custom harness assembly may be more cost-effective than retrofitting proprietary backplanes.
Frequently Asked Questions
Q: Is the Altronix TMV2 compatible with third-party access control controllers?
A: The TMV2 is designed for use within Altronix enclosure systems. Compatibility with third-party controllers depends on whether those controllers also mount in the same Altronix frame and follow the same connector pinout conventions. Verify with the manufacturer or your integrator before mixing brands.
Q: Does the TMV2 require any special tools or training to install?
A: The backplane is a passive component and requires no special certification to mount. Installation is a matter of securing the assembly to the enclosure door and routing the pre-wired harnesses to the door hardware. Standard screwdriver and wire management tools are sufficient.
Q: What is the warranty on the TMV2?
A: The TMV2 is covered by Altronix's lifetime limited warranty, which protects against defects in materials and workmanship for the life of the product.
Q: Can I use the TMV2 in an outdoor enclosure?
A: The backplane itself is a passive internal component. Its environmental rating depends on the enclosure it is mounted in. If the enclosure is rated for outdoor use (IP66 or better), the backplane will operate within those conditions. If the enclosure is indoor-only, the backplane is also limited to indoor mounting.
Q: How does the TMV2 reduce installation time compared to point-to-point wiring?
A: Point-to-point wiring requires you to run individual conductors or pairs from the main control panel to each door sensor, strike, and monitoring input — potentially dozens of individual connections. The TMV2 bundles these into a single pre-configured harness routed from the enclosure to the door, reducing the number of field termination points and the risk of miswiring.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Altronix TMV2 backplane is a pragmatic integration tool for teams standardizing on Altronix enclosure infrastructure. If you are specifying multiple Altronix access control installations, this component pays for itself in reduced wiring labor and fewer field troubleshooting callbacks. It is not a performance upgrade or a feature-rich controller — it is a wiring consolidation device, and it should be evaluated strictly as such.
Technical Highlights:
- Door-mounted integration architecture: Eliminates the need for long individual runs from the main enclosure to door hardware, reducing material cost and installation time across multi-door deployments.
- Passive connectivity design: No onboard power consumption, no firmware, no active intelligence — this reduces risk of failure and simplifies commissioning because there is nothing to configure or troubleshoot at the component level.
- Lifetime limited warranty: Backed by Altronix's warranty promise, meaning you are not replacing backplanes out of pocket if a connector or contact fails within the product lifetime.
Deployment Considerations:
- The TMV2 is only valuable if your primary enclosure, controller, and power supply are already Altronix — mixing with other vendors' backplanes requires custom mechanical and electrical adaptation, which defeats the purpose.
- On single-door installations, the benefit of this backplane is marginal compared to standard terminal strips and individual harnesses. Specify it only if you are already building an Altronix ecosystem.
- Verify that your enclosure frame and door assembly are Altronix-compatible before ordering — field modifications are labor-intensive and will erase the installation savings.
The TMV2 is a solid fit for mid-to-large access control installations where you are consolidating multiple Altronix enclosures across a facility and want to minimize wiring complexity and reduce time-to-commission. For single-door access points or non-Altronix environments, standard panel-mount terminal strips and loose harnesses are often a better economic choice.
