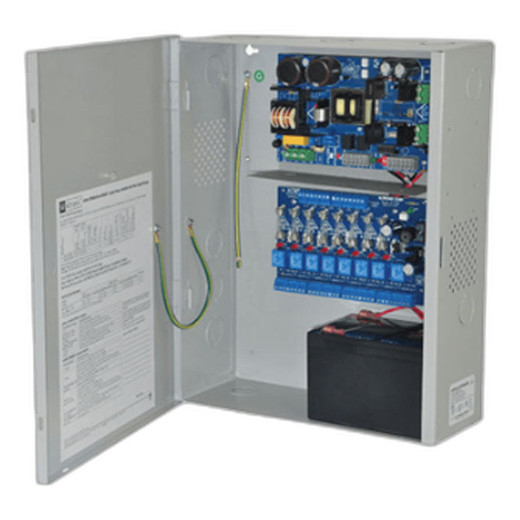

Altronix T3MKG7F16DQ Trove3M3 Power Distribution System
The Altronix T3MKG7F16DQ is a comprehensive 24VDC power distribution platform engineered for security installations requiring centralized power management, dual-channel output control, and battery backup integration. Built on the Trove3M3 chassis with TMV2 door backplane architecture, this system consolidates power supply, voltage regulation, and intelligent power distribution into a single field-deployable enclosure, reducing installation time and complexity across access control, video surveillance, and low-voltage security networks.
Overview
The T3MKG7F16DQ combines the eFlow104NB 10-ampere 24VDC regulated power supply with dual LINQ8PDCB power distribution modules, each featuring eight independent dual input/output channels with programmable PTC (Positive Temperature Coefficient) protection. This architecture enables remote circuit management, load monitoring, and per-channel fault isolation without site visits. The inclusion of two VR6 voltage regulators provides downstream voltage stability for sensitive devices, while the tamper-secure enclosure with cam lock and battery leads supports uninterrupted operation during mains loss.
Key Features
- 10-Ampere 24VDC Power Supply: eFlow104NB regulated supply with 24VDC output rated for 10A continuous load capacity, delivering stable power for access points, sensors, controllers, and auxiliary devices
- Dual LINQ8PDCB Power Distribution Modules: Two eight-channel modules provide 16 independent dual input/output circuits with individual PTC overcurrent protection, eliminating nuisance breaker trips and enabling per-circuit diagnostics
- Programmable PTC Protection: Electronically supervised circuit protection on each channel reduces field service calls and supports remote status verification of circuit health
- Two VR6 Voltage Regulators: Secondary voltage regulation ensures consistent supply to downstream equipment, mitigating voltage sag and equipment compatibility issues in extended installations
- TMV2 Door Backplane Architecture: Modular backplane design accommodates future expansion and supports mixed-protocol device integration, including legacy and current-generation control systems
- Battery Backup Integration: Integrated battery leads and charging circuit support 24VDC sealed lead-acid or lithium battery modules for emergency egress, access control continuity, and alarm signaling during power loss
- Genetec Cloudlink Compatibility: System architecture accommodates Genetec Cloudlink integration for cloud-managed access control and unified security operations
- Tamper Protection: Two independent tamper switches with alarm reporting detect unauthorized enclosure access and support compliance with security audit requirements
- Compact Modular Design: Vertical mounting footprint and DIN-rail compatible backplane simplify installation in equipment rooms, telecoms cabinets, and distributed access control nodes
Integration & Compatibility
The T3MKG7F16DQ supports mixed-device deployments including IP door controllers, badge readers, electric locks, surveillance-grade PoE switches, and environmental sensors. The LINQ8PDCB modules integrate with existing Altronix LINQ supervision networks, enabling unified power and circuit management across multi-site deployments. Battery backup integration supports standard UPS-style charger connections, allowing 4–8 hour autonomy depending on connected load and battery capacity. The TMV2 backplane design ensures compatibility with current and planned Altronix modular power accessories.
Package Contents
Trove3M3 enclosure with TMV2 door backplane, eFlow104NB 10A 24VDC power supply, two LINQ8PDCB eight-channel power distribution modules with PTC protection, two VR6 voltage regulators, two tamper switches, cam lock, battery leads, and complete mounting hardware for DIN-rail or wall installation.
