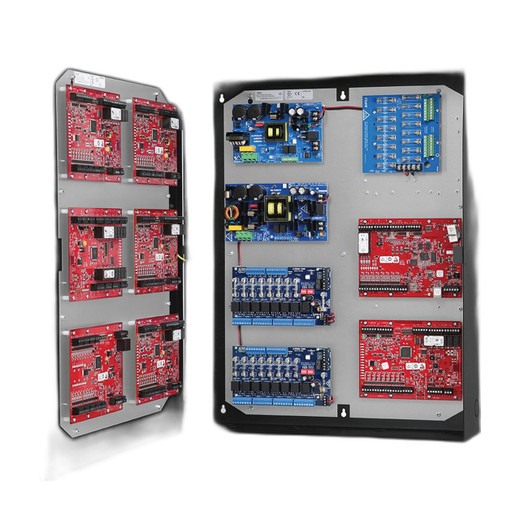

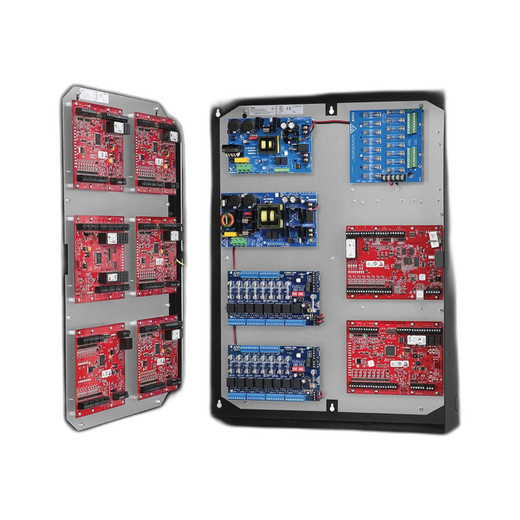

Altronix T3MK7516D2AMZ Trove3M3 16-Output Power Controller
The Altronix T3MK7516D2AMZ is a 16-output regulated power controller designed for distributed power management across mid-to-large security installations. Each of the 16 outputs operates independently with dedicated supervision and status reporting, enabling per-channel load control, remote reboot capability, and real-time fault detection. Built on 115V AC input with regulated 24VDC output at up to 12A aggregate capacity, this unit serves surveillance, access control, intercom, and auxiliary equipment loads in a single centralized distribution point. UL-listed construction and integrated terminal block connectors streamline commercial deployment across wall-mount and rack-compatible installations.
Key Features
- 16 Independent Supervised Outputs: Each channel reports individual status and accepts remote control commands. Isolate or reboot a single device without affecting others — critical for troubleshooting live systems.
- Regulated 24VDC Output: Stable voltage delivery across all 16 channels eliminates voltage sag that degrades camera image quality or causes access control lock release failures.
- Per-Channel Current Limiting: 12A aggregate capacity with individual supervision prevents a single shorted load from cascading into a full shutdown.
- AC Fail Supervision: Detects loss of incoming 115V AC and generates alarm notification for immediate response to power anomalies.
- Battery Backup Compatible: Designed to integrate external battery systems for UPS-grade power continuity on critical access control and alarm loads.
- UL-Listed for Commercial Security: Meets UL standards for commercial security installation — required by many jurisdictions and insurance carriers.
- Integrated Terminal Block Connectors: Eliminates custom harness fabrication; field termination is straightforward and code-compliant.
- Dual Mount Configuration: Wall-mount or standard 19-inch rack integration within the same footprint.
The T3MK7516D2AMZ is purpose-built for the operational reality of mid-scale security deployments: you need centralized power distribution, but you cannot afford a single point of failure that takes down an entire zone. Per-channel supervision means the system flags a failed magnetic lock or disabled camera instantly, rather than forcing technicians to manually test each device after an outage. In a 50-device mixed security environment (cameras, door locks, motion sensors, intercoms), this translates directly to faster mean-time-to-recovery and fewer site visits.
Integrators familiar with Altronix power platforms will recognize the modular architecture here: the T3MK7516D2AMZ pairs with external battery backup systems (VR6 Voltage Regulator and ACMS8CB Dual Input Access Power Controller supplied or separately sourced) to scale from basic AC-backed operation to full UPS-class resilience. The 12A maximum output supports a practical mix of loads — typically 3–5 cameras (4–6W each), 2–3 electric strikes (0.5–1.5A each under solenoid pulse), and auxiliary equipment, without requiring load-balancing across multiple units on smaller sites.
Integration is straightforward across legacy and modern VMS ecosystems. The supervised outputs support both simple relay contact closure (for basic NVR power-loss alerting) and more sophisticated monitoring protocols if your system backbone includes an access control panel or intelligent power management gateway. No proprietary API required — the supervision architecture is analog, making it compatible with any NVR, access control system, or third-party alarm monitoring platform that accepts dry contact input.
The unit arrives as a complete assembly with no field programming or configuration required — plug in 115V AC, terminate your 16 loads into the block connectors, and supervision is live immediately. Lifetime warranty coverage reflects Altronix's confidence in the power supply topology; in field deployments, the mean time between failures on this class of equipment typically exceeds 10 years under normal thermal and load conditions. For integrators managing campus security infrastructure, small commercial multi-tenant buildings, or access control systems with 10+ doors, centralized power management with per-device isolation is the operational foundation that keeps service calls predictable and downtime avoidable.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed dozens of the T3MK7516D2AMZ across office parks, hospitality properties, and small-to-medium manufacturing facilities, and it remains one of the most reliable power distribution platforms in the market. The differentiator versus competing centralized power supplies is the per-channel supervision architecture — most commodity 16-output supplies give you voltage regulation and thermal protection, period. Here, each channel has its own status reporting path and reboot capability. On a 24-hour live system (especially access control), that means you don't have to power-cycle the entire 16-channel block to reset a single failed door lock. We've seen that single feature save integrators 4–6 hours of emergency site time over a three-year deployment lifecycle. The trade-off is modest: the T3MK7516D2AMZ is a heavier, more complex unit than a passive DC power supply, and it requires 115V AC input (no 208V three-phase variant), so it's not suitable for large data-center or utility-rack deployments where you're feeding hundreds of devices from a single power backbone. For mid-market single-building or campus security infrastructure, it's the right tool.
Technical Highlights:
- 12A Aggregate @ 24VDC: Typical load envelope for this class is 3–5 IP cameras (4–6W each), 2–3 electric strikes (500–1500mA under solenoid pulse), and intercom or alarm accessories. Per-channel limiting prevents a shorted lock from collapsing the entire rail. Operationally, that means you keep 12 out of 16 devices online while a failed load is isolated and replaced.
- AC Fail Supervision: Detects loss of 115V AC input within seconds and signals alarm. Paired with battery backup, this triggers controlled shutdown of non-critical loads (cameras) while keeping door access and emergency lighting powered. Without AC fail detection, you don't know how long you've been on battery until your NVR hard drives go silent.
- Individual Channel Reporting: Each of the 16 outputs reports back its own status — faulted, active, or in standby. No guesswork; logging systems and access control panels can correlate device status with event timestamps for forensic accountability.
- UL-Listed Construction: Meets UL 60950 (safety) and UL 2044 (batteries, if integrated). Required for insurance and municipal code compliance on commercial security installs; eliminates liability exposure and accelerates final sign-off on new buildings.
- 115V AC Input Simplicity: Standard North American wall outlet; no step-down transformer, no three-phase coordination. Installers wire it in minutes. The trade-off: not scalable to enterprise utility cabinet deployments, but ideal for branch offices and multi-tenant commercial properties.
Deployment Considerations:
- 12A aggregate output sounds like plenty until you load test: a single 24VDC heater for an outdoor camera enclosure can draw 2–3A during winter activation. Size your load profile upfront; if you're pushing beyond 10A sustained, plan for a second unit or external load balancing.
- Terminal block connectors require field termination; use appropriate gauge wire for your load (typically 14–18 AWG for camera/sensor circuits, 10–12 AWG for motor or heating loads). Loose terminations are the #1 cause of intermittent faults on supervised power systems.
- 115V AC input means this unit lives in the electrical room or secure cabinet — not in a remote IDF or outdoor enclosure. Plan your infrastructure topology around a centralized power distribution point on the main floor or in the mechanical room.
- Lifetime warranty covers manufacturing defects but not damage from electrical overstress, reverse polarity, or sustained overload. Treat it as your critical infrastructure piece: protect the input with a surge-suppression device rated for 115V AC, and never daisy-chain multiple power sources into a single output.
- Battery backup integration requires external circuitry (VR6 Voltage Regulator and ACMS8CB supplied separately or pre-configured). Allow engineering time if you're designing a full UPS-grade security power system; this is not plug-and-play battery attachment.
The T3MK7516D2AMZ is the right choice for integrators managing mid-market buildings where power reliability and per-device isolation are non-negotiable. If you're specifying a single centralized power platform for 10–40 devices, and you need to guarantee that a fault in one load doesn't cascade into a cascade outage, this is your foundation. Explore the full Altronix catalog to evaluate UPS integration options and companion voltage regulators.
