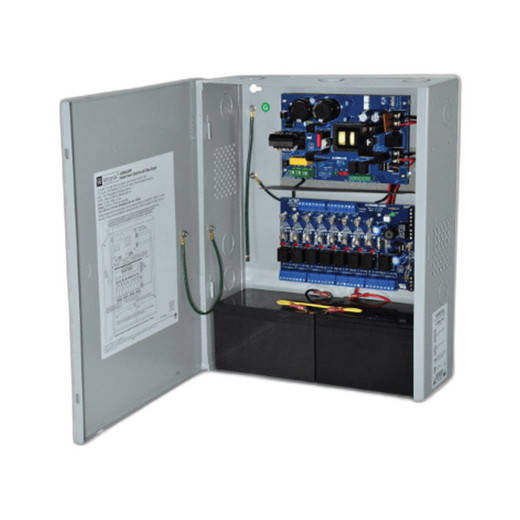

Altronix T3AXK77F16SQ 16-Output Managed Power Supply
Overview
The Altronix T3AXK77F16SQ is a 16-output managed power distribution unit designed for professional security integrators and system installers requiring centralized power management across multiple circuits. Built for demanding commercial and industrial applications, this unit combines robust power delivery with individual output supervision and circuit management in a compact form factor suitable for installation in equipment racks, enclosures, or wall-mounted deployments.
Key Features
- 16 Independent Supervised Outputs: Each of the 16 outputs is individually managed with supervision capability, enabling real-time monitoring and status reporting across all connected devices
- 115VAC Input: Standard North American mains input voltage compatibility for straightforward integration into existing facility power infrastructure
- Fused Output Protection: Individual fuses protect each output circuit, providing overcurrent protection and preventing cascading failures across the system
- Output Voltage Delivery: Regulated power output to meet the requirements of surveillance cameras, access control readers, intercoms, and other low-voltage security devices
- Managed Circuit Distribution: Intelligent output management allows technicians to configure, monitor, and troubleshoot individual circuits without affecting system-wide operation
- Professional Installation Ready: Designed for DIN rail or chassis mounting in security control rooms, server closets, and distributed equipment cabinets
Design & Construction
The T3AXK77F16SQ integrates power management functionality within a reliable industrial enclosure. The 16-output architecture distributes power across multiple circuits, each with independent fusing and supervision. This topology prevents single-point failures and allows localized troubleshooting—a critical advantage when servicing large surveillance deployments, multi-door access control systems, or networked intercom installations where downtime impacts operational security.
The managed architecture enables integrators to monitor real-time status of each output through supervision circuits, identifying load issues, open circuits, or device failures without manual inspection. This remote diagnostics capability reduces service calls and speeds mean-time-to-repair for distributed installations.
Integration & Compatibility
The Altronix T3AXK77F16SQ functions as a foundational power node in larger security system architectures. Its 16 supervised outputs accommodate integration with:
- IP camera POE injectors and conventional 12VDC/24VAC camera supplies
- Door strike controllers, magnetic locks, and access control reader networks
- Multi-line intercom systems requiring distributed power nodes
- Alarm system control panels and wireless transmitter modules
- DVR/NVR chassis requiring redundant or auxiliary power feeds
Typical deployments place the unit at a central equipment rack with Cat5e/Cat6 or hardwired supervision returning device status to a monitoring station, control panel, or remote management interface. The 115VAC requirement positions it for facilities with standard commercial electrical service, making it applicable across retail, education, hospitality, healthcare, and small-to-medium enterprise security environments.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've specified the Altronix T3AXK77F16SQ in multi-building campus deployments where centralized power distribution with per-circuit visibility is non-negotiable. The 16 individually fused and supervised outputs mean you can isolate a failing device without bringing down feeds to other equipment—essential when you're managing access control readers, door locks, and cameras across dozens of entry points.
Technical Highlights:
- 16 Supervised Outputs: Real-time monitoring of each circuit enables rapid fault detection and reduces troubleshooting time in large installations
- Individual Fusing: Per-output overcurrent protection isolates faults and prevents system-wide power loss from a single device malfunction
- 115VAC Input: Standard mains voltage input simplifies connection to facility power panels and UPS backup systems
Deployment Considerations:
- Plan supervision wiring runs carefully in larger installations—each supervised output requires a return path to your monitoring or control interface
- Mount the T3AXK77F16SQ in a secure, temperature-controlled enclosure; heat dissipation from 16 loaded circuits can be significant in summer months
- Use this unit as a secondary distribution point downstream of a main UPS or battery backup system if mission-critical devices require holdover power during mains loss
The T3AXK77F16SQ is a workhorse for integrators supporting multi-device sites. Its combination of supervised outputs and individual protection makes it a reliable choice for reducing support burden and improving system visibility.
