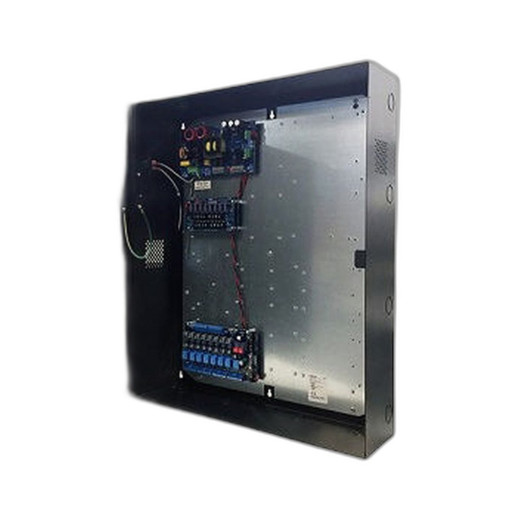

Altronix T2SK7F8 8-Door Access Control Kit

Altronix T2SK7F8 8-Door Access and Power Integration Kit

Overview

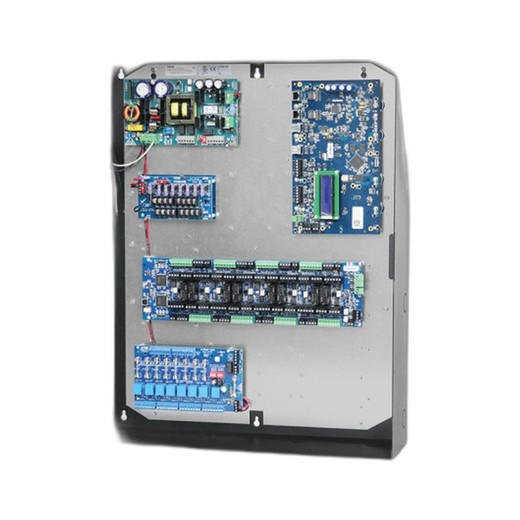

The Altronix T2SK7F8 is a comprehensive 8-door access control and power integration solution designed for security integrators and IT managers deploying multi-door access systems. This kit consolidates the Trove2SH2 access control controller, eFlow104NB network interface module, ACM8 auxiliary control module, VR6 voltage regulator, PDS8 power distribution system, and RSB2 relay switching board into a single coordinated platform. The T2SK7F8 eliminates integration complexity by pre-pairing core access control components, reducing on-site assembly time and compatibility risk.

Key Features

• 8-Door Capacity: Manages access control across 8 independent doors with integrated intelligent switching and monitoring
• Trove2SH2 Access Controller: Software House protocol-compatible controller serving as the system intelligence hub
• eFlow104NB Network Module: Delivers network-based communication and remote access control management
• ACM8 Auxiliary Control Module: Extends logic and relay control capability for advanced door sequencing and automation
• VR6 Voltage Regulator: Stabilizes DC power output across distributed door lock and reader circuits
• PDS8 Power Distribution System: Distributes regulated power to 8 separate outputs with individual circuit protection
• RSB2 Relay Switching Board: Manages relay-based switching logic for electromagnetic locks, strike plates, and auxiliary devices
• Pre-Integrated Assembly: All components factory-paired and tested to reduce field integration labor
• Software House Protocol Support: Compatible with legacy and modern Software House-based access management platforms
• Modular Expansion: Design supports additional ACM, VR, and PDS modules for larger deployments

Integration & Compatibility

The T2SK7F8 is engineered for seamless integration into Software House protocol environments. The Trove2SH2 controller communicates natively with Software House access management software, while the eFlow104NB module bridges on-site hardware to network-based platforms, enabling remote door status monitoring, access log retrieval, and cardholder credential management. The ACM8, VR6, PDS8, and RSB2 components work in concert to distribute power, manage relay logic, and control electromagnetic locks, door strikes, request-to-exit buttons, and other auxiliary devices across all 8 doors. This architecture supports both hardwired and networked command paths, ensuring redundancy and operational continuity.

System Architecture

Power enters the system through the VR6 voltage regulator, which stabilizes input voltage and conditions the rails for the PDS8 distribution module. The PDS8 allocates power to 8 independent output circuits, each protecting lock coils, readers, and auxiliary devices. The RSB2 relay switching board interprets commands from the Trove2SH2 controller and the ACM8 auxiliary module, energizing or de-energizing relays that control door hardware. The eFlow104NB network interface allows remote command issuance and real-time status feedback, enabling security operations centers to monitor and control access from networked workstations.

Jerry Tildsen

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Altronix T2SK7F8 represents a purpose-built kit for integrators managing multi-door access deployments in Software House environments. Having reviewed the component pairing and architecture, this kit addresses a genuine operational pain point: reducing the time and complexity of assembling a coordinated access control backbone from individual modules. The pre-integration of the Trove2SH2, eFlow104NB, ACM8, VR6, PDS8, and RSB2 eliminates guesswork around firmware compatibility and wiring pinouts, allowing faster project delivery.

Technical Highlights:

• 8-Door Native Capacity: The T2SK7F8 kit is sized for exactly 8 independent doors, with power distribution and switching logic matched to that topology—no oversizing or undersizing
• Network-Ready Architecture: The eFlow104NB module provides network connectivity without requiring additional gateway hardware, reducing BOM cost and panel footprint
• Modular Power & Control: The VR6 voltage regulator, PDS8 power distribution, and RSB2 relay switching are discrete modules, enabling field replacement or upgrade without full system rebuild

Deployment Considerations:

• Verify that existing access management software supports Software House protocol before ordering; the T2SK7F8 is optimized for that ecosystem and may require integration middleware in non-Software House environments
• Plan for network infrastructure to accommodate eFlow104NB bandwidth and latency requirements; hardwired fall-back paths via the Trove2SH2 direct controller interface should be documented as part of operational design
• Factor battery backup power requirements into UPS planning—the kit itself contains no onboard battery, so external backup must be sized to maintain lock coil current during power events

For integrators with 8-door or smaller Software House protocol deployments, the T2SK7F8 reduces engineering time and improves first-time accuracy. Verify firmware revision support with the access management platform, confirm electrical specifications match your power supply capacity, and document the eFlow104NB network path as part of system documentation.
