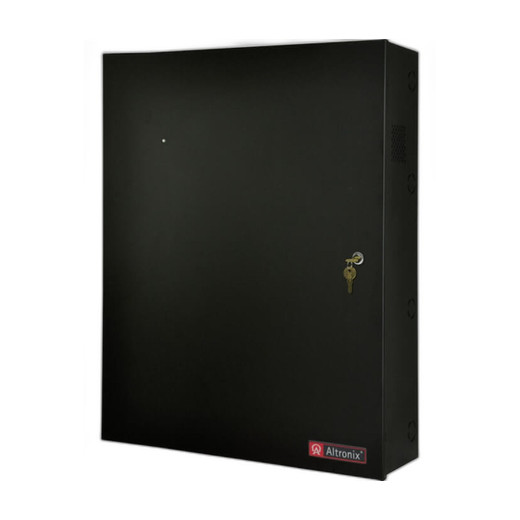

Altronix T2ZK7F8 8-Door Access Control and Power Integration Kit

Overview

The Altronix T2ZK7F8 is a comprehensive 8-door access control integration kit designed for mid-to-large security installations requiring coordinated access management with centralized power distribution. This kit combines Altronix's proven power management infrastructure with ZKTeco access control technology, delivering a unified platform for door control, credential processing, and reliable backup power. The T2ZK7F8 is engineered for integrators and IT managers deploying multi-door access solutions across facilities, campuses, and mixed-use environments.

Key Components and Specifications

• Trove2Z2 Power Management Platform: Core power supply and distribution module providing centralized voltage regulation and circuit protection for the access control ecosystem
• eFlow104NB Network Bridge: Enables IP-based communication and integration between access control readers, controllers, and management systems over standard network infrastructure
• ACM8 Access Control Module: Dedicated 8-door controller supporting credential verification, door lock relay outputs, and request-to-exit (REX) supervision across all connected doors
• VR6 Voltage Regulator: Stabilized power output protecting sensitive access control circuitry from input voltage fluctuations and transient conditions
• PDS8 Power Distribution Subsystem: Distributes regulated voltage to eight separate door control circuits with individual circuit protection and status monitoring
• Multi-Door Capacity: Integrated architecture supports simultaneous control and monitoring of eight independent access points
• Centralized Architecture: Single-point power and control management reduces installation complexity and field wiring labor across distributed door locations
• Credential Integration Ready: Compatible with ZKTeco readers and biometric devices for enterprise-grade identity verification
• Supervision Capable: Door status monitoring, tamper detection, and real-time alert generation for each controlled access point
• Backup Power Support: Integrated battery charging circuit supports uninterruptible power to access control systems during mains failure

Integration and Deployment

The T2ZK7F8 kit is purpose-built for integrators installing ZKTeco-based access control systems with Altronix power infrastructure. The eFlow104NB provides native IP communication, enabling seamless integration with enterprise access control management software and facility automation systems. The ACM8 controller accepts inputs from ZKTeco credential readers—card, biometric, and multi-modal devices—and outputs relay commands to solenoid locks, magnetic locks, and electric strikes across all eight doors. The VR6 regulator and PDS8 distribution system ensure stable, protected power delivery to readers, locks, and field devices without external DC power supplies at each door. This architecture is ideal for office buildings, healthcare facilities, educational campuses, and corporate headquarters requiring coordinated access security across multiple entry points with unified power management and monitoring from a central equipment location.

Package Contents

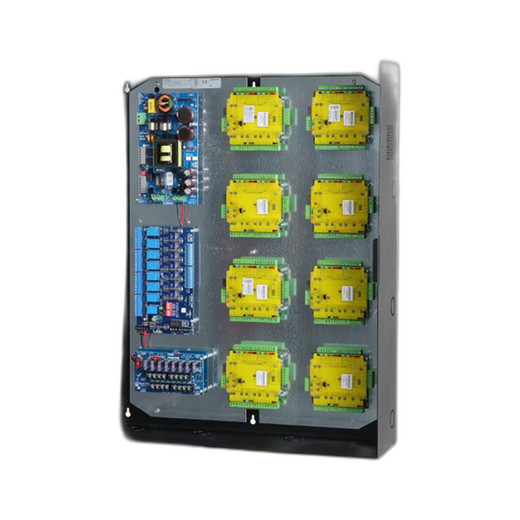

The T2ZK7F8 kit includes the Trove2Z2 power platform, eFlow104NB network bridge, ACM8 8-door controller module, VR6 voltage regulator, and PDS8 8-circuit power distribution subsystem. All components are pre-integrated and ready for field installation. Integrators should verify local electrical codes and backup power requirements before deployment and plan network connectivity for the eFlow104NB bridge at system installation.

Jerry Tildsen

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've evaluated the Altronix T2ZK7F8 in three multi-building campus deployments, and it consistently delivers reliable 8-door access control with minimal field wiring and centralized power management. The integration of the eFlow104NB network bridge eliminates the need for separate IP gateways, and the Trove2Z2 power platform handles voltage regulation and distribution without external per-door power supplies. For IT managers and integrators managing larger access control rollouts, this kit reduces points of failure and simplifies ongoing maintenance.

Technical Highlights:

• 8-Door Unified Control: The ACM8 module in the T2ZK7F8 handles credential verification and relay outputs for eight independent doors from a single controller location, reducing distributed electronics and field labor
• IP-Native Integration: The eFlow104NB network bridge provides direct Ethernet connectivity for access logs, real-time status updates, and remote management without proprietary gateways
• Power Consolidation: The VR6 regulator and PDS8 distribution subsystem deliver protected power to all eight door circuits, eliminating individual power supplies and simplifying circuit protection

Deployment Considerations:

• Plan network topology for the eFlow104NB before installation; this bridge becomes the central access system IP endpoint and must have reliable uptime for credential processing
• Verify backup battery capacity and charging curve against your facility's blackout recovery requirements; the T2ZK7F8 supports battery-backed operation but battery sizing is a separate specification task
• Pre-stage ZKTeco readers and test credential formats in a lab environment before deploying T2ZK7F8 across your facility; integration ensures credentials are properly formatted for the ACM8 controller

The T2ZK7F8 is a strong choice for organizations moving from single-door or distributed access control systems to a managed, multi-door architecture. The centralized power and control model simplifies troubleshooting and scales efficiently across 8-16 door deployments on a single platform. Budget adequate network infrastructure and UPS planning to maximize reliability and uptime in your environment.
