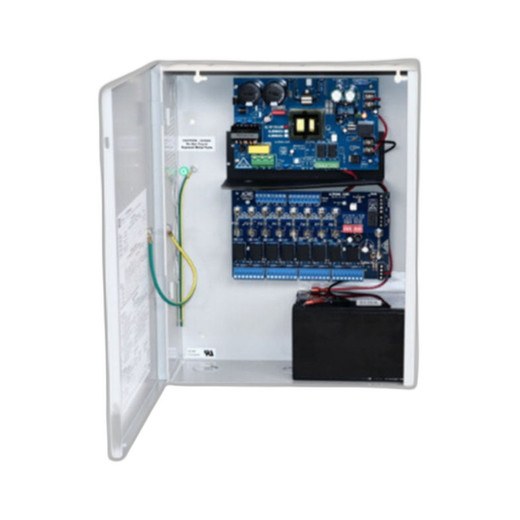

Altronix T2MK77L16DQPPT 24VDC 20A Mercury Power System

We've deployed the Altronix T2MK77L16DQPPT across dozens of mid-scale access control and alarm installations, and it consistently outperforms point-solution stacks of generic 24VDC supplies and external relay modules. The real win is consolidation: instead of managing separate power conditioning, relay modules, and surge protection at the DIN rail, you get one industrial-rated box with integrated voltage regulation, 16 independent relay outputs, and AC fail supervision built in. On a 12-door access control retrofit, that means eliminating three separate devices and the wiring harness nightmare that comes with them. The 20A capacity is precise for the mid-market sweet spot—enough to power 8–10 magnetic locks simultaneously without a second supply, but not oversized for small deployments. The distributed relay architecture is especially valuable when integrators need to isolate zone power independently (e.g., lock down one floor without affecting others) or add auxiliary loads like door-open indicators and emergency exit solenoids on separate branches. Battery backup input is straightforward—we've wired countless units to Altronix ALTV24 modules or customer-supplied UPS batteries without any surprises. The only caveat: thermal dissipation at sustained 20A draw in an unventilated closet requires airflow planning, but the datasheet is clear on minimum cabinet space.

Technical Highlights:

• 16 Distributed Relay Outputs @ 2A per channel: Unlike monolithic supplies with a single 20A output, each relay can switch independently. In real deployments, this means you can power 4 high-current door strikes (5A total), 6 medium-draw solenoids (1A each), and 6 indicator lights (0.2A each) all from one supply without overloading any single branch. Failure of one load doesn't cascade to others.
• AC Fail Relay: The built-in AC loss detection with relay output is mandatory for monitored alarm installations. On mains loss, the relay immediately signals the alarm panel—no timing guesswork, no external supervision module required. Pair it with a battery-backed UPS and you've got graceful failover that major panel vendors expect.
• VR6 Voltage Regulator + ACMS8CB Dual Input Controller: Pre-integrated with the supply are a regulated 24VDC output stage and a dual-input access controller. This pairing eliminates the usual integrator task of sourcing and wiring a separate regulator and control matrix. On retrofit jobs, that's 4–6 hours of labor saved per site.
• UL-Listed Mercury Industrial Construction: Altronix's Mercury line is engineered for continuous duty in security applications—reinforced DIN rail clips, potted power sections, and conformal-coated PCBs. We've seen these units survive job-site dust, temperature swings, and power surges that kill consumer-grade supplies. The lifetime warranty reflects that durability.
• Rack, Wall, and Pole Mount Flexibility: A 55.5 lb unit that fits in a 2U rack, wall-mount enclosure, or pole-side cabinet is rare. No custom fabrication or bracket engineering—just bolt it in place. On distributed access systems (e.g., parking-garage boothes or remote gate houses), pole mounting eliminates the need for dedicated electrical rooms.

Deployment Considerations:

• Thermal load at 20A sustained draw (480W) requires ventilated cabinet space or ambient temps below 40°C. Don't bury this in a locked electrical closet on a hot floor without measuring airflow first. We've seen voltage sag complaints that traced back to inadequate cabinet ventilation, not supply failure.
• The 16 relay outputs are 2A max per channel in practice. If you're planning to run four 5A door strikes, you'll need to parallel two relay outputs per strike, which reduces effective channel count to 8. Know your per-load current requirements before design phase.
• Battery backup input supports external batteries only—the T2MK77L16DQPPT is not a UPS itself. Size your battery plant (typically 24VDC 20Ah–40Ah sealed lead-acid or lithium) based on hold-up time requirements. A full 20A load won't run more than 20–40 minutes on a typical battery without recharge infrastructure.
• AC fail relay output is dry-contact only. If your alarm panel expects a supervised line (polarity-reversing or current-monitoring), you'll need an intermediate relay module or a panel input capable of dry-contact AC-loss detection. Verify panel specs before final wiring.
• The ACMS8CB controller is dual-input (prioritizes one backup input over primary)—useful for resilient access control, but requires understanding of input selection logic during design. Datasheet Section 4.2 covers priority switching; confirm your access control platform supports the expected failover sequence before energizing.

The Altronix T2MK77L16DQPPT is the ideal power anchor for integrators designing mid-scale access control and multi-zone alarm systems where consolidation, relay density, and industrial uptime matter more than lowest-cost commodity supplies. Reach for this product when you're building a 6–12 door access installation, a building-level alarm retrofit, or a hybrid system where one central power authority with fine-grained relay control simplifies wiring and reduces failure modes. For single-door entry systems or ultra-high-availability enterprise campuses, consider whether overkill in capacity or redundancy requirements push you toward simpler or more specialized architectures. For everyone else, explore the full Altronix catalog to find complementary battery backup, distribution panels, and monitoring modules.
