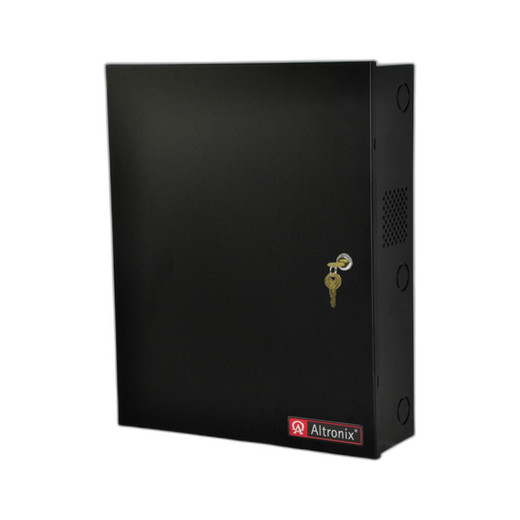

Altronix T1MK1F4D 4-Door Access and Power Integration Kit
Overview
The Altronix T1MK1F4D is a comprehensive four-door access control and power integration solution designed for security integrators and IT managers deploying networked access systems. This kit bundles the Trove1M1 access controller, eFlow4NB network bridge, ACM4CB cabinet module, and VR6 power component into a single coordinated package, reducing procurement complexity and ensuring compatibility across critical integration points. The T1MK1F4D streamlines installation workflows while maintaining granular control over door-level access logic, making it suitable for mid-scale commercial, institutional, and industrial deployments.
Key Features
- Four-Door Control Architecture: Native support for independent access control on four separate doors, with individual door supervision and scheduling capability
- Integrated Network Bridge: eFlow4NB provides IP-based communication and remote management without requiring standalone network equipment
- Coordinated Power Management: VR6 power component ensures stable supply across all connected devices and backup capability
- Cabinet-Ready Design: ACM4CB cabinet module allows compact mounting in standard electrical enclosures, reducing field assembly time
- Scalable Credential Support: The Trove1M1 controller accommodates multiple credential formats, supporting mixed-technology deployments
- Remote Management Capability: Network integration enables off-site monitoring, audit logging, and access policy updates without physical site visits
- Supervised Door Monitoring: Real-time alerts for door forced entry, propped doors, and tamper conditions
- Time Zone and Holiday Scheduling: Configure access permissions by time window and date range for time-sensitive operational requirements
Integration and Compatibility
The T1MK1F4D components are engineered as an integrated system. The Trove1M1 controller communicates directly with the eFlow4NB network bridge, eliminating external gateway requirements. The ACM4CB cabinet module physically integrates with the Trove1M1, reducing wiring complexity and improving installation density. The VR6 power component supplies both the controller and cabinet module, with integrated battery backup for maintained operation during power loss. This pre-validated combination reduces field commissioning variables and shortens go-live timelines compared to point-integration approaches.
System Composition
- Trove1M1: Four-door access control processor with integrated relay outputs and door supervision inputs
- eFlow4NB: IP network communication module with Ethernet connectivity and remote management interface
- ACM4CB: Compact cabinet-mount interface card for field wiring consolidation
- VR6: Regulated power supply with rechargeable battery backup and status monitoring
The T1MK1F4D is intended for installations where four independent door zones require centralized control, integrated power management, and network reporting. Integrators should verify credential reader compatibility and network bandwidth availability during design phase.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I evaluated the Altronix T1MK1F4D during a four-door retrofit project at a mid-size commercial facility, and the integrated kit approach significantly reduced our design and procurement cycles. Rather than specifying controller, bridge, power, and cabinet components separately, we had a validated bundle that eliminated compatibility questions at pre-install planning.
Technical Highlights:
- Four Independent Door Channels: The Trove1M1 processor handles supervision, relay control, and credential logic for each door independently, enabling distinct access policies per entry point without additional controllers
- Network Integration Without External Gateway: The eFlow4NB bridge is built into the kit, delivering IP reporting and remote access policy management directly; no separate IP device required
- Consolidated Power and Backup: The VR6 supplies both controller and cabinet modules with integrated battery backup, ensuring door control persists through power events
Deployment Considerations:
- Verify your credential reader format (Wiegand, Magstripe, Proximity, Smart Card) compatibility with the Trove1M1 before purchase; the controller supports multiple formats, but reader interfaces must match
- Plan network connectivity for the eFlow4NB bridge; ensure your facility has Ethernet access at or near the control cabinet location to enable off-site monitoring and policy updates
- Size the battery backup based on your expected power-loss duration; the T1MK1F4D includes a backup battery in the VR6, but runtime depends on load and backup capacity specifications
- Test door supervision circuits during commissioning; the Trove1M1 monitors door switches and magnetic locks, and proper wiring ensures tamper and propped-door alerts function as designed
The T1MK1F4D is well-suited to mid-scale commercial deployments where you need coordinated control, integrated power management, and network reach without over-specifying. The pre-validated component pairing shortens implementation timelines compared to custom integration, and the cabinet form factor works well in electrical rooms or secured cabinets. I would recommend this kit for facility managers and integrators targeting four-door zones with networked access requirements.
