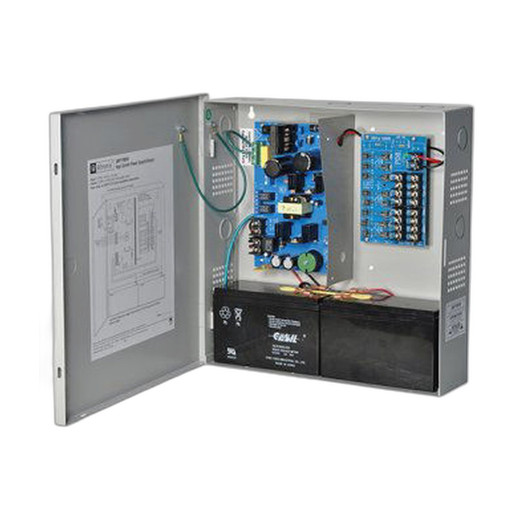

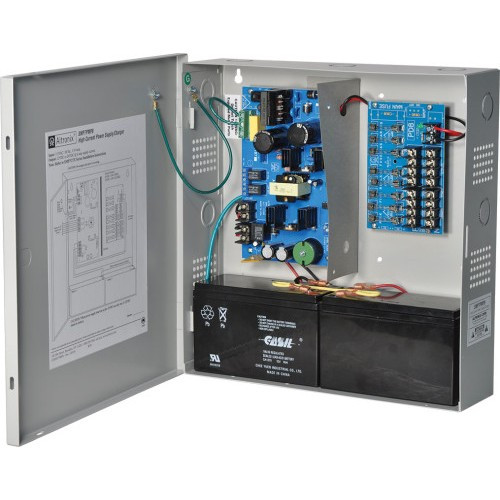

Altronix SMP7PMP8 12/24VDC 6A Power Supply Charger

Altronix SMP7PMP8 12/24VDC 6A Power Supply Charger

The Altronix SMP7PMP8 is a supervised power supply and battery charger designed for security infrastructure requiring reliable DC power with integrated backup capability. Accepts 16-28VAC input and delivers 12VDC output at up to 6A maximum current across eight fused outputs. Built-in battery charging and supervision logic ensures continuous system operation during AC power loss.

Key Features

• Eight individually fused 12VDC outputs for distributed load protection
• Integrated battery charger with selectable charging rates (.5A, 4A, or 6A)
• AC fail, low battery, and battery presence supervision
• 16-28VAC input range accommodates transformer-isolated supplies
• Compact board dimensions: 7"L x 4"W x 1"H
• Mounts in BC300 enclosure for wall or cabinet installation
• CE approved for European deployment
• Lifetime Limited Warranty

Applications

• Access control systems requiring supervised power distribution
• Battery backup for security cameras and alarm circuits
• Multi-device security installations needing individual circuit protection

Specifications

• Input Voltage: 16-28VAC
• Output Voltage: 12VDC
• Maximum Current: 6A
• Fused Outputs: 8
• Battery Backup: Yes
• Supervision: AC Fail, Low Battery, Battery Presence
• Enclosure: BC300
• Approvals: CE
