Altronix SMP7PM Single-Output 12/24VDC 6A Power Supply
Product images are provided for reference and may not represent the exact model, configuration, or included components.

No Bots, Just Experts

Questions about this product? Free pre-sales support from a senior specialist — product questions, compatibility checks, BOM quotes, price confirmation — typically answered within one business day. Need camera placement or system design work? Engineering time is $175 per hour (qty 1 = 1 hour). Hardware buyers get up to one hour ($175) credited back on their order.

Get Free Pre-Sales Support Buy Design Hours ($175/hr)
Description

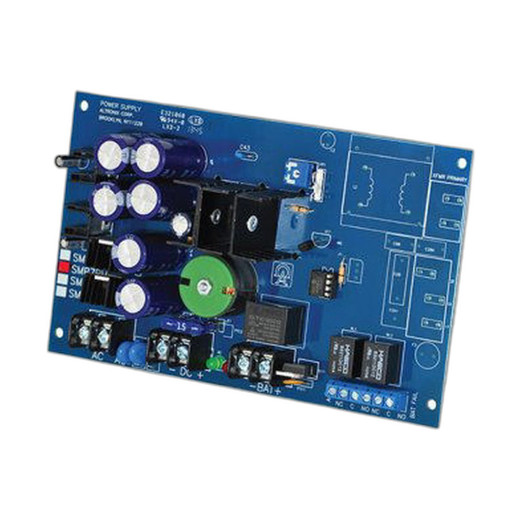

Altronix SMP7PM Single-Output 12/24VDC Power Supply

The Altronix SMP7PM is a compact board-level power supply delivering 12VDC or 24VDC output at 6A maximum current. Operating from 16-28VAC input, the SMP7PM integrates battery backup capability with intelligent supervision monitoring, making it suitable for access control, alarm systems, and distributed security infrastructure requiring reliable DC power with integrated failover protection.

Key Features

  • Single output configurable for 12VDC or 24VDC operation
  • Maximum current rating of 6A at 12VDC output
  • Integrated battery backup and charging circuit
  • AC fail, low battery, and battery presence supervision outputs
  • Compact board format: 7"L x 4"W x 1"H
  • 16-28VAC input range accommodating typical transformer outputs
  • Lifetime limited warranty

Applications

  • Distributed power supply for access control panels and readers
  • Backup power for alarm system circuits and sensors
  • Secondary power source in multi-output security installations
  • Battery-backed DC supply for remote equipment requiring supervision signals

Specifications

  • Input Voltage: 16-28VAC
  • Output Voltage: 12VDC or 24VDC (selectable)
  • Maximum Current: 6A @ 12VDC
  • Board Dimensions: 7"L x 4"W x 1"H
  • Battery Backup: Yes
  • Supervision: AC Fail, Low Battery, Battery Presence
  • Outputs: 1
Expert Analysis
Specifications
Input Voltage: 16-28VAC
Output Voltage: 12VDC / 12VDC
Max Current: .5A @ 12VDC / 4A @ 12VDC / 6A @ 12VDC
Board Dimensions: 7"L x 4"W x 1"H
Supervision: AC Fail, Low Battery, Battery Presence
Number of Outputs: 1
Warranty: Lifetime
Type: Power Supply
Power: 24VDC
Battery Backup: Yes
Voltage DC: 12VDC
Q&A
Reviews
Product Video

Altronix SMP7PM Single-Output 12/24VDC 6A Power Supply

$216.07
$190.99
Add to Cart

RELATED PRODUCTS

Save $8.97
Altronix SMP7 Single Output 12/24VDC 6A Power Supply
Add to Cart The item has been added

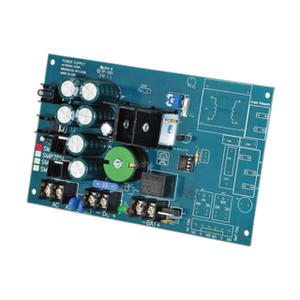

Altronix SMP7

Altronix SMP7 Single Output 12/24VDC 6A Power Supply

Board-mount 12/24VDC supply, 6A at 12V, selectable voltage

  • Selectable 12VDC or 24VDC output lets one SKU serve multiple device types.
  • 6A capacity at 12VDC supports readers, locks, and sensors on a single supply.
  • Board-mount form factor fits space-constrained enclosures without external housing.
Usually Ships in 2-3 Weeks Free shipping over $499
$168.96 $159.99 Save $8.97
Add to Cart
The item has been added Add to quote
$168.96 $159.99 Save $8.97
Save $8.97 Add to cart Add to quote
Save $217.09
Altronix SMP7PMP4 12/24VDC 6A 4-Output Power Supply
Add to Cart The item has been added

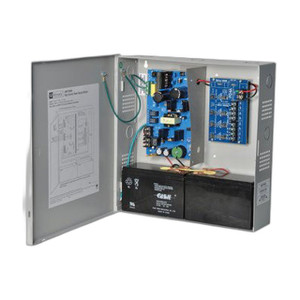

Altronix SMP7PMP4
