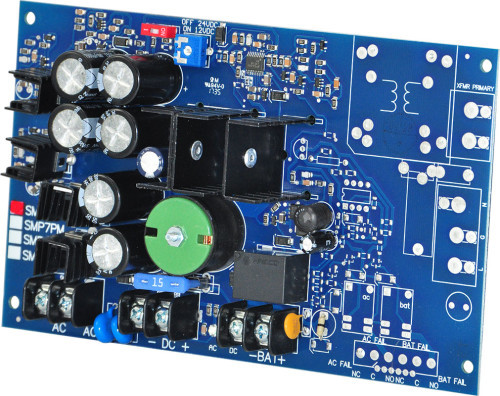

Altronix SMP7 Single Output 12/24VDC 6A Power Supply
Altronix SMP7 Single Output 12/24VDC 6A Power Supply
Altronix SMP7 Single Output 12/24VDC 6A Power Supply
Altronix SMP7 Single Output 12/24VDC 6A Power Supply

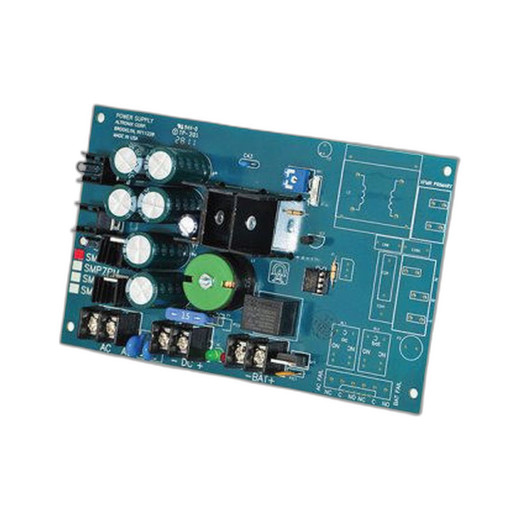

Altronix SMP7 power supply terminal connections and specifications detail
Product images are provided for reference and may not represent the exact model, configuration, or included components.

No Bots, Just Experts

Questions about this product? Free pre-sales support from a senior specialist — product questions, compatibility checks, BOM quotes, price confirmation — typically answered within one business day. Need camera placement or system design work? Engineering time is $175 per hour (qty 1 = 1 hour). Hardware buyers get up to one hour ($175) credited back on their order.

Get Free Pre-Sales Support Buy Design Hours ($175/hr)
Description

Altronix SMP7 Single Output 12/24VDC Power Supply

The Altronix SMP7 is a compact board-mount power supply delivering selectable 12VDC or 24VDC output at 6A capacity. Designed for access control, alarm, and security system integration, the SMP7 accepts 16–28VAC input and provides stable DC power in space-constrained installations. Its single-output configuration simplifies integration into systems requiring auxiliary power without redundancy requirements.

Key Features

  • Selectable 12VDC or 24VDC output voltage
  • 6A maximum current capacity at 12VDC
  • Board-mount form factor for compact enclosure integration
  • 16–28VAC input voltage range accommodates standard transformer supplies
  • Lifetime Limited Warranty coverage

Applications

  • Auxiliary power for access control readers and operators
  • Alarm system and sensor power in retrofit installations
  • Secondary DC supply for integrated security panels

Specifications

  • Input Voltage: 16–28VAC
  • Output Voltage: 12VDC or 24VDC (selectable)
  • Maximum Current: 6A @ 12VDC
  • Number of Outputs: 1
  • Form Factor: Board mount
  • Warranty: Lifetime Limited
Expert Analysis
Specifications
Input Voltage: 16-28VAC
Max Current: 6A @ 12VDC / 10A @ 12VDC
Form Factor: Board
Output Voltage: 12/24VDC
Number of Outputs: 1
Warranty: Lifetime
Type: Power Supply
Power: 24VDC
Q&A
Reviews
Product Video

Altronix SMP7 Single Output 12/24VDC 6A Power Supply

$168.96
$159.99
Add to Cart
