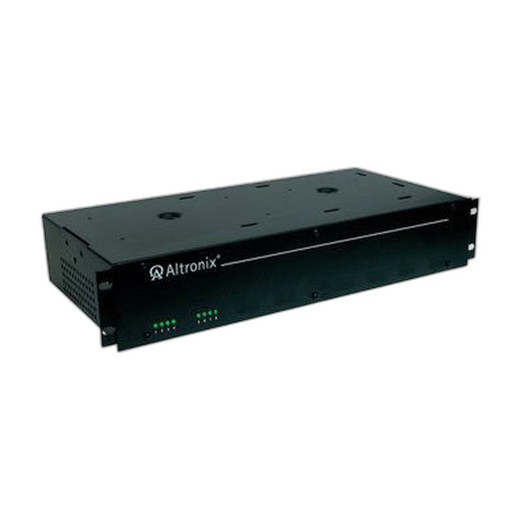

Altronix R615DC8ULCB Rack-Mount CCTV Power Supply

Overview

The Altronix R615DC8ULCB is a 2U rack-mounted CCTV power distribution unit engineered for professional security integrators and installers requiring reliable, scalable DC power delivery across multiple cameras, access control devices, and auxiliary equipment. This eight-channel power supply operates on standard 115VAC input and delivers stabilized 6–15VDC output across individual PTC-protected channels, making it ideal for mixed-voltage camera deployments and systems requiring redundant power paths. The R615DC8ULCB consolidates power management into a compact form factor suitable for equipment racks, control rooms, and distributed network video installations.

Key Features

• Eight Independent PTC-Protected Outputs: Each channel is individually protected via Positive Temperature Coefficient (PTC) polymeric fuses, preventing cascading failures if a single load shorts or exceeds current limits. Protection is self-resetting, eliminating manual fuse replacement.
• 6–15VDC Output Range: Flexible voltage regulation supports legacy analog cameras, IP cameras with integrated power modules, and 12VDC access control equipment without requiring separate buck/boost converters.
• 4A Per Channel: Each output delivers up to 4 amperes, accommodating multiple cameras per channel or higher-power auxiliary devices while maintaining individual circuit isolation.
• 115VAC Single-Phase Input: Standard North American wall power connection with industrial-grade transformer isolation and surge suppression.
• 2U Rack-Mount Enclosure: Vertical form factor integrates seamlessly into 19-inch equipment racks, reducing floor space and improving cable management in central monitoring stations and hybrid analog/IP environments.
• Individual Channel Monitoring: Discrete terminals and circuit labeling enable per-channel diagnostics without breaking the main power bus.

Integration & Compatibility

The R615DC8ULCB operates as a standalone power distribution appliance and does not require network connectivity or software configuration. Its fixed output voltage and channel independence make it well-suited for retrofits and mixed-technology camera deployments where both analog and IP devices draw power from the same supply backbone. The eight channels can be assigned to individual camera runs, split between two independent systems, or consolidated into fewer high-current loads depending on field requirements. PTC protection allows the unit to remain powered during transient faults, improving system uptime and reducing false alarm calls.

Typical Applications

• Multi-camera analog and IP surveillance systems in retail, hospitality, and enterprise environments
• Access control power distribution where doors, badge readers, and strike locks require separate 12VDC circuits
• Redundant power feeds in mission-critical monitoring stations
• Field-deployed power hubs for temporary or semi-permanent camera installations

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've specified the Altronix R615DC8ULCB on mixed-voltage surveillance projects where integrating older analog infrastructure with newer IP camera fleets demands reliable, per-channel power isolation. The eight independent PTC-protected outputs are critical in environments where equipment failures downstream cannot be permitted to cascade across the entire system. This unit delivers that assurance without introducing management overhead.

Technical Highlights:

• PTC Self-Resetting Protection: Each of the eight channels is individually guarded by a PTC element that limits current and resets automatically once the fault clears—no manual fuse replacement, no downtime for parts ordering.
• Voltage Flexibility (6–15VDC): The wide output range accommodates both legacy 12VDC analog camera arrays and newer devices that tolerate 6V to 15V rails, eliminating the need for multiple power supplies on a single job.
• Rack Density: The 2U form factor allows integration into existing NOC or server-room infrastructure, reducing cable sprawl and improving thermal management compared to benchtop or wall-mounted alternatives.

Deployment Considerations:

• Verify load calculations per channel before final termination—4A per output is sufficient for most single-camera runs, but multi-camera circuits or high-current PTZ auxiliary loads should be pre-planned.
• Stage the R615DC8ULCB centrally in a climate-controlled cabinet to minimize voltage sag over long cable runs; use appropriately gauged DC distribution cable to cameras in the field.

The R615DC8ULCB is a workhorse for system architects who need transparent, per-channel power distribution without intelligent management or network integration. Its simplicity and fault tolerance make it a baseline component in any professional security deployment.
