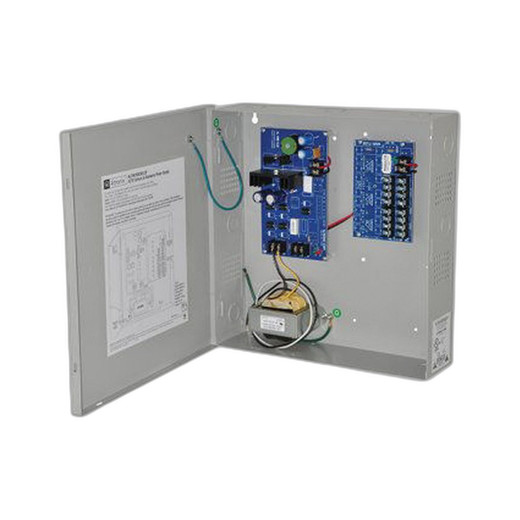

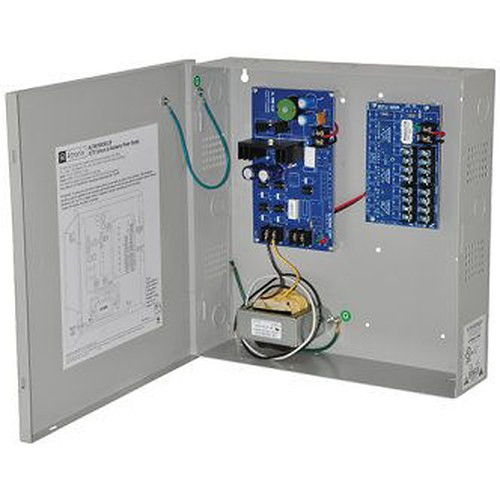

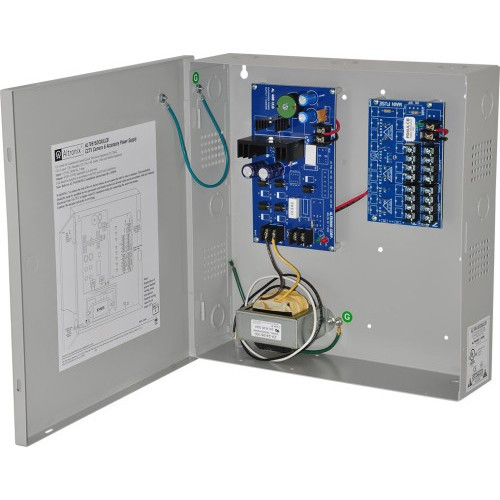

Altronix ALTV615DC8ULCB 8-Output CCTV Power Supply
The Altronix ALTV615DC8ULCB is an 8-output DC power supply engineered for mid-scale CCTV and access control installations requiring variable voltage distribution. The ALTV615DC8ULCB delivers regulated 6-15VDC power across eight independently controlled outputs, accommodating mixed-voltage camera and peripheral requirements within a single chassis. This supply is particularly suited for deployments where individual circuit isolation and per-channel current management are essential.
Key Features
- 8 independent regulated output channels with individual fusing and status indication
- Adjustable output voltage range of 6-15VDC across all channels
- Isolated power outputs for per-channel equipment protection
- Compact form factor suitable for wall or DIN-rail mounting in security equipment enclosures
- UL Listed and CE certified for North American and European deployments
- Lifetime Limited Warranty coverage
- Built-in thermal management for continuous-duty operation
- LED status indicators per channel for operational visibility
Applications
- Multi-camera CCTV systems requiring individual power circuits and isolated ground returns
- Access control reader networks with mixed 6V, 12V, and intermediate voltage devices
- Distributed security camera clusters where per-unit power monitoring is required
- Retrofit installations where existing voltage standards must be maintained across heterogeneous equipment
- Control room power distribution for coaxial-embedded and discrete-wired camera arrays
Specifications
- Output Voltage Range: 6-15VDC adjustable
- Maximum Current @ 6VDC: 4A
- Maximum Current @ 12VDC: 2A
- Output Channels: 8 isolated circuits
- Certifications: UL Listed, CE
- Warranty: Lifetime Limited Warranty
