Altronix NETWAYSP4BTWPX3 Hardened Managed Network Switch with 360W Power Supply

Overview

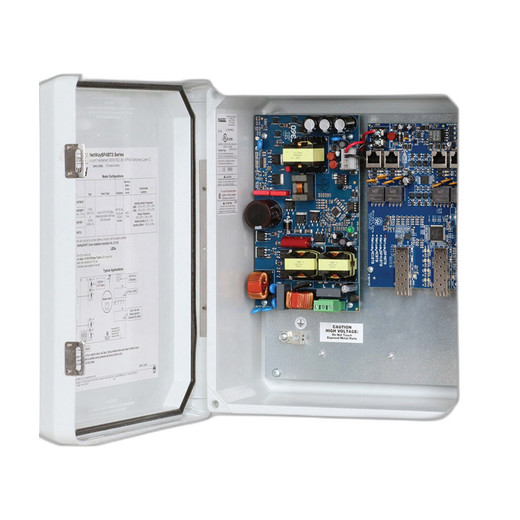

The Altronix NETWAYSP4BTWPX3 is a field-hardened, managed Ethernet switch purpose-built for outdoor security and critical infrastructure deployments. This integrated solution combines a 4-port 802.3bt High Power over Ethernet (PoE) switch with a 360W internal power supply and charger, housed in a NEMA 4/4X, IP66-rated enclosure rated for harsh environmental conditions. The NETWAYSP4BTWPX3 supports dual fiber optic SFP ports for 1G uplinks, enabling long-distance backbone connectivity while maintaining galvanic isolation. Accommodating up to four (4) 12VDC/4AH batteries, this unit provides extended runtime during primary power loss, making it suitable for continuous-duty surveillance, access control, and telemetry applications where power redundancy is critical.

Key Features

• 802.3bt High Power PoE: Four copper ports deliver up to 90W per port per IEEE 802.3bt standard, supporting power-hungry devices such as PTZ cameras, thermal imagers, and edge-mounted servers without auxiliary power drops.
• 360W Internal Power Supply: Rated 360W with integrated charger function, capable of simultaneously powering PoE outputs and charging battery backup modules.
• Dual 1G Fiber SFP Uplinks: Two fiber optic Small Form-factor Pluggable ports provide redundant 1 Gigabit backbone connections with immunity to electromagnetic interference, critical for long-distance runs and environments with high EMI.
• NEMA 4/4X IP66 Outdoor Enclosure: Sealed powder-coated steel enclosure rated for direct outdoor mounting; meets NEMA 4 and 4X environmental specifications and IP66 dust and water ingress protection.

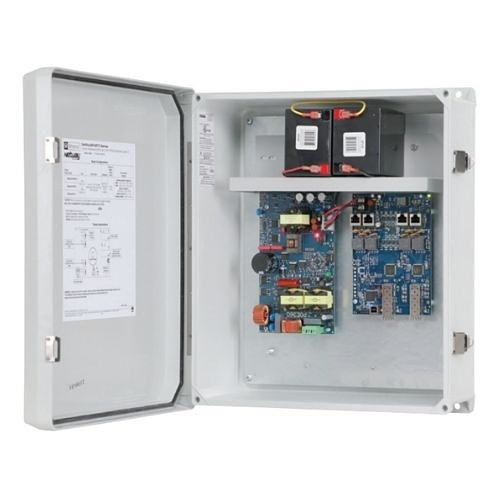

• Battery Backup Capacity: Supports four (4) 12VDC/4AH batteries (48Ah total), enabling extended runtime for critical network segments during power loss.
• Managed Switch Fabric: Full Layer 2/3 management capabilities including VLAN tagging, spanning tree, SNMP monitoring, and LLDP discovery for network visibility and segmentation in complex installations.
• Wide Operating Temperature: Engineered for deployment across North American climates and temperature extremes common in outdoor surveillance and infrastructure monitoring.
• Hot-Swap Battery Module: Designed to accept hot-swappable battery cartridges without powering down network services.

Integration & Compatibility

The NETWAYSP4BTWPX3 integrates seamlessly into hybrid fiber/copper network architectures. The dual SFP ports support standard LC connectors with single-mode or multi-mode fiber modules (sold separately), enabling backbone connectivity to distant head-end equipment. The four copper PoE ports are backward-compatible with 802.3af/at devices while supporting full 802.3bt power delivery for next-generation devices. Managed switch features include SNMP v2/v3 for integration with NOC monitoring platforms, static routing, and QoS tagging for bandwidth prioritization of video and access control traffic. The integrated charger automatically maintains battery state-of-charge under float conditions, reducing operational overhead in unattended remote locations.

Package Contents

Each shipment includes the NETWAYSP4BTWPX3 enclosure with integrated switch and 360W power supply, mounting hardware, and user documentation. Battery modules are ordered separately and ship as individual line items.

Eden Phillips

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

During recent deployment planning for a regional surveillance backbone, I evaluated the Altronix NETWAYSP4BTWPX3 as the core distribution node for a multi-site fiber-linked network. The combination of 802.3bt PoE capacity with onboard battery redundancy and fiber uplinks addresses a genuine gap in outdoor switch offerings: the need for power autonomy without external UPS complexity.

Technical Highlights:

• 360W Power Budget with Charger: The integrated power supply eliminates the need for separate AC-UPS or external chargers in remote cabinets. Running four 90W PoE ports plus battery charging is uncommon in field-hardened designs.
• Dual Fiber SFP: Two independent fiber ports enable true redundancy—primary and backup backbone connections with full galvanic isolation from copper network segments, reducing ground loop issues in installations with mixed infrastructure.
• Battery Autonomy: Four 12VDC/4AH slots (48Ah total) provide realistic runtime for critical segments during extended outages. Sizing depends on load, but a four-camera PoE draw typically yields 4–6 hours of operation.

Deployment Considerations:

• Verify your fiber SFP transceiver type (single-mode vs. multi-mode) before installation; SFPs are NOT included and must match your backbone infrastructure.
• In high-humidity coastal or industrial environments, plan quarterly enclosure drain plug maintenance to prevent condensation accumulation inside the IP66 housing.
• The managed switch feature set (VLAN, SNMP, QoS) requires initial configuration; do not rely on plug-and-play default settings for production networks requiring bandwidth isolation or traffic shaping.

The NETWAYSP4BTWPX3 is a solid choice for integrators building resilient outdoor networks where commercial power is unreliable and fiber backbone connectivity is non-negotiable. The 360W supply and battery bay eliminate single points of failure that plague cheaper consumer-grade switches. Plan your SFP inventory carefully and budget time for managed switch configuration.
