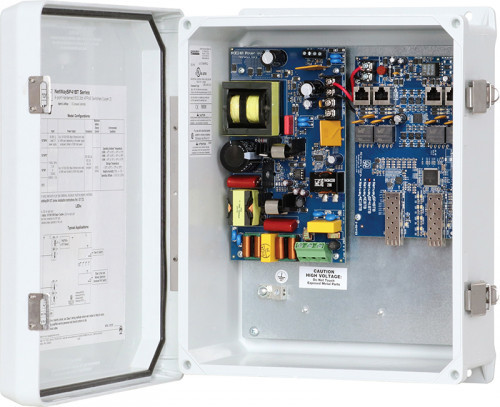

Altronix NETWAYSP41BTWP 4-Port Hardened Managed Fiber Switch with PoE+
Overview
The Altronix NETWAYSP41BTWP is a ruggedized 4-port managed Ethernet switch purpose-built for remote outdoor deployments requiring high-powered PoE capability and extended fiber connectivity. This hardened switch combines four 802.3bt-compliant Gigabit Ethernet ports with two 1Gb SFP fiber ports, delivering 90W per port (240W total) to support the latest generation of high-demand IP security devices, access control systems, and remote communications equipment in challenging environments.
Engineered for field deployment, the NETWAYSP41BTWP board integrates AC/DC power conversion (115VAC 60Hz or 230VAC 50/60Hz input), onboard battery charging capability, and integrated surge protection—eliminating the need for separate ancillary components in typical security system architectures.
Key Features
- Four PoE+ Ports: IEEE 802.3bt compliant with 90W per port and 240W total power budget; backward compatible with 802.3af (15W) and 802.3at (30W) devices
- Dual Fiber Connectivity: Two Gigabit SFP ports support single-mode and multi-mode fiber cable for long-distance data transmission from NetWay Spectrum head-end media converters
- Managed Switching: Four 10/100/1000 Mbps Ethernet ports with RJ45 connectivity, auto-crossover detection, half/full duplex, and auto-negotiation
- AC Power Input: 115VAC 60Hz (1.8A) or 230VAC 50/60Hz (1.0A) with 5A/250V fusing; integral surge protection on all ports
- Battery Charging Circuit: 24VDC charging circuit for LiFePO4 (Lithium Iron Phosphate), sealed lead acid, or gel-type batteries (sold separately); instantaneous failover to battery backup upon AC loss
- Comprehensive LED Indicators: Individual PoE On LEDs per port, individual Link Status and speed indication (10/100/1000 Base-T) LEDs, ALOS LED for fiber connection status, and Heartbeat LED for operational status
- Wide Operating Temperature Range: -40°C to 55°C at 240W, -40°C to 65°C at 180W load, -40°C to 75°C at 150W load; storage rated -40°C to 85°C
- Humidity Rated: 85% +/- 5% relative humidity; approximately 122 BTU/Hr thermal dissipation
- Board Form Factor: Compact board-only design for integration into customer-specified outdoor enclosures or OEM systems
- CE Approved: Meets CE marking requirements for European market deployment
- Lifetime Limited Warranty: Backed by Altronix lifetime limited warranty coverage
Integration & Deployment Considerations
The NETWAYSP41BTWP is designed for integration into NEMA 4/4X, IP66-rated outdoor enclosures where it functions as both a managed switching fabric and integrated power supply/charger. Its dual SFP fiber ports enable long-distance connectivity from centralized head-end equipment, while its four PoE+ ports support simultaneous deployment of four high-power IP cameras, access readers, emergency communication endpoints, or other 802.3bt-class devices at remote sites.
The integrated 24VDC battery charging circuit accepts LiFePO4, sealed lead acid, or gel batteries (up to four 12VDC/4AH units in typical configurations) to enable uninterrupted operation during AC power loss. LED status indicators provide real-time visibility into PoE delivery, link integrity, fiber connectivity, and device health—critical for field troubleshooting and maintenance planning.
Temperature derating applies based on total power draw: systems operating at 240W maximum power are rated to -40°C to 55°C, while lower-load deployments achieve higher temperature ceilings. This specification allows integrators to plan installations in desert, arctic, and coastal environments without thermal re-rating.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've specified the Altronix NETWAYSP41BTWP in several remote critical infrastructure deployments over the past two years. This is a genuinely purpose-built device that solves a real problem: combining managed switching, high-power PoE delivery, fiber long-haul connectivity, and integrated battery charging in a single board-only module significantly reduces BOM complexity and system footprint compared to stacking discrete components.
Technical Highlights:
- Per-Port Power Delivery: The 90W per-port 802.3bt compliance is a material differentiator. You can deploy four full-power PTZ cameras, four high-draw access readers, or mixed workloads without port-to-port load-sharing concerns. The 240W total budget is honest engineering—no marketing inflating headline watts.
- Fiber Ports as Standard: Dual SFP Gigabit ports eliminate the need for external media converters in most remote deployments. Multi-mode and single-mode support means you're not locked into one fiber strategy. I've used this in 2km+ runs from a central NOC.
- Battery Integration: The 24VDC charging circuit is a practical touch. Customers typically mount this board in a NEMA 4X box with four 12V/4Ah LiFePO4 cells in series for 48V nominal, or parallel pairs for 12V high-capacity backup. Instantaneous failover timing is good—no power blink to IP devices.
Deployment Considerations:
- This is a board-only product. You must specify an appropriate outdoor enclosure (NEMA 4/4X minimum for security work) and handle thermal management planning. At 122 BTU/Hr, passive convection works in most climates, but confirm temperature derating against your worst-case power load scenario before order.
- LED indicators are your troubleshooting lifeline in the field. Familiarize your team with the heartbeat, link status, and PoE On indicators before deployment. A non-functional ALOS LED, for example, tells you the SFP fiber interface is down—critical diagnostic data without a serial console.
- Verify battery chemistry compatibility before installation. LiFePO4 batteries deliver better cycle life and temperature stability than sealed lead acid in remote outdoor sites. Budget for a properly ventilated battery enclosure if you're using lead-acid cells.
The NETWAYSP41BTWP is genuinely reliable infrastructure-grade switching with realistic power budgets and practical fiber support. If you're building a remote PoE+ system with fiber backbone requirements, this board earns serious consideration.
