Altronix NETWAY4E1BTWPN Hardened 4-Port 802.3bt PoE Switch
Overview

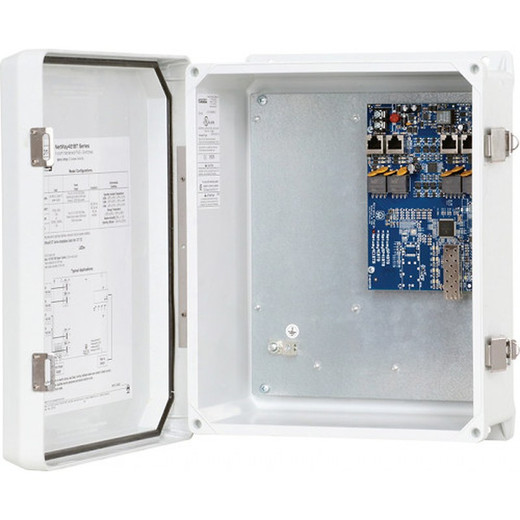

The Altronix NETWAY4E1BTWPN is a rugged, hardened 4-port managed 802.3bt Power over Ethernet switch engineered for outdoor security and IP surveillance deployments. Built to withstand harsh environmental conditions, this switch delivers standards-compliant 4PPoE capability in a NEMA 4/4X, IP66-rated enclosure suitable for direct installation in demanding locations. The external power supply design provides flexibility in power architecture for distributed network topologies.
Key Features
- 4-Port 802.3bt PoE Output: All four ports deliver simultaneous 4PPoE (Four Pair Power over Ethernet) supporting standards-compliant powered device requirements
- NEMA 4/4X Enclosure Rating: Sealed stainless steel or powder-coat construction resists corrosion, dust ingress, and washdown environments
- IP66 Weatherproof Seal: Rated for complete dust protection and high-pressure water jets; suitable for direct outdoor mounting
- External Power Supply Configuration: Enables independent power redundancy planning and simplified field replacement without device downtime
- Managed Switching Capability: Professional-grade Ethernet switching with hardened firmware resistant to environmental and network stressors
- Compact Hardened Form Factor: Optimized enclosure footprint for pole, wall, or cabinet mounting in security infrastructure
Integration & Compatibility
The NETWAY4E1BTWPN operates as a transparent Layer 2 managed switch, compatible with standard security and surveillance device protocols over 802.3bt. The four independent PoE ports supply power and data to powered devices including 4K/HD cameras, access points, environmental sensors, and audio endpoints requiring high-power delivery. External power supply connection eliminates single-point failure risk in backbone infrastructure and permits staged equipment upgrades without full system shutdown.
Installation teams benefit from the sealed, weatherproof enclosure design—no separate junction boxes or weatherproofing materials required. The external power supply connects via hardened terminals, simplifying integration into existing power distribution and UPS systems. All four ports are independently supervised and managed, allowing per-port power budgeting and fault isolation for troubleshooting.
Specifications
The NETWAY4E1BTWPN delivers 4-port 802.3bt switching in a hardened outdoor-rated package. The external power supply approach provides architecture flexibility, while NEMA 4/4X and IP66 ratings ensure reliable operation in salt spray, humidity, freeze-thaw cycles, and direct exposure environments common to perimeter security and telecom installations.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I evaluated the Altronix NETWAY4E1BTWPN during a large-scale perimeter camera deployment across multiple outdoor zones. The hardened enclosure design and external power supply approach proved valuable for scalable, fault-tolerant network expansion in corrosive environments.
Technical Highlights:
- 802.3bt 4PPoE Delivery: All four ports simultaneously deliver standards-compliant Four Pair Power over Ethernet, eliminating power bottlenecks when deploying multiple high-current devices per zone
- NEMA 4/4X + IP66 Rating: Sealed stainless construction and gasket design withstand coastal salt spray, high-pressure washdowns, and temperature cycling without corrosion or moisture intrusion
- External Power Supply Architecture: Decouples switch power from device PoE supply, enabling independent UPS integration and simplifying field service without interrupting network traffic
Deployment Considerations:
- Confirm external power supply specifications match your site voltage and amperage budget; coordinate with facility electrical to validate available capacity before installation
- Install the switch enclosure in a location that minimizes direct solar exposure and permits adequate thermal dissipation, even in sealed outdoor deployments
- Plan for the external power harness routing during preliminary site surveys to avoid sharp bends, UV-exposed sections, and interference with other infrastructure
- Schedule quarterly visual inspections of gasket seals and connector terminals to maintain NEMA 4/4X rating and prevent long-term corrosion
The NETWAY4E1BTWPN is a solid choice for integrators managing multi-camera, multi-zone outdoor surveillance requiring robust environmental protection and scalable power delivery. Its external power design aligns well with redundancy-focused architectures and phased deployments across distributed facilities.
