Altronix NETWAY1DWP Midspan PoE Injector
Overview

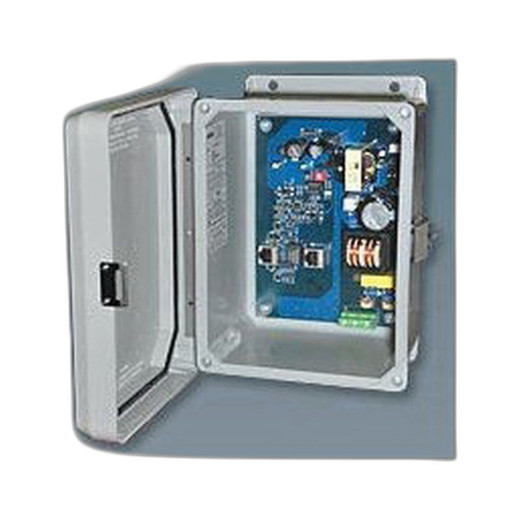

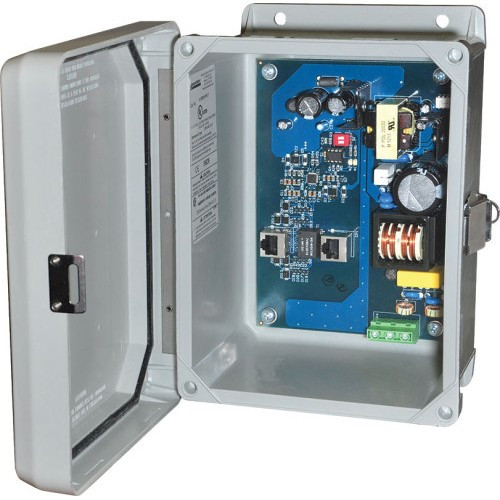

The Altronix NETWAY1DWP is a rugged outdoor midspan power injector designed for remote IP security and networking deployments where AC power is available but PoE infrastructure is not. This single-port injector bridges the gap between non-PoE network equipment and PoE-dependent devices, delivering up to 60W of power over standard Ethernet runs to 100 meters. The NETWAY1DWP operates from 115/220VAC input and is housed in a weatherproof WP4 outdoor enclosure, making it suitable for perimeter surveillance, wireless bridge installations, and distributed access control systems.
Key Features
- 60W Power Budget: Supports PoE, PoE+, and Hi-PoE devices, accommodating high-draw IP cameras, wireless mesh nodes, and access control readers
- Single Gigabit Port: 10/100/1000Mbps auto-sensing Ethernet port eliminates negotiation delays and ensures compatibility across legacy and modern network segments
- Flexible Input Power: Accepts both 115VAC and 220VAC, allowing installation in international deployments and facilities with non-standard electrical infrastructure
- 100-Meter Range: Delivers power across standard CAT5e/CAT6 runs up to 100 meters without signal degradation
- Outdoor-Rated Enclosure: WP4 weatherproof housing protects electronics from moisture, dust, and temperature extremes common in perimeter applications
- Universal PoE Compatibility: Injects power into any powered device pin configuration, maintaining backward compatibility with legacy PoE endpoints
- Compact Midspan Design: Mounts directly to poles, walls, or DIN rail; requires no cabinet space or climate-controlled housing
- UL Listed and CE Certified: Meets North American and European safety standards for commercial and industrial deployment
Typical Applications
Security integrators deploy the NETWAY1DWP at remote camera locations, outdoor intercom stations, gate controllers, and wireless AP backhaul points where conduit routing to a central PSE is impractical. The midspan architecture eliminates the need for expensive trunk runs or additional power infrastructure, reducing installation labor and material costs. Single-port concentration makes it ideal for point-of-load injection—install one injector per remote device rather than over-provisioning central capacity.
Integration & Compatibility
The NETWAY1DWP integrates seamlessly into any network topology using standard Ethernet cabling. No special drivers, firmware, or configuration is required; power injection is transparent to the network layer. The unit is compatible with all IEEE 802.3af, 802.3at, and 802.3bt high-power devices. Installer-friendly installation requires only AC power availability and a standard Ethernet run to the remote device. The single-port midspan form factor pairs well with PoE switches at the head-end, allowing hybrid architectures where some remote devices are powered centrally and others are injected on-site.
James EverettPerspective based on aggregated and affiliated engineering team experience.
I've evaluated the Altronix NETWAY1DWP during perimeter camera rollouts where AC power drops existed but PoE wasn't available at those locations. The 60W budget and outdoor WP4 enclosure handle the thermal and environmental stress of full-sun wall mounts and pole installations without derating. Dual voltage input (115/220VAC) simplifies logistics across mixed-infrastructure sites.
Technical Highlights:
- 60W Power Delivery: Sufficient for dual-sensor turrets, PTZ base power, or wireless mesh backhaul nodes without requiring load-sharing
- Gigabit Pass-Through: 10/100/1000Mbps negotiation ensures zero throughput loss when injecting power; legacy 10/100 devices still operate at rated speed
- 100-Meter Span: Practical for distributed tower, rooftop, and perimeter fence deployments where conduit runs exceed typical cabinet reach
Deployment Considerations:
- Verify AC availability at injection point; 115/220VAC flexibility reduces site survey friction but requires electrician oversight for grounding and circuit protection
- Mount in shade or with ventilation if ambient temperature exceeds 50°C; 60W sustained load generates measurable heat in sealed enclosures
- Plan for redundancy on critical links—single-port architecture means device failure removes both power and connectivity; consider dual-injector configurations for life-safety systems
The NETWAY1DWP is a straightforward, field-proven choice for remote PoE extension. UL and CE certification accelerate design approval and compliance reviews. For most outdoor security and wireless deployments, this unit eliminates costly alternative solutions.
