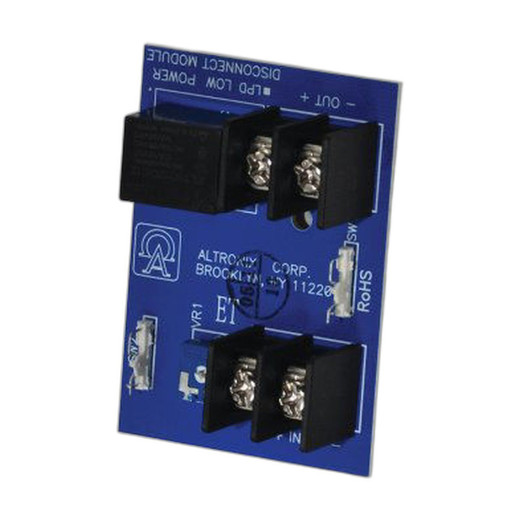

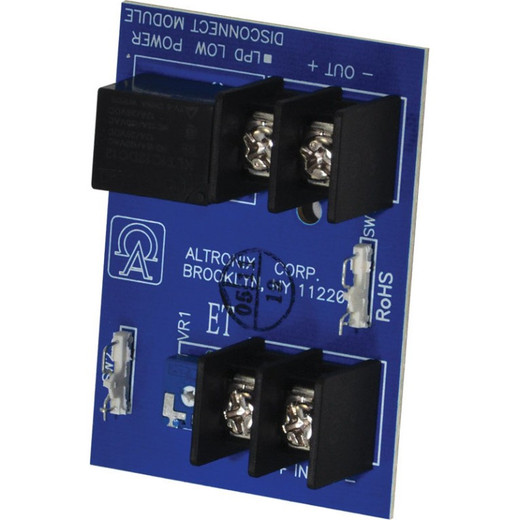

Altronix LPD Low Power Disconnect Module
The Altronix LPD is a low power disconnect module engineered for distributed power architectures in security infrastructure where voltage instability or supply degradation poses a risk to connected equipment. The LPD automatically disconnects loads when input voltage falls below operational thresholds, preventing cascading failures, data corruption, or unsafe equipment states. This is critical in remote or unstable power environments—brownouts or sag conditions can damage access control readers, lock actuators, and detection sensors faster than a full power failure would. The LPD intervenes before that damage occurs.
Key Features
- Dual voltage support (12VDC and 24VDC): Accommodates both legacy and modern security systems without requiring separate modules. Reduces spare parts inventory and simplifies field logistics.
- Automatic low power disconnect: Disconnects loads when voltage drops below minimum operating threshold, preventing equipment malfunction or data loss during power sag events. Protects downstream devices without manual intervention or alarm system logic.
- Voltage booster technology: Actively conditions supply voltage to maintain stable delivery to connected loads, reducing the impact of wire-run voltage drop over long cable runs (common in gate operators, remote door locks, and distributed access readers). Particularly valuable when power infrastructure was not originally sized for modern microprocessor-based security devices.
- Compact modular form factor: Integrates into existing power distribution panels, cabinet racks, and field-mounted enclosures without major layout redesign. Does not consume significant shelf space or require separate mounting infrastructure.
- Industrial-grade reliability: Built for continuous 24/7 operation in security installations where downtime directly impacts access control, gate operation, or intrusion detection. Rated for extended operating life in non-climate-controlled or variable-temperature environments (typical for remote gatehouse, warehouse, or industrial perimeter applications).
- Lifetime Limited Warranty: Manufacturer-backed coverage provides long-term protection on hardware defect, reducing total cost of ownership for distributed security installations where field service calls are expensive.
Deployment Context
The LPD addresses a specific but common failure mode in security infrastructure: voltage degradation without complete power loss. Long wire runs to remote equipment, undersized power supplies, or aging facility electrical infrastructure can create conditions where voltage sags below safe operating ranges without triggering a full power-loss alarm. Access control readers may become unresponsive, door strike locks may fail to release, or gate operators may behave unpredictably. The LPD intercepts this degraded state and cleanly disconnects the affected load, allowing the upstream power source to stabilize before reconnection—much cleaner than allowing equipment to operate in an unsafe voltage regime.
Common applications include access control systems with distributed readers in remote locations, video surveillance installations requiring backup power coordination, intrusion detection panels needing graceful shutdown logic, gate operators in unstable power environments, and electric door lock circuits in older buildings where power infrastructure cannot be easily upgraded.
The module is particularly useful in warehouse automation, outdoor perimeter security, and remote facility deployments where electrical infrastructure is mature but not redundant, and where replacing aging power distribution is not cost-effective in the near term.
Integration and Compatibility
The LPD integrates directly into 12VDC and 24VDC security power distribution architectures. No special configuration is required—it operates as a passive protection device. Compatible with standard DIN-rail or panel-mount installations commonly found in access control panels, surveillance power supplies, and gate operator control systems. Consult the product datasheet for load capacity, exact voltage threshold settings, and wiring terminal specifications before final integration.
FAQ
Q: What voltage thresholds trigger the LPD disconnect?
A: The LPD monitors input voltage and disconnects loads when voltage drops below minimum operating thresholds for 12VDC and 24VDC applications. Exact threshold values are documented in the manufacturer datasheet. These thresholds are calibrated to protect downstream equipment without nuisance disconnections due to minor sag.
Q: Can the LPD be used in systems with battery backup or UPS?
A: Yes. The LPD works in parallel with backup power systems. It protects against voltage sag from the primary supply; battery systems provide load power after disconnect. Coordinate timing with UPS switchover logic to avoid conflicting disconnect/reconnect cycles.
Q: Is the LPD suitable for high-current applications like electrified door strikes or gate motors?
A: The LPD is rated for specific load capacities. Verify maximum current handling in the datasheet before applying to high-inrush loads such as solenoid strikes or motor-driven gates. Undersized power supplies combined with marginal voltage conditions may exceed the module's capacity.
Q: Does the LPD require any special programming or configuration?
A: No. The LPD is a passive protection device. It operates automatically—no software, firmware, or logic configuration needed. Install and connect to the power line as specified in installation instructions.
Q: What is the expected lifespan of the LPD?
A: The LPD is rated for continuous 24/7 operation and is covered under Altronix's Lifetime Limited Warranty. Expected field life depends on operating temperature, cycle frequency, and load conditions. The device contains no user-replaceable components.
Q: Can multiple LPD units be stacked or cascaded in a single system?
A: Multiple LPD modules can be deployed in a distributed architecture to protect different branches of a power tree (e.g., separate modules for access control circuits, camera circuits, and perimeter sensor circuits). Each module operates independently and does not interfere with others.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Altronix LPD solves a problem that doesn't show up in typical power audits: voltage sag in the distribution tail. You size your main supply correctly, but by the time 24VDC reaches a gate operator or access reader 300 feet down a run of 18 AWG wire, you're sitting at 18 volts or worse. Equipment stays powered but behaves erratically. The LPD catches that degradation and cuts the load cleanly, forcing a reset cycle without equipment damage. Straightforward protection for messy real-world power environments.
Technical Highlights:
- Dual 12/24VDC operation: Single module handles legacy 12V and modern 24V infrastructure without requiring separate stock or field substitution. Reduces logistics overhead in multi-site deployments.
- Voltage booster conditioning: Actively stabilizes supply voltage across long cable runs where passive voltage drop would otherwise degrade performance. Extends the effective reach of undersized or aged power distribution without infrastructure replacement.
- Automatic threshold disconnect: Monitors continuously; disconnects only when voltage actually falls below safe operating range. No false trips from minor supply ripple or momentary transients—threshold tuning is built in at the factory.
- Lifetime Limited Warranty: Covers hardware defect across the entire service life. Eliminates planned replacement expense and reduces total cost of ownership in distributed remote installations where service calls are expensive.
Deployment Considerations:
- Verify load capacity rating before connecting high-inrush devices (solenoid door strikes, motor gate operators). Undersized supplies combined with the LPD's protection threshold can result in nuisance disconnections if the load itself is marginal.
- The LPD is passive—no firmware updates, no configuration screens. This is an advantage for set-and-forget stability, but means you cannot adjust thresholds in the field. If your application requires custom voltage thresholds, confirm factory settings match your equipment first.
- In backup power architectures (UPS, batteries), coordinate the LPD's disconnect timing with your UPS switchover logic. If the primary supply fails, the LPD will disconnect, then the UPS takes over. Ensure your UPS can accept the load without overload or race conditions.
The LPD is the right choice for warehouse access control, perimeter gate systems, and remote intrusion detection sites where power infrastructure is stable but aging, and where equipment replacement is not planned soon. It buys time, prevents cascading failures, and keeps distributed devices behaving predictably despite marginal power delivery—particularly in industrial and outdoor perimeter deployments where you cannot easily rewire the entire facility.
