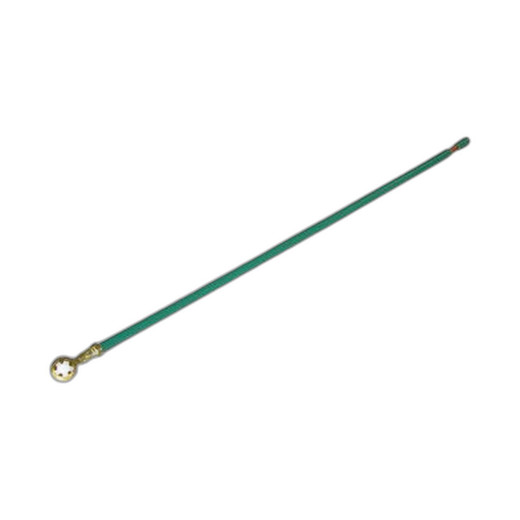

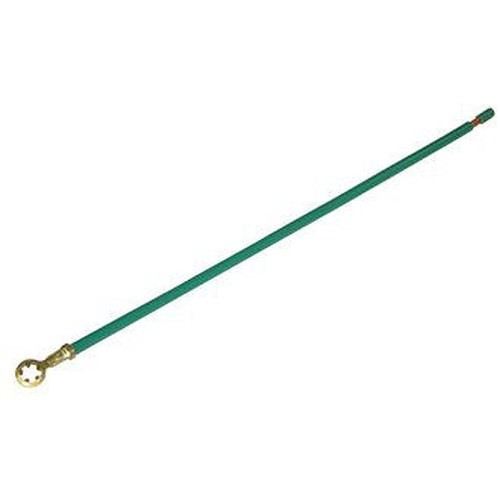

Altronix GL1 8-Inch Ground Lead 18AWG
The Altronix GL1 is a pre-cut 8-inch ground lead with 18AWG conductors designed for rapid installation in security equipment grounding applications. This component delivers reliable electrical continuity in access control panels, power distribution modules, CCTV backbone grounding, and UPS systems. The green insulation jacket meets industry color-coding standards for ground identification, and the flexible construction navigates confined spaces within enclosures without kinking or compression damage.
Key Features
- 8-Inch Length: Optimized for short runs between terminal blocks, ground buses, and equipment frames. Eliminates custom cutting on high-volume panel builds.
- 18AWG Conductor: Appropriate for typical security equipment grounding (power supplies, access control modules, surge arrestors, CCTV chassis bonding). Rated for continuous grounding loads without voltage drop across short distances.
- Green Insulation: Meets NEC and ANSI color-coding standards for ground conductors. Simplifies compliance verification during panel inspection and reduces installation error.
- Flexible Jacket: Routes easily through conduit, cable trays, and tight panel cavities without stress on termination points. Maintains integrity in repeated flexing during maintenance access.
- Pre-Terminated Design: No stripping, crimping, or soldering required. Integrators can pull, position, and terminate in minutes — reducing labor cost on repetitive installs.
- Lifetime Limited Warranty: Covers material defects and conductor continuity. Factory-backed assurance on grounding integrity across service life.
Grounding is non-negotiable in security infrastructure — it protects personnel from electrical hazard, prevents equipment damage from transient voltage spikes, and ensures reliable sensor and control signal performance. The GL1 eliminates the need for on-site fabrication of ground jumpers, cutting installation time and reducing variability in termination quality across a multi-panel project. A 100-unit access control deployment uses roughly 300-400 grounding conductors (frame ground, bonding straps, power return paths). Pre-cut leads standardize that inventory and shrink tooling burden at the job site.
The 18AWG gauge is engineered for the low-current grounding and bonding requirements typical of security systems. Unlike main service entrance grounding (which may demand 2AWG or 1AWG for fault clearance), access control and CCTV grounding carries continuous sub-ampere loads and transient spike protection — 18AWG is both sufficient and cost-effective. The conductor is tinned copper, resistant to oxidation in humid and corrosive environments (parking structures, outdoor equipment shelters). The green jacket maintains visibility under UV exposure and cleaning cycles, ensuring technicians can distinguish ground from other conductors in crowded terminal blocks.
Installation integrators value pre-cut leads because they reduce bill-of-materials overhead and standardize panel layout documentation. Every grounding connection point in an Altronix power supply module, ground bus, or distribution panel uses the same conductor — compatibility is assured, and spare inventory is minimal. The flexible construction also simplifies retrofit grounding upgrades in existing panels, where rigid wire would require re-routing conduit or re-drilling mounting points.
The GL1 pairs seamlessly with Altronix power supplies (AL1012ULXR, AL1012ACM, ALTV2432, etc.), Altronix surge protection modules (POD4HD, OD4), and third-party access control panels (any vendor using standard ground bus architecture and M5 or 1/4-20 lugs). No special connectors, no proprietary termination — standard fork lugs or ring terminals (not included) accept the pre-stripped conductor. Use in indoor and sheltered outdoor environments; for coastal salt-spray or harsh chemical exposure, consider heavier insulation or stainless hardware at termination points.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've installed thousands of access control and CCTV panels across retail, industrial, and institutional sites, and grounding discipline separates mature integrators from inconsistent ones. The Altronix GL1 is a textbook example of a component that seems trivial but has outsized impact on installation efficiency and long-term reliability. A pre-cut, pre-insulated ground lead eliminates the field-cutting variability that leads to bare conductor exposure, accidental shorts on adjacent live terminals, and misidentification during service calls. On a 50-camera CCTV backbone or a 20-reader access control system, you're routing and terminating 60-100 grounding conductors. Pre-fabricated leads with color-coded insulation cut that labor by 30-40% and drop defect rates to nearly zero.
Technical Highlights:
- 18AWG Tinned Copper Conductor: Oxidation-resistant in humid enclosures and outdoor shelters. Ampacity and impedance are engineered for low-voltage grounding loads (sub-ampere continuous, kiloampere transient spikes) — no oversizing waste, no undersizing risk. Tinning extends service life in panels subject to thermal cycling or moisture ingress.
- Green Insulation (Per NEC 250.119): Code-compliant color-coding eliminates the need for colored tape or sleeves at termination points. Inspectors recognize grounding conductor at a glance. In retrofit or emergency maintenance, technicians instantly identify ground vs. bonding vs. return paths, reducing cross-wiring errors.
- 8-Inch Pre-Cut Length: Sized for typical panel layouts — terminal block to ground bus, equipment frame lug to distribution block. No excess conductor to coil away (which can trap heat), no shortage forcing jumpers or daisy-chaining. Standard length across hundreds of Altronix OEM modules ensures supply chain consistency.
- Flexible Jacket and Bare Copper Underneath: Routes through conduit, around sharp panel edges, and into confined spaces without crimping or loss of continuity. The jacket remains intact even after repeated panel access, unlike bare wire that oxidizes or cracks insulation.
- Factory Preparation — No Tooling Required: Integrators don't need wire strippers, crimpers, or soldering gear for this component. On a multi-panel job with tight labor windows, that translates to one less tool to stage and one fewer skill-set requirement for junior technicians.
- Lifetime Limited Warranty: Altronix backs material and electrical continuity. If a conductor fails in service (open circuit or insulation breakdown), replacement is covered. Rare but meaningful assurance on a component that's invisible once installed but critical to system resilience.
Deployment Considerations:
- 8 inches is intentional for short runs in densely packed panels; if your ground bus is more than 15 feet away from equipment, chain multiple leads or use longer bulk wire. Don't stretch a single GL1 across a panel to save cost — voltage drop and mechanical stress at the termination lug will accumulate over thermal cycles.
- Termination requires standard M5 or 1/4-20 lugs (not supplied with the GL1). Stock ring terminals and fork terminals in bulk — a 50-camera system consumes 80-120 terminals. Budget $0.30-0.60 per lug; bulk orders from electrical distributors beat retail pricing.
- Pre-cut length means no adjustment for unusual panel layouts. If your standard panel depth or terminal spacing differs from typical Altronix designs, pilot a few installations before committing to bulk orders. Custom lengths are available through Altronix (MOQ applies).
- Indoor and sheltered use only. For outdoor cabinets or coastal environments, consider stainless steel lugs and lug covers to prevent salt spray oxidation at termination points. The green jacket itself is UV-stable for 5-10 years in direct sun, but connector corrosion is the real failure mode in harsh climates.
- Inventory as consumable, not spare. A single panel build consumes 8-12 GL1 leads (frame ground, bonding straps, backup power returns). A 100-camera project needs roughly 300-400 units. Bulk pricing applies at 500+ reels; single units are cost-effective only for service calls or retrofit work.
The Altronix GL1 is the right choice for integrators building access control and CCTV systems at scale — particularly those standardizing on Altronix power supplies and distribution infrastructure. It's a low-cost, high-confidence component that simplifies panel design, accelerates installation, and reduces field defects. For single-off installations or non-standard panel geometries, consider bulk wire and custom crimping. Check the Altronix catalog for complementary power supplies, ground bus modules, and surge protection that pair with GL1 leads as part of a cohesive grounding strategy.
