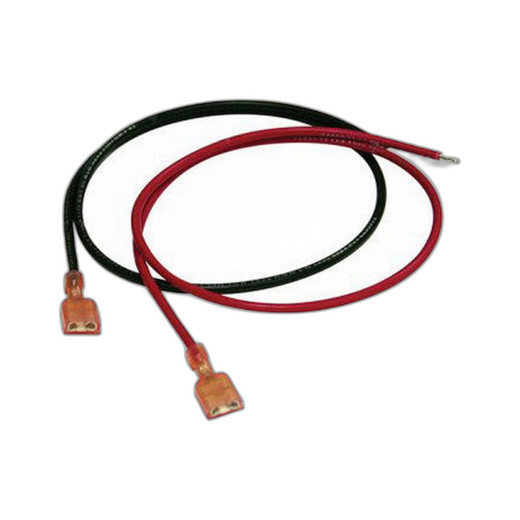

Altronix BL3 18-Inch 18AWG Battery Leads Pair
The Altronix BL3 is a matched pair of battery leads designed for interconnecting backup batteries to power distribution equipment in access control and security system enclosures. Each conductor measures 18 inches with 18AWG gauge sizing — a specification that directly affects current-carrying capacity and voltage drop over the connection run.
Overview
Battery lead quality matters in power distribution because undersized conductors generate heat losses and voltage sag under load, degrading system reliability during power failures when backup power is critical. The BL3 pairs color-coded red (positive) and black (negative) leads to eliminate polarity errors during installation — a simple detail that prevents equipment damage and speeds commissioning in busy access control environments.
The 18-inch length provides enough reach for typical enclosure layouts without forcing awkward routing or requiring spliced extensions that add resistance to the circuit. In systems deploying multiple backup power supplies or distributed battery banks, matched lead pairs ensure consistent impedance across parallel branches.
Key Features
- 18AWG conductor gauge: Sized for reliable current delivery in standard access control power supplies without excessive voltage drop — critical in systems where even 0.5V loss can reset card readers or controllers during low-battery events.
- 18-inch lead length: Long enough to span internal enclosure routing without forced bends or extensions, but short enough to minimize inductive reactance and keep resistance losses predictable across installations.
- Color-coded pair (red and black): Eliminates installation errors and reduces troubleshooting time when wiring UPS batteries or backup distribution panels — polarity reversal can destroy solid-state equipment instantly.
- Matched pair configuration: Ensures both conductors have identical gauge, length, and resistance characteristics, maintaining balanced current paths when batteries or loads are connected in parallel.
- Designed for Altronix power equipment: Compatible with Altronix battery backup supplies, door controller UPS modules, and power distribution panels used in access control, intercom, and emergency lighting systems.
- Standard battery terminal connections: Fits common ring terminals and battery post connectors found on lead-acid and lithium backup batteries in commercial security enclosures.
Integration & Compatibility
The BL3 leads are purpose-built for Altronix power supply and distribution systems, where battery interconnection is a routine installation requirement. They work with standard 24VDC and 12VDC backup battery configurations in access control panels, card reader UPS modules, and emergency power distribution racks.
Replacement lead pairs are useful when original leads are damaged, corroded, or too short for system reconfiguration — a common scenario in retrofit or expansion projects where enclosure geometry changes.
Specifications
- Conductor gauge: 18AWG (0.82 mm²), suitable for currents up to approximately 10–15A depending on run length and ambient temperature.
- Lead length: 18 inches per conductor (457 mm).
- Configuration: Matched pair — red (positive) and black (negative).
- Terminal style: Standard ring or post connections for common battery terminals.
- Warranty: Lifetime Limited Warranty covering manufacturing defects.
When to Choose a Different Approach
If your installation requires leads longer than 18 inches, consider routing through conduit with larger gauge conductors or deploying the battery closer to the load. For applications demanding higher current capacity (above 15A continuous), step up to 16AWG or thicker in the same family. If color-coding is not a requirement (e.g., in systems with detailed wiring diagrams and experienced technicians), standard unmarked leads may reduce cost.
Frequently Asked Questions
Q: Are the BL3 leads suitable for outdoor enclosures?
A: The BL3 itself is a simple conductor pair without environmental protection. If leads route outside the enclosure, they should be routed through conduit or jacketed cable to protect against UV, moisture, and physical damage.
Q: Can I use the BL3 leads for non-Altronix equipment?
A: Yes, the BL3 is a standard battery lead pair compatible with any 24VDC or 12VDC backup power system that uses ring terminals or post connectors. Altronix simply manufactures them as a replacement part.
Q: What is the voltage drop across an 18-inch BL3 lead at maximum current?
A: At 15A, 18AWG copper typically exhibits about 1.5–2 mV per foot. Over 18 inches (1.5 feet), expect roughly 2.25–3 mV drop per lead, or 4.5–6 mV for the complete circuit — negligible in most access control backup scenarios.
Q: Are the leads pre-terminated or do I need to add connectors?
A: The BL3 ships as bare 18AWG conductors. Terminal lugs or ring terminals must be crimped or soldered by the installer to match the battery and equipment connection points.
Q: Why is a matched pair important?
A: Matched conductors ensure both positive and negative paths have the same resistance. If one lead is thinner or longer, it becomes a bottleneck, increasing voltage loss and potential heat generation in the undersized path.
Q: What is the warranty on the BL3?
A: The BL3 includes a Lifetime Limited Warranty covering manufacturing defects in materials and workmanship.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Altronix BL3 is a commodity item that's easy to overlook — until you need it and don't have it on hand. A matched 18AWG pair sized for access control backup distributions is the right choice for most door controller and emergency power installations, but the engineering detail that matters is voltage drop. At 18 inches per lead, you're staying below 10 mV total circuit loss even at peak current, which keeps card readers and solenoids alive during extended power loss scenarios.
Technical Highlights:
- 18AWG conductor gauge: Handles 10–15A continuously without dangerous heat generation; at 15A over 18 inches, voltage drop stays under 6 mV total, preserving supply voltage to sensitive access controllers during backup runtime.
- Color-coded red/black: Eliminates the single most common wiring error in battery installations — reversed polarity — which destroys solid-state equipment instantly and causes hours of troubleshooting.
- Matched pair configuration: Both conductors have identical gauge and length, meaning parallel battery branches or split loads see balanced current paths and no voltage divider effects between positive and negative rails.
Deployment Considerations:
- The BL3 ships as bare conductors — you'll need to crimp ring terminals or solder lugs to match your battery post diameter and equipment connectors. This is not a plug-and-play item; allocate labor time for termination and testing.
- If your enclosure is larger than standard (e.g., a multi-door controller bank), 18 inches may force tight routing or unnecessary splices. Calculate your actual run before ordering; a splice adds resistance and is a point of failure.
Deploy the BL3 in any commercial access control, door strike, or emergency lighting backup configuration where you're running 24VDC or 12VDC from a battery bank to Altronix or compatible equipment. It's the right gauge for the current, the right length for typical cabinet depths, and the color-coding saves installation mistakes. This is one of those components where brand-matched replacement parts pay for themselves in reduced troubleshooting.
