Altronix EFLOW6NX8 Power Supply/Charger w/Fire Alarm Discon

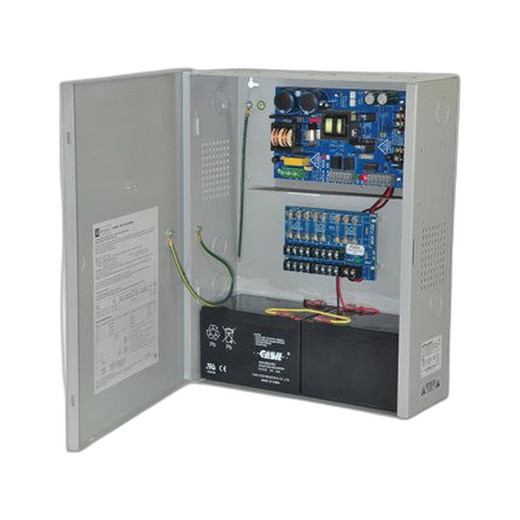

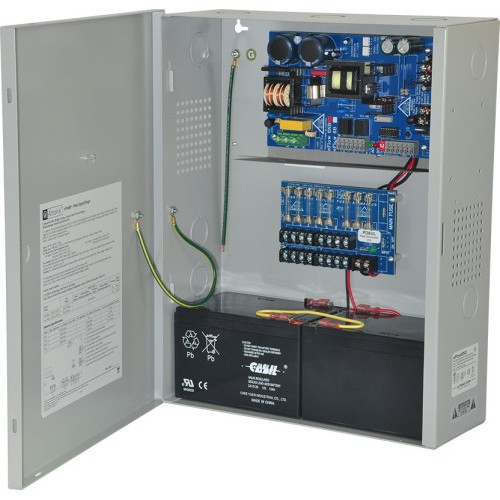

Altronix EFLOW6NX8 Power Supply/Charger with Fire Alarm Disconnect

The Altronix EFLOW6NX8 is an eight-output power supply and charger designed for access control and security systems requiring integrated battery backup and fire alarm disconnect functionality. Operating from 120VAC 60Hz input with a maximum current draw of 6A total, the EFLOW6NX8 delivers regulated 12/24VDC output across eight independent channels, making it suitable for distributed power requirements in medium-scale security deployments.

Key Features

• Eight isolated 12/24VDC outputs with individual regulation and current limiting
• Integrated battery backup charging circuit for seamless power continuity
• Fire alarm disconnect relay—automatically shuts down non-critical outputs upon alarm signal activation
• Multi-level supervision: AC fail detection, low battery warning, and battery presence monitoring
• UL Listed for assured safety and performance in commercial installations
• 6A maximum total current capacity with per-channel current management
• Lifetime limited warranty covering design and manufacturing defects

Applications

• Access control systems with battery-backed door locks and readers requiring fire life safety compliance
• Multi-door credential reader networks in commercial buildings with fire alarm integration
• Security checkpoints and gatehouse installations needing distributed 12/24VDC supplies
• Integrated systems combining access control, surveillance, and emergency power with code-required fire alarm shutdown

Specifications

• MPN: EFLOW6NX8
• Input: 120VAC 60Hz
• Output: 12/24VDC selectable
• Number of Outputs: 8
• Maximum Total Current: 6A
• Battery Backup: Yes
• Fire Alarm Disconnect: Yes
• Supervision: AC Fail, Low Battery, Battery Presence
• Certification: UL Listed
• Warranty: Lifetime Limited
