Altronix EFLOW104N8 Power Supply/Charger with Fire Alarm Disconnect

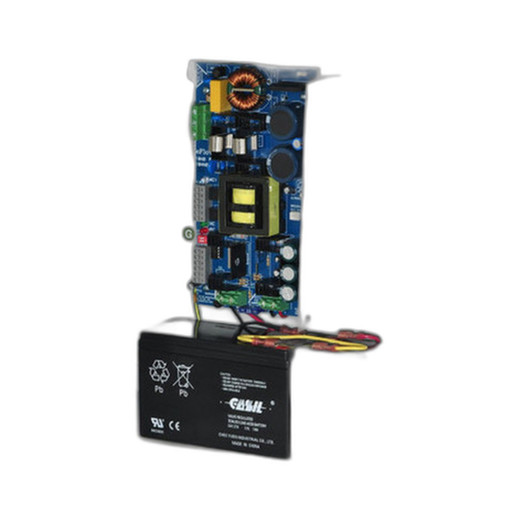

The Altronix EFLOW104N8 is a UL Listed 24VDC power supply and charger designed for security and life safety systems requiring integrated fire alarm disconnect functionality. This eight-output unit supplies up to 10A total current at 24VDC from 120VAC 60Hz input, providing both primary power and battery backup capability in a single chassis. The EFLOW104N8 addresses the critical requirement for automatic power isolation to fire alarm circuits during emergency conditions.
Key Features
- Eight isolated 24VDC outputs for independent circuit management
- Integrated fire alarm disconnect relay for automatic circuit isolation
- Battery backup capability for sustained operation during AC loss
- AC fail supervision detects mains power interruption
- Low battery and battery presence supervision for backup health monitoring
- 10A maximum total output current capacity
- UL Listed for fire alarm and security applications
- Lifetime Limited Warranty coverage
Applications
- Fire alarm system power distribution with code-required disconnect circuits
- Monitored security system power supplies with battery backup requirements
- Access control and intrusion detection system power infrastructure
- Multi-circuit power management in consolidated security installations
- Life safety system installations requiring integrated supervision and failover
Specifications
- Product Type: Power Supply/Charger
- Input Voltage: 120VAC 60Hz
- Output Voltage: 24VDC
- Maximum Current: 10A total
- Number of Outputs: 8
- Battery Backup: Yes
- Fire Alarm Disconnect: Yes
- Supervision: AC Fail, Low Battery, Battery Presence
- Approvals: UL Listed
- Warranty: Lifetime Limited Warranty
