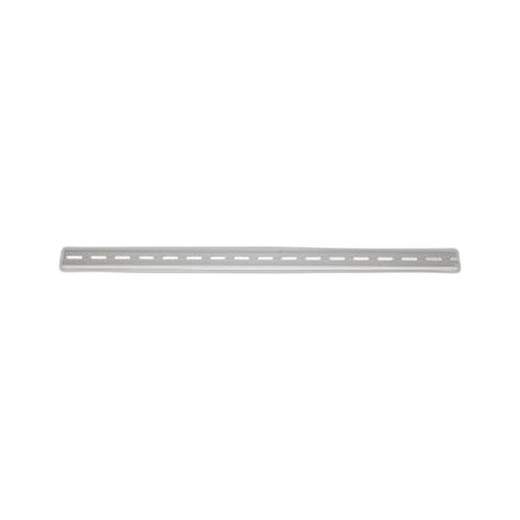

Altronix D24 24-Inch Slotted DIN Rail
Overview
The Altronix D24 is a 24-inch slotted DIN rail designed to organize and mount industry-standard DIN-compatible components within security control cabinets and equipment enclosures. This accessory eliminates ad-hoc wiring and loose component placement, reducing installation time and improving system maintainability. The D24 accepts power supplies, terminal blocks, relay modules, and other standard DIN-mount devices, making it a foundational element in distributed power infrastructure and surveillance system installations.
Key Features
- 24-inch length: Matches standard cabinet depth (19-inch 2-post and 4-post racks with 5–6 inches of cable management space), eliminating the need for custom cutting or multiple rails in typical installations.
- Slotted profile: The slot pattern allows flexible positioning of DIN-mount devices along the rail. You can space components to balance thermal dissipation, wire routing access, and cable bundle clearance without pre-drilling.
- Industry-standard DIN compatibility: Accepts any component with a standard top-hat DIN mount (EN 60715 TS 35/7.5 or EN 60715 TS 35/15), including power supplies, terminal blocks, circuit breakers, and signal conditioners.
- Durable construction: Robust steel or aluminum rail resists bending under loaded component weight and repeated mounting/unmounting cycles common in field upgrades and maintenance cycles.
- Simplified wiring and device management: Organized rail mounting reduces cross-wiring errors, shortens cable runs, and makes troubleshooting faster when field technicians need to swap a power supply or add a terminal block.
- Lifetime Limited Warranty: Covers manufacturing defects, reducing procurement risk on a passive structural component.
Integration & Compatibility
The D24 integrates with any cabinet or enclosure that accommodates standard DIN rail installation—vertical or horizontal mounting orientation. The rail pairs with Altronix power supplies and terminal blocks to build organized power distribution backplanes in network video recorder enclosures, access control panels, and multi-camera PoE switch installations. It is not application-specific; use it anywhere you need modular DIN-mount device organization.
Common Deployment Contexts
Security cabinet builds: Install the D24 vertically in a 19-inch 4-post rack alongside a managed PoE switch and Altronix power supplies to create a compact, organized edge installation serving multiple IP cameras and access readers.
Equipment enclosure retrofits: Retrofit an existing wall-mounted or pole-mounted enclosure by adding the D24 to transition loose, bundled wiring into a structured rail-mounted power distribution layout.
Distributed outdoor or industrial sites: Deploy the D24 inside NEMA 4X stainless enclosures or IP67-rated cabinets to mount redundant power supplies, surge protection devices, and terminal blocks in harsh environments.
Frequently Asked Questions
Q: Can I mount the Altronix D24 horizontally and vertically?
A: Yes. DIN rails function in any orientation. Horizontal mounting suits cabinet layouts where lateral space is available; vertical mounting maximizes depth utilization in narrow enclosures.
Q: Is the D24 pre-drilled for cabinet mounting?
A: The D24 includes mounting holes compatible with standard DIN rail brackets. Verify bracket availability for your cabinet type before ordering.
Q: What is the weight capacity of the D24?
A: Standard DIN rails typically support 40–60 lbs per rail depending on component spacing and support bracket design. Consult the installation documentation and your cabinet structural specifications to avoid overload.
Q: Does the D24 work with non-Altronix DIN-mount components?
A: Yes. The D24 accepts any standard EN 60715-compliant DIN-mount device, including terminal blocks, relays, and power supplies from other manufacturers.
Q: What is the warranty on the D24?
A: The D24 is covered by a Lifetime Limited Warranty against manufacturing defects.
Q: Do I need additional brackets or fasteners?
A: Standard DIN mounting brackets are required for cabinet installation. Verify compatibility with your cabinet model and order mounting hardware if not already supplied with your enclosure.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Altronix D24 is a straightforward structural component—not flashy, but essential when you're building a clean, serviceable cabinet layout. At 24 inches, the D24 fits naturally into standard 19-inch rack depth, allowing you to mount power supplies, terminal blocks, and signal conditioning gear in a logical, accessible arrangement. The slotted profile means you're not fighting pre-drilled holes; you position components where thermal load and cable routing actually make sense.
Technical Highlights:
- 24-inch length: Aligns with standard cabinet depth and minimizes wasted enclosure space. Reduces need for multiple rails or custom cutting in typical 19-inch 2-post and 4-post installations.
- Slotted DIN profile (EN 60715 TS 35): Compatible with any standard top-hat mount device. This vendor-neutral design keeps you from being locked into a single manufacturer's power supply or terminal block lineup.
- Lifetime Limited Warranty: A passive rail rarely fails, but the warranty transfers with the system, reducing lifecycle risk when hardware rotates through field service or resale cycles.
Deployment Considerations:
- Verify your cabinet or enclosure has vertical or horizontal space and bracket mounting points before ordering. A 24-inch rail won't fit in a 12-inch-deep wall-mounted box.
- Weight distribution matters: if you're loading the D24 with four large power supplies, ensure your cabinet frame and mounting brackets are rated for the combined load (typically 40–60 lbs per rail). Undersizing a bracket or rail can lead to flex and intermittent contact issues on terminal blocks downstream.
The D24 is the right pick for integrators building organized, maintainable edge cabinets in surveillance, access control, and industrial automation deployments. Use it in any enclosure where you need modular component mounting and clean cable runs—standard operating procedure for professional installs.
